Customized high building working self propelled mobile Hydraulic scissor lifting platform
Self-propelled hydraulic scissor lift platform can automatically fast and slow walk and turn in different work conditions,which do not need artificial traction, do not need external power supply, and move Flexibly and conveniently. It make aerial work more convenient and efficient.
Features:
1. SJY series self-propelled lift platform is two-phase of thress-phase. The control has two ways:manual and electric.
2.The control button is put on the ground pane but they can be changed onto the platform or controlled by remote controller .
3. At the moment , manual pump is equipped for the use in case power is cut off .
4. It is convenient and flexibility to aerial work . Mainly used for factory maintaining or lamp installation , fixing or house decorating or other aerial work .
Elevator configuration:
Lifting height : 4m , 6m , 8m , 10m , 12m ,14 m ,16m
load weight : 300kg , 500kg , 800kg , 1000kg
Installation guide: Installation guide fixed
Table-board Material: With 3mm pattern steel plate.
The Pumping Station: anshan pumping station (Made in Liaoning Anshan Pumping Station)
Oil Tank: high precision wearable hydraulic oil tank with double seals
Hydraulic Pipe: high pressure pipe with double expanded metal inside.
Hydraulic Oil: DTE 32 Hydraulic
power driven : the usual power supply is connection variety of 220v ,240v , 380v
supporting power: 1.5kw , 2.2kw , 3kw , 4kw
Technical specifications:
Model |
Rated load (kg) |
Raise distance (m) |
Initial height (m) |
Table size(m) |
Power supply (v) |
Motor power (kw) |
Raise time (s) |
SJG-0.5T-2.5M |
500 |
2.5 |
0.5 |
2.2*1.5 |
380 |
1.5 |
37.5 |
SJG-1T-2.5M |
1000 |
2.5 |
0.6 |
2.2*1.5 |
380 |
2.2 |
37.5 |
SJG-0.5T-3M |
500 |
3 |
0.85 |
2.2*1.5 |
380 |
1.5 |
45 |
SJG-1T-3M |
1000 |
3 |
0.96 |
2.2*1.5 |
380 |
2.2 |
45 |
SJG-2T-3M |
2000 |
3 |
1.08 |
2.2*1.5 |
380 |
3 |
45 |
SJG-3T-3M |
3000 |
3 |
1.1 |
2.2*1.5 |
380 |
3 |
45 |
SJG-4T-3M |
4000 |
3 |
1.3 |
2.2*1.5 |
380 |
4 |
45 |
SJG-5T-3M |
5000 |
3 |
1.3 |
2.2*1.5 |
380 |
4 |
45 |
SJG-0.5T-4M |
500 |
4 |
0.85 |
2.2*1.5 |
380 |
1.5 |
60 |
SJG-1T-4M |
1000 |
4 |
0.96 |
2.2*1.5 |
380 |
3 |
60 |
SJG-2T-4M |
2000 |
4 |
1.08 |
2.2*1.5 |
380 |
3 |
60 |
SJG-3T-4M |
3000 |
4 |
1.1 |
2.2*1.5 |
380 |
4 |
60 |
SJG-4T-4M |
4000 |
4 |
1.3 |
2.2*1.5 |
380 |
5.5 |
60 |
SJG-5T-4M |
5000 |
4 |
1.3 |
2.2*1.5 |
380 |
5.5 |
60 |
SJG-5T-5M |
500 |
5 |
1 |
2.2*1.5 |
380 |
2.2 |
75 |
SJG-1T-5M |
1000 |
5 |
1.1 |
2.2*1.5 |
380 |
3 |
75 |
SJG-2T-5M |
2000 |
5 |
1.25 |
2.2*1.5 |
380 |
4 |
75 |
SJG-3T-5M |
3000 |
5 |
1.5 |
2.2*1.5 |
380 |
5.5 |
75 |
SJG-4T-5M |
4000 |
5 |
1.5 |
2.2*1.5 |
380 |
5.5 |
75 |
SJG-5T-5M |
5000 |
5 |
1.5 |
2.2*1.5 |
380 |
7.5 |
75 |

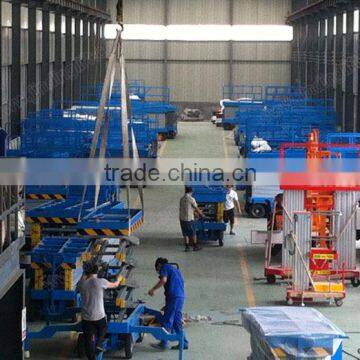

more product picture:
As an professional manufacture, we can make it according to buyer's inquirements . Our Jinding hydraulic machinery company aim to "People is first , consumer is highest , quality is first " principle , we can provide best pice and quality . Relying on four basic parameter ( lift height , load weight , table size , power).
Jinding hydraulic machinery is dedicated in designing & researching, manufacturing, sale of various aerial work platforms(AWP), including hydraulic rail lift machine, mobile elevating platform, self-propelled articulated boom lift, self-propelled telescopic boom lift, self-propelled scissor lift, mobile ramp and fixed hydraulic lifting platform etc. The company has successfully passed three management system certifications of ISO9001, ISO14001 and OHSAS 18001, and obtained the Manufacture License of Special Equipment. We sincerely welcome the customers from the world to our company for visiting and cooperation!
Contact info:
George Cheng
Office fax: 0086-531-84238336
Mobile phone: 0086-15998781378
QQ: 3320686385
Skype: gootine
Email: george@jindinglift.com
Website:
