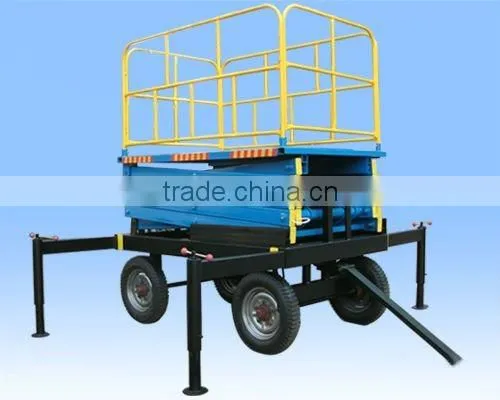

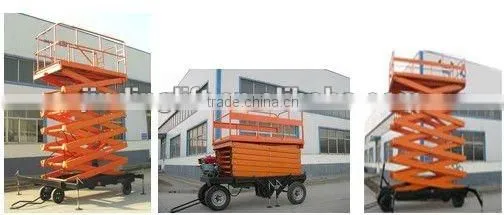

SJY Model scissor lifting table / electric control / hydraulic drive

Specifications

1.flexibly-moving platform , smooth elevation , easy operation .
2.manual or electronic control
3.manual pump is equipped

                                                       Product introduction :

feature:    SJY scissor hydraulic lift table is generally used for lifting cargo and people to working for aerial . Loading and unloading goods from ground to underground or to other floors .

 safty:   1. Electric controled but manual pump is equipped for the use in case power is cut off  .

  2. the control button can be controled on the platform or by remote controller .

  3.The voltage is 220v ,240v, 380 v for your choose .

 application : It is mainly applicable to factory , shop , buliding , decoration , museums and conference centers for lifting cargo , outdoor maintenancing, indoor decorating and so on .



  [ Technology parameters ]

MOdel	elevating height          (m)	elevating weight      (kg)	operating table  size       L x W (mm)	supporting power (kw)	overall weight (kg)
SJY03-4	4	300	1600*750	1.5	700
SJY03-6	6	300	1600*750	1.5	980
SJY05-6	6	500	1600*750	1.5	1200
SJY03-8	8	300	1820*1100	2.2	1350
SJY05-8	8	500	1820*1100	2.2	1500
SJY08-8	8	800	1820*1200	2.2	1800
SJY10-8	8	1000	1820*1200	2.2	2000
SJY03-10	10	300	2120*1210	2.2	1700
SJY05-10	10	500	2120*1210	2.2	1900
SJY08-10	10	800	2120*1210	2.2	2100
SJY10-10	10	1000	2120*1210	2.2	2400
SJY03-12	12	300	2530*1500	2.2	2600
SJY05-12	12	500	2530*1500	2.2	2800
SJY03-14	14	300	2900*1600	3	3200
SJY03-16	16	300	3150*1600	4	3800
