VRLA Battery Monitoring System for UPS

BM3000 Battery Monitor Systems

BM3000 Battery Monitoring System is our 3rd Generation product, which is for individual module level real time battery monitoring specially designed for UPS/EPS System. It will accurate and automatic measuring voltage, internal resistance and temperature of every single battery. This will provide documentary evidence on the life of each battery. Moreover, it can effective reduce the critical power failure incident and save maintenance cost..

For Lead/Acid, NiCd, NiMH and Li-Ion batteries

Avoid unnoticed or unexpected battery failures, extend the battery lifespan up to 30% and preserve the reliability of your batteries

Features.

1. 7x24 Hour Real time battery monitoring

2. Easy for installation and operation

3. Battery management and analysis software can support up to 10,000 pcs batteries.

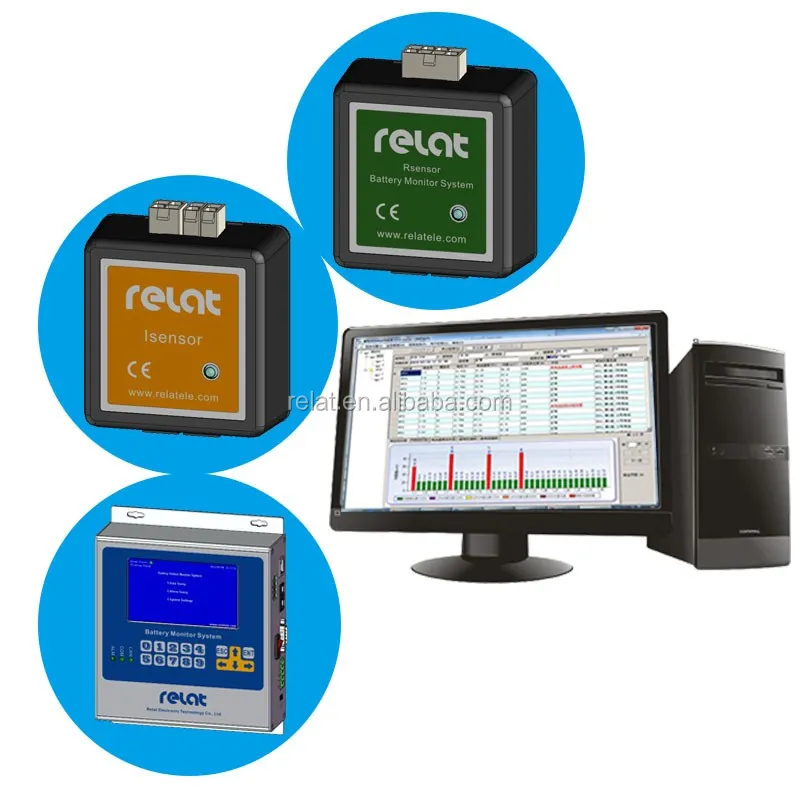

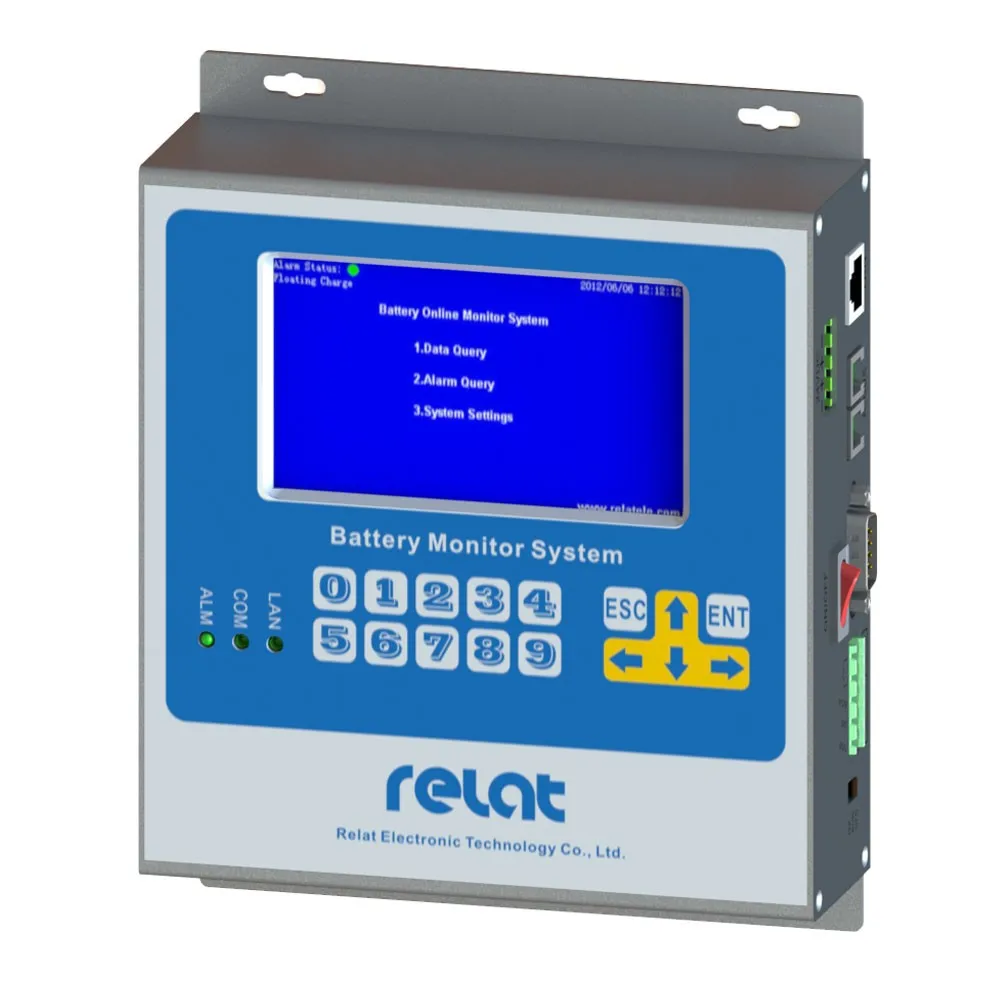

4. Control Module with 4.3 inch LCD display, visual data display & alarm buzzer

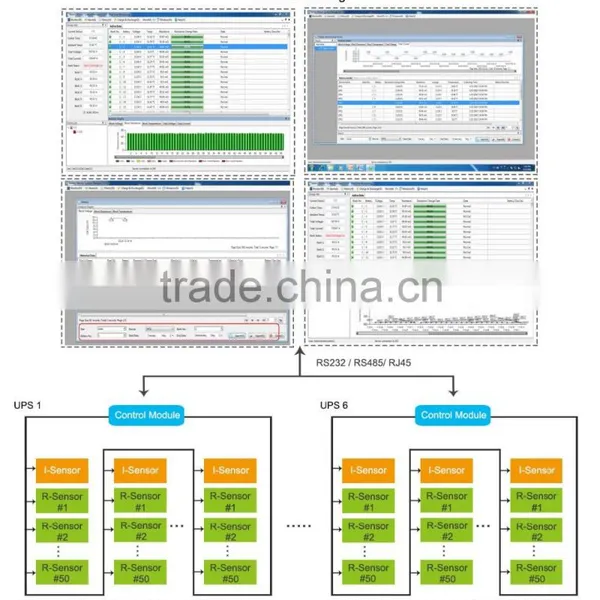

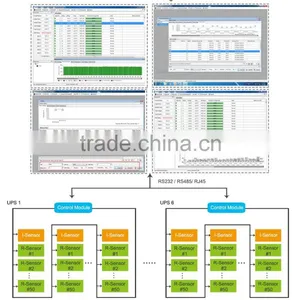

5. With LAN, RS232 & RS485 communication port

Active Data Viewing

a. Remote viewing for all connected BMS on a single or multiple PC's  via LAN.

b. Support up to 10,000 block batteries

c. Easily to find the ubnormal battery

d. Analysis and display indivual block voltage, internal resistance, temperature and string/ bank voltage and current.

Charge & Discharge Record

a. Following a battery discharge, A visual color display showing best and worst performing cell / block in a battery

b.Custom export the data & graph

c. History data record and details

Alarm Record

a. Classification the alarm record
b. SMS Notifications & Email Notifications for Alarms

ONE COMMERCIAL BANK IN CHINA

In 2011, RELAT won the bidding on the BMS project from one commercial Bank with all 36 branches in China. Now, there are more than 10,000 blocks batteries of the bank in good conditional running. In the domestic market, RELAT had become the first supplier of Battery Monitor System in large commercial bank project with implementation experiences..

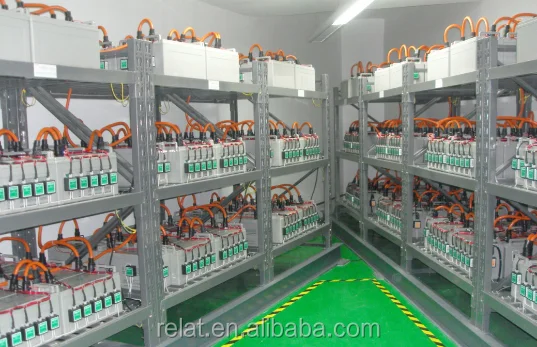

One Data Center  of China Securities and Futures

Total 13,253 blocks,cogfig as below

22 sets x 3 strings x 44 blocks

21 sets x 3 strings x 47 blocks
8 sets x 2 strings x 44 blocks

4 sets x 1 string x 33 blocks
23 sets x 3 strings x 44 blocks

24 sets x 3 strings x 47 blocks
4 sets x 1 string x 33 blocks

ONE SITE OF AIRLINE IN CHINA

Model:BMS BM3000

Quantity:Total 1,168 blocks

Config:4 sets x 1 string x 40 blocks

          24 sets x 1 strings x 42 blocks

Q1. Can I have a complete demo set order for RELAT BMS?

A: Yes, we welcome a complete demo set order of RELAT BMS for verification test.

Q2. What about the lead time?

A:Sample needs 3-7 days, mass production or custom product need 2-4 weeks.

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-8 days to arrive. Airline and sea shipping also optional.

Q4. How to proceed an order for RELAT BMS?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms and places deposit for formal order.
    Fourthly We arrange the production.

Q5. Is it OK to print my logo on the Sensor and Control Module?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 12 months warranty to our products.
