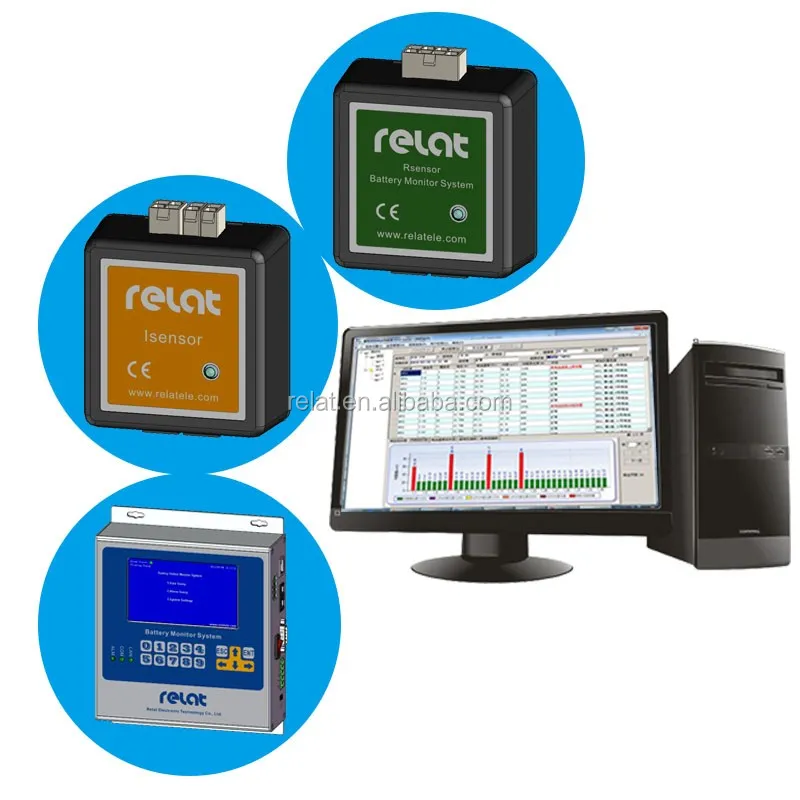

BM3000 Battery Monitor Systems
BM3000 BMS is an individual online battery monitoring module specially designed for UPS/EPS , telecom and Electric Operation Power Supply System. It is with high performance-price ratio and could monitoring cell parameters like voltage,Temperature and internal resistance of every single battery. BM3000 BMS could accurately and quickly monitoring the parameters of the battery.
For Lead/Acid, NiCd, NiMH and Li-Ion batteries
Avoid unnoticed or unexpected battery failures, extend the battery lifespan up to 30% and preserve the reliability of your batteries
Monitoring Items
Cell Voltage
Cell Internal Resistance (IR)
Cell Temperature
String Voltage
String Charge & Discharge Current
String Ambient Temperature
System Alarm Items
String Charge Voltage High/Low
Discharge Current High
Charge Current High
String Over-discharge
Cell Charge Voltage High/Low
Cell IR Over Limit
Cell Over Discharge
Cell Short Circuit
Cell Open Circuit
Features
Modular design, adapt to different battery applications field.
High reliability and stability, with precision algorithm.
Compact size, on-site installation flexibility and easily.
Patent algorithm, to ensure the accuracy of measurement.
Applications
Data Center
Railway Transport
Electricity Power
Radio and TV System
Telecom Base Station
Insurance Data Center
MedicalAviation

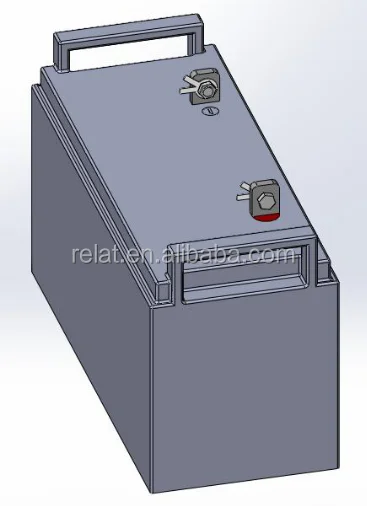

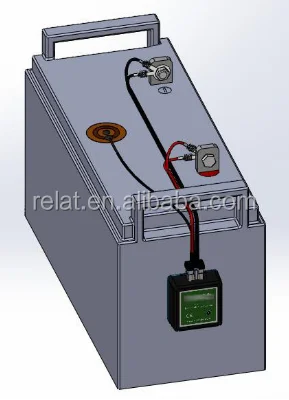

Step 1

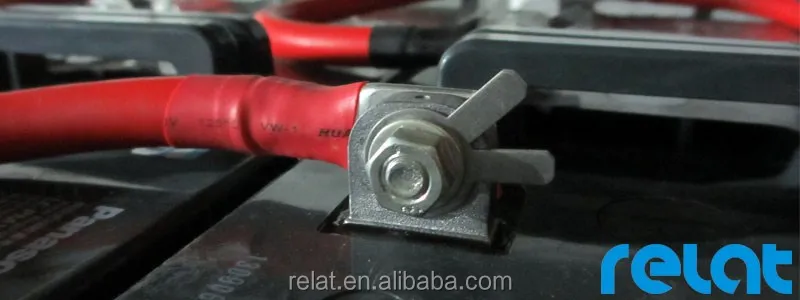

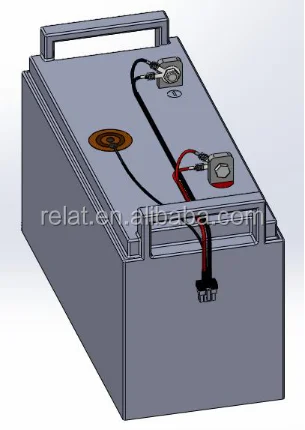

Connect the battery cables.
Step 4
Step 5

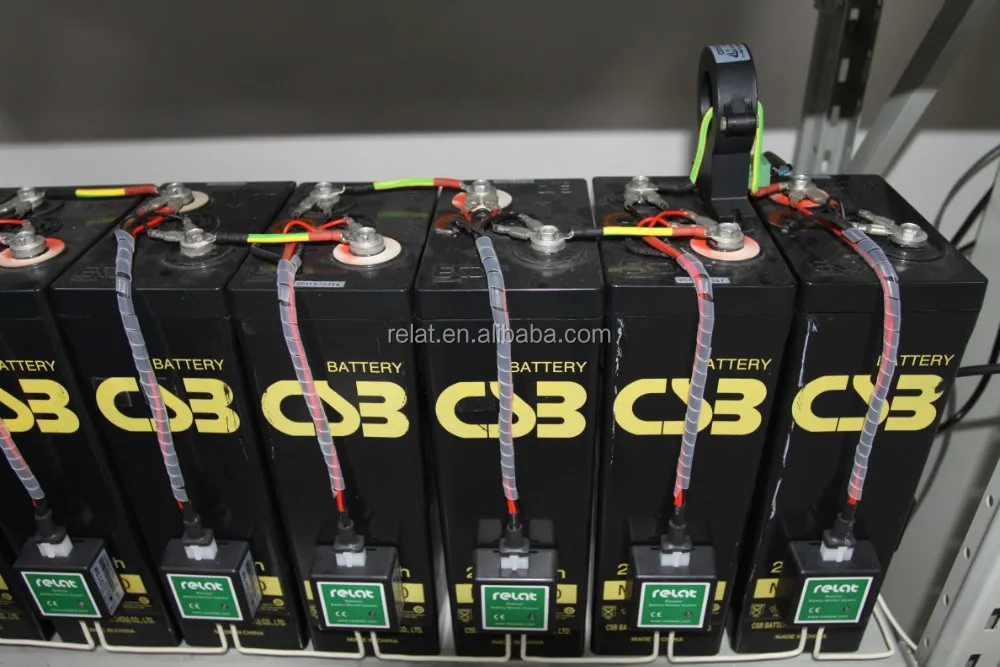

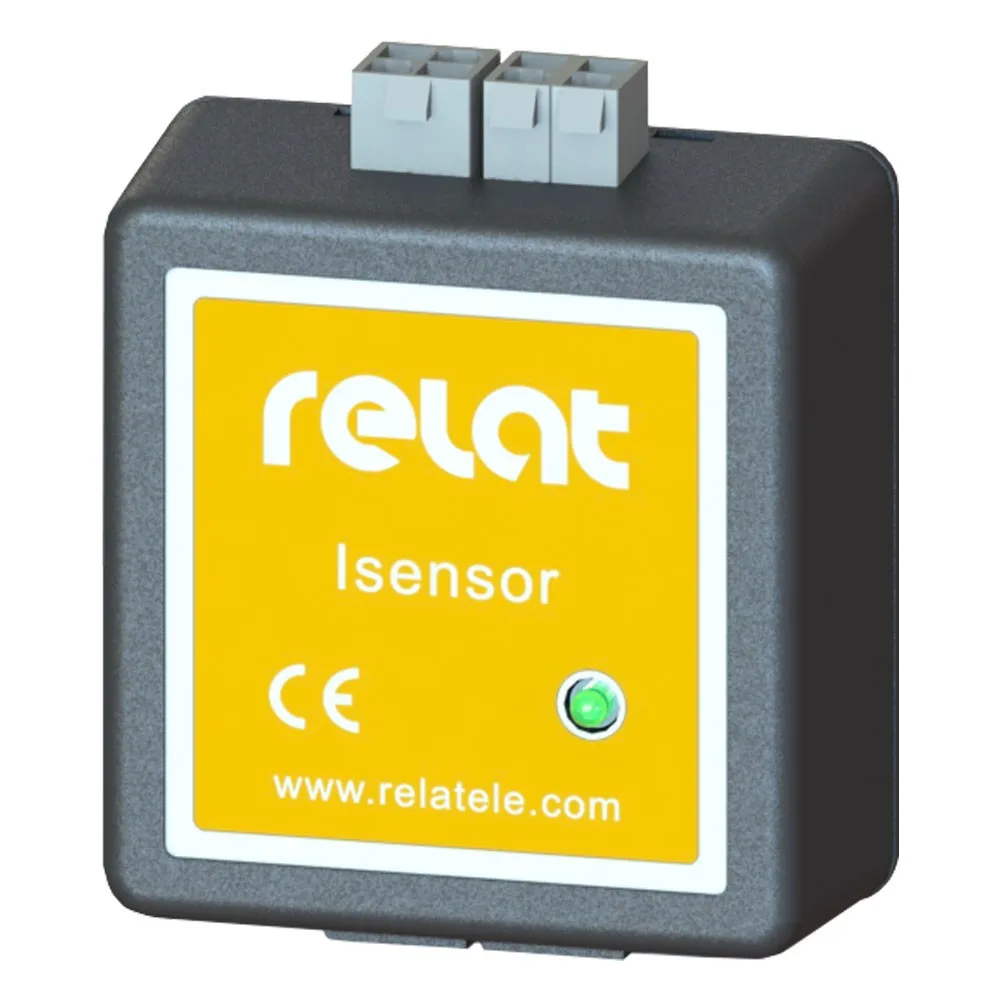

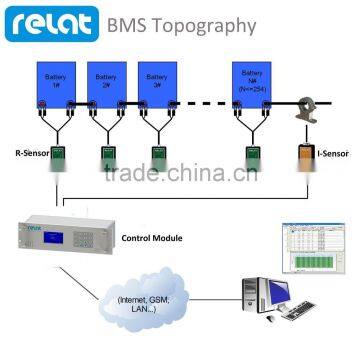

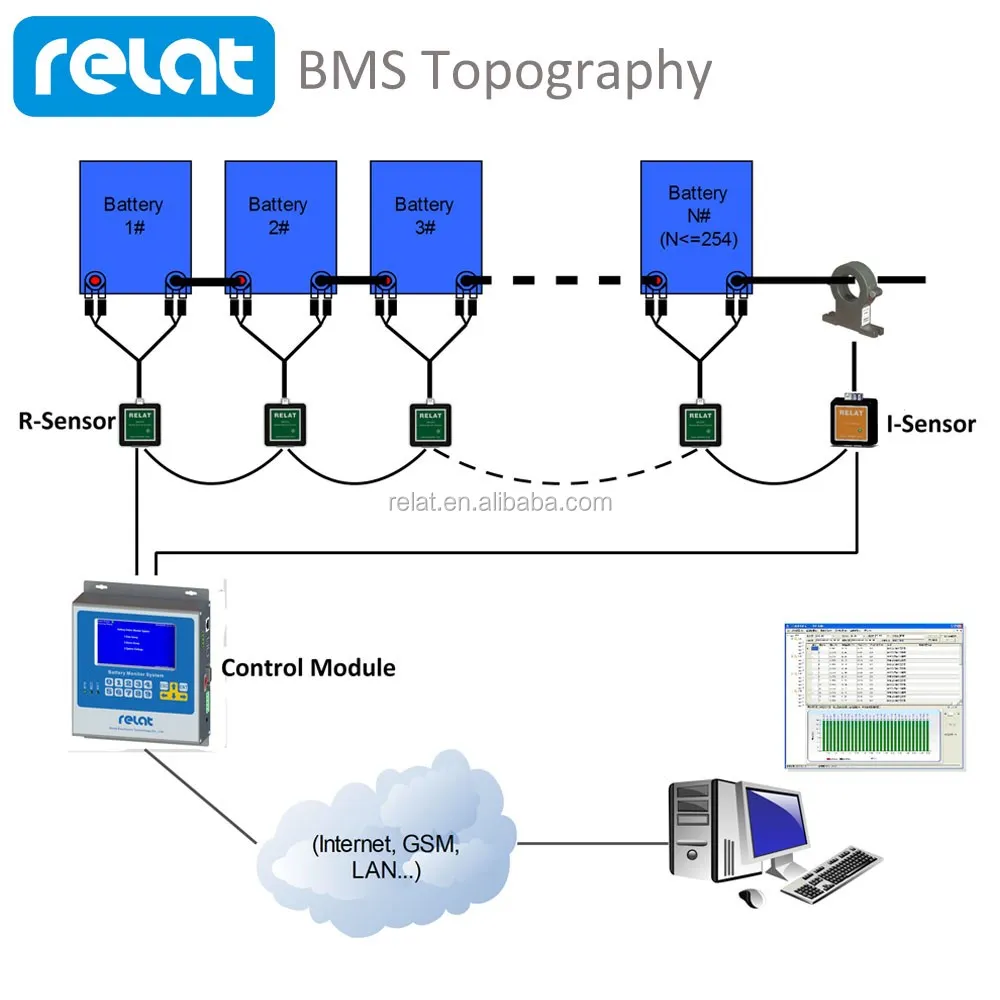

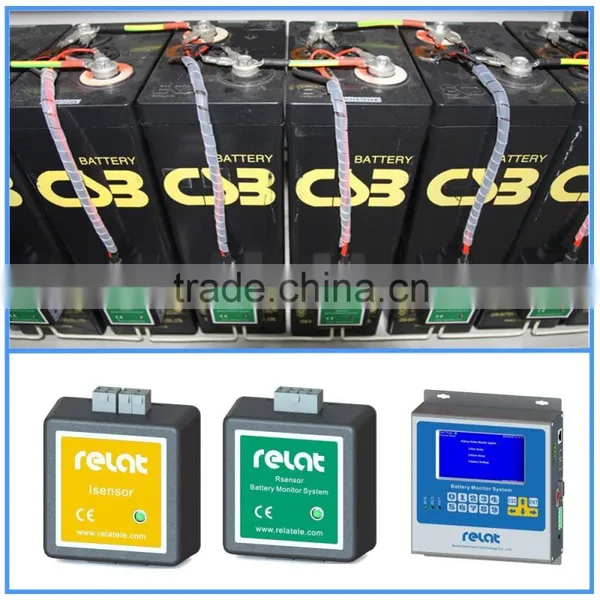

Connect R-bus communication cable to all R-Sensor and I-Sensor

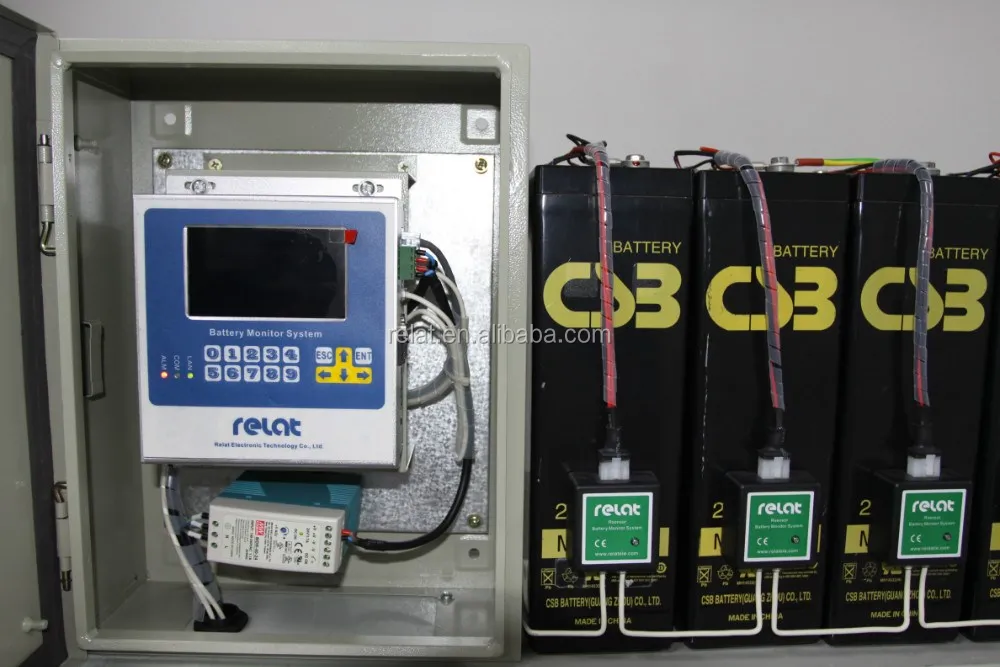

Mount Control Module at cabinet and connect all cables

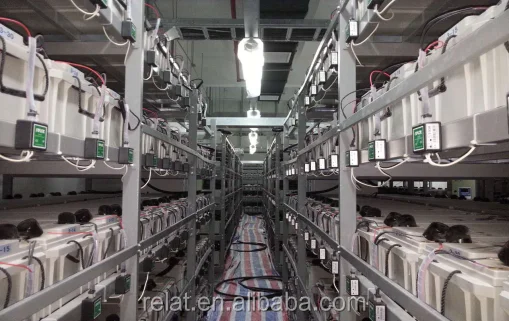

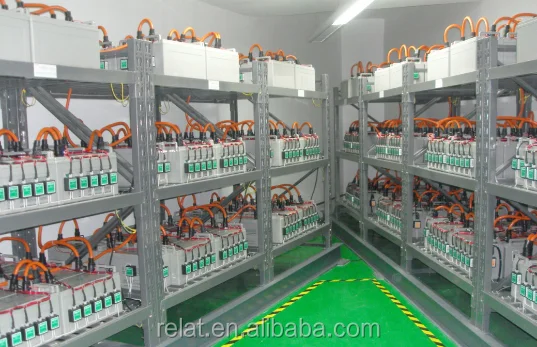

ONE COMMERCIAL BANK IN CHINA
In 2011, RELAT won the bidding on the BMS project from one commercial Bank with all 36 branches in China. Now, there are more than 10,000 blocks batteries of the bank in good conditional running. In the domestic market, RELAT had become the first supplier of Battery Monitor System in large commercial bank project with implementation experiences..

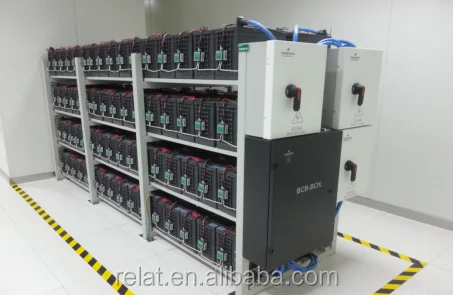

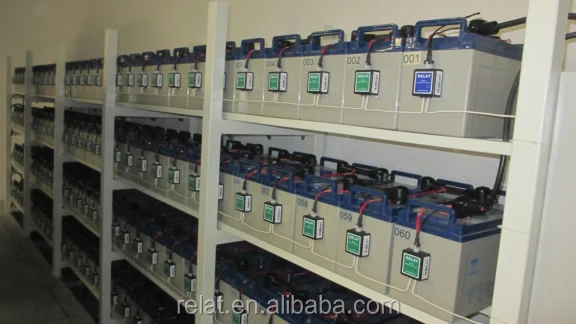

One Data Center of China Securities and Futures
Total 13,253 blocks,cogfig as below
22 sets x 3 strings x 44 blocks
21 sets x 3 strings x 47 blocks
8 sets x 2 strings x 44 blocks
4 sets x 1 string x 33 blocks
23 sets x 3 strings x 44 blocks
24 sets x 3 strings x 47 blocks
4 sets x 1 string x 33 blocks

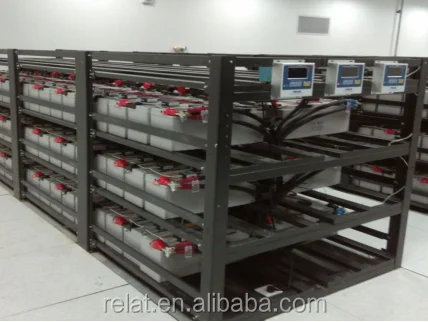

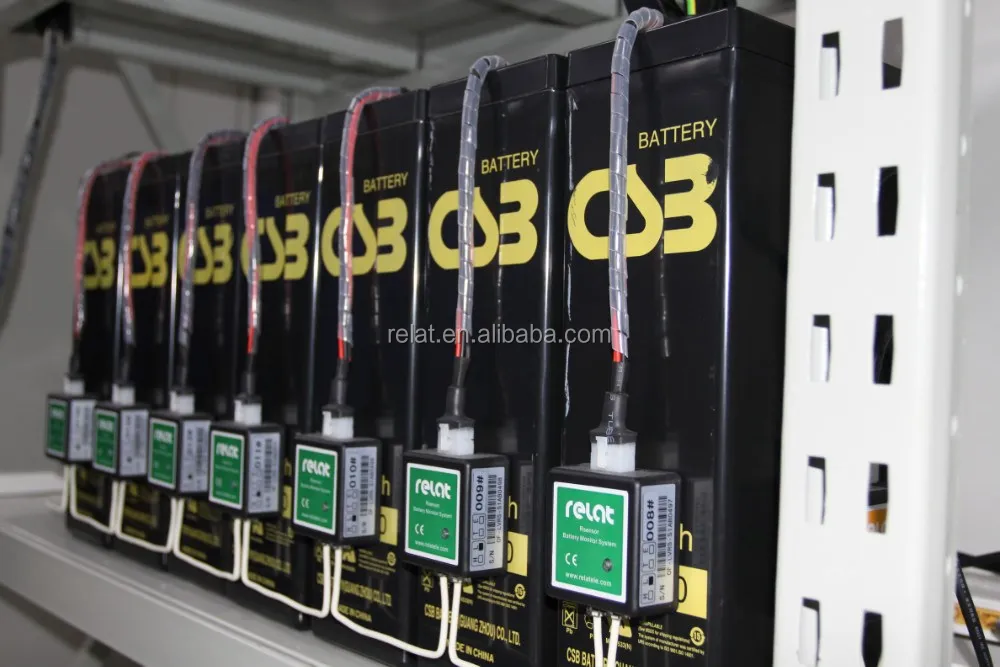

ONE SITE OF AIRLINE IN CHINA
Model:BMS BM3000
Quantity:Total 1,168 blocks
Config:4 sets x 1 string x 40 blocks
24 sets x 1 strings x 42 blocks
Q1. Can I have a complete demo set order for RELAT BMS?
A: Yes, we welcome a complete demo set order of RELAT BMS for verification test.
Q2. What about the lead time?
A:Sample needs 3-7 days, mass production or custom product need 2-4 weeks.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-8 days to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order for RELAT BMS?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the Sensor and Control Module?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 12 months warranty to our products.
