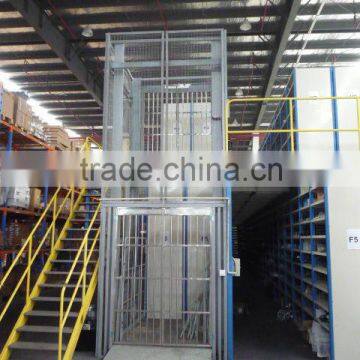

Customizable rail guiding hydraulic building lift elevators for goods lifting work

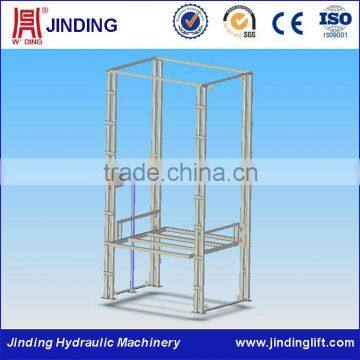

Guide rail type hydraulic lift platform is a kind of non scissor hydraulic lift platform, used for two, three industrial workshop, restaurant, wine shop floor goods between the transmission, because the minimum height of only 150-300 mm, the most suitable for the excavation of the pit cannot industrial occasions, also need not the upper lifting point, with various forms (simple columnar double column, columns, four) action smooth, easy to operate, reliable, hydraulic, electric appliance variety of protection, let the transmission between floor economic, relaxed.
Technology parameters:
|
model
|
rated load (kg) |
vertical travel (mm) |
minimum altitude (mm) |
floor size (mm x mm) |
POWER (KW) |
| SJD0.1-4.3 | 200 | 4300 | 104 | 800*700 | 1.5 |
| SJD0.5-4.0 | 500 | 4000 | 150 | 1600*1200 | 1.5 |
| SJD0.5-4.9 | 500 | 4900 | 60 | 1830*1145 | 1.5 |
| SJD0.6-2.2 | 600 | 2265 | 150 | 1200*1000 | 1.5 |
| SJD0.6-4.8 | 600 | 4800 | 250 | 1500*1400 | 1.5 |
| SJD0.6-5.0 | 600 | 5000 | 150 | 1600*1200 | 1.5 |
| SJD0.65-3.5 | 650 | 3500 | 200 | 1200*1200 | 1.5 |
| SJD0.85-4.5 | 850 | 4500 | 250 | 1800*1400 | 1.5 |
| SJD1.0-2.8 | 1000 | 2800 | 250 | 1950*1500 | 1.5 |
| SJD1.0-4.2 | 1000 | 4200 | 250 | 1500*1600 | 1.5 |
| SJD1.0-7.8 | 1000 | 7800 | 250 | 1800*1400 | 1.5 |
| SJD1.5-3.0 | 1500 | 3000 | 250 | 1800*1550 | 3 |
| SJD1.5-3.0 | 1500 | 5000 | 250 | 1620*1520 | 3 |
Safety:
1. Control Device:Calling box (installed on the wall nearby) and remote controller(Extra optional)
2.Emergency Stop:The lifting and lowering process can be stopped immediately by
pressing the emergency button.
3. Safety Interlock: Lock the platform when it is out of control
4.Emergency lowering:The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
5. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.
6. The machine equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.
Service:
We also supply spare parts and supply technical supporting all the time. (Spare parts: control button, travel switch, Oil cylinder seals and the wrench etc.)
Since founded in 2005, Jinding company is located in Jibei Industry development Zone of Jinan, is only 20km away from Jinan international airport and 380km to Beijing. Jinding factory covers a total area of 18,000 m2 and has advanced processing equipment.
Jinding hydraulic machinery is dedicated in designing & researching, manufacturing, sale of various aerial work platforms(AWP), including hydraulic rail lift machine, mobile elevating platform, self-propelled articulated boom lift, self-propelled telescopic boom lift, self-propelled scissor lift, mobile ramp and fixed hydraulic lifting platform etc. The company has successfully passed three management system certifications of ISO9001, ISO14001 and OHSAS 18001, and obtained the Manufacture License of Special Equipment. We sincerely welcome the customers from the world to our company for visiting and cooperation!
