Function and characteristics
1. This machine is used for fully carding the fiber batt following opening and blending, then forming parallel or randow web through doffer and random if required, which is then supplied to the next process.
2. Company produces carding machines to cover all types of fiber, synthetic and natural fibers etc, from very fine to very coarse deniers, fiber length up to 76mm.
3. Carding with cylinders up to 1.5m in diameter and up to 2.5m in width are produced as normal standard.
4. Card main cylinders are balanced to a surface speed of 1.5m/min, output speed up to 80m/min, web weight 12-60g/m2
5. Card capacity is depending upon card type, fiber denier, types of fiber but can be excess of 500kg/h.
6. All types of card both single and double doffers can be fitted with randomizer rollers or not dependent on custom's needs.
7. All drives including main drive, doffers, workers, feed rolls etc are variable speed. Metal detection devices are standard on feed rolls.
8. Card wires can be supplied as surface wound or interlocking as required.
9. The multi-point suction system ensures all free fiber and dust is continuously removed from the card to be recycled or fed to another recycling process
Technical specifications

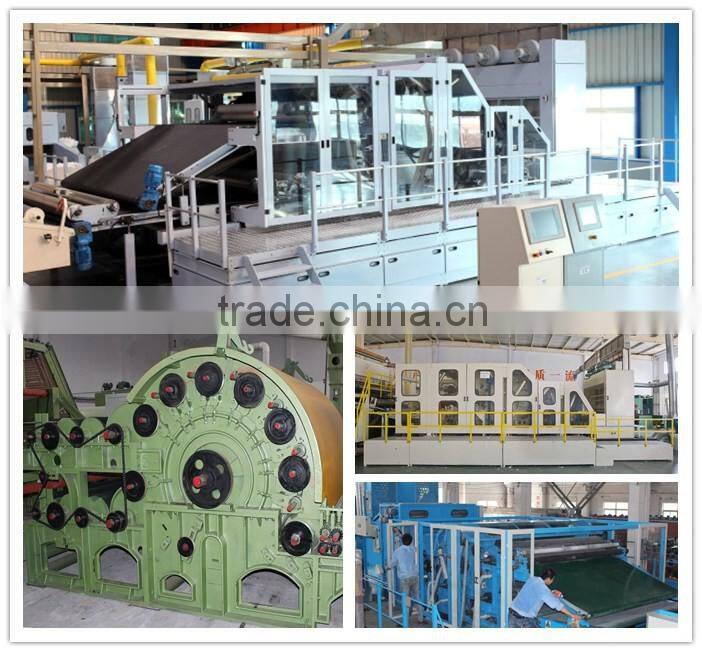

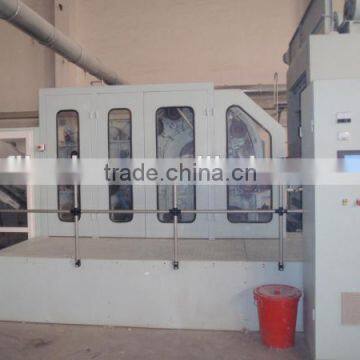

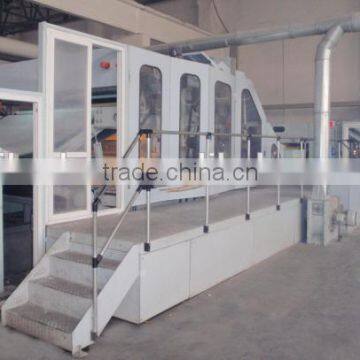

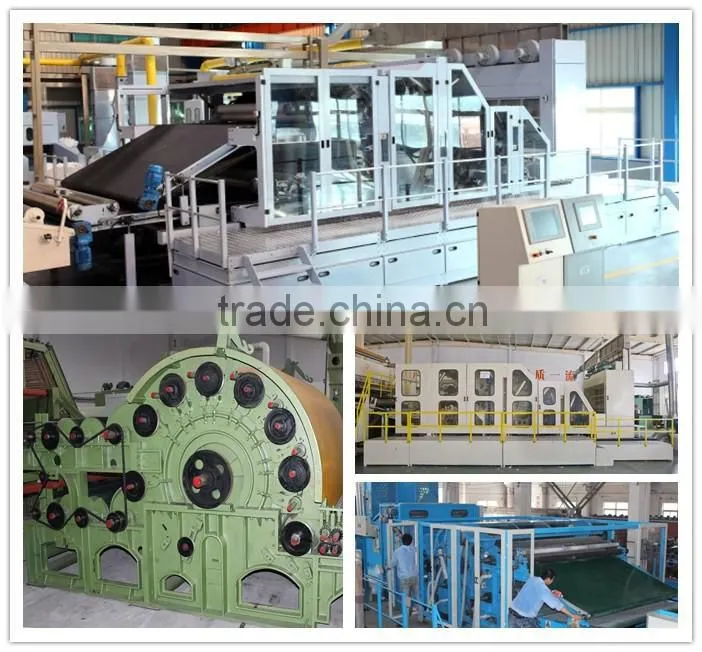

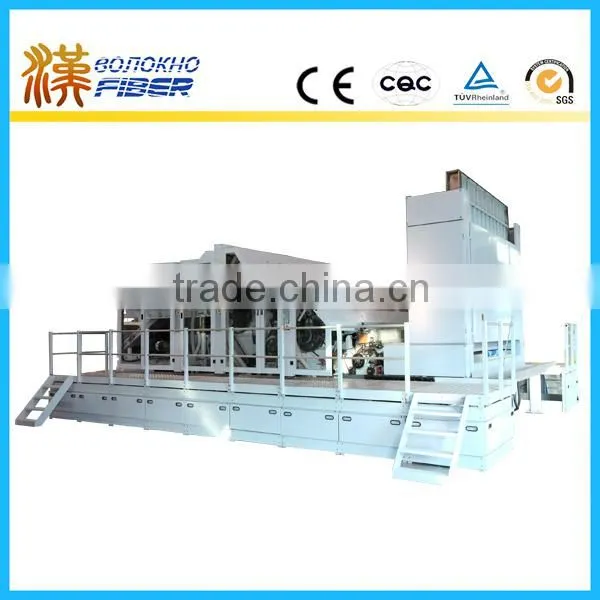

Carding machine

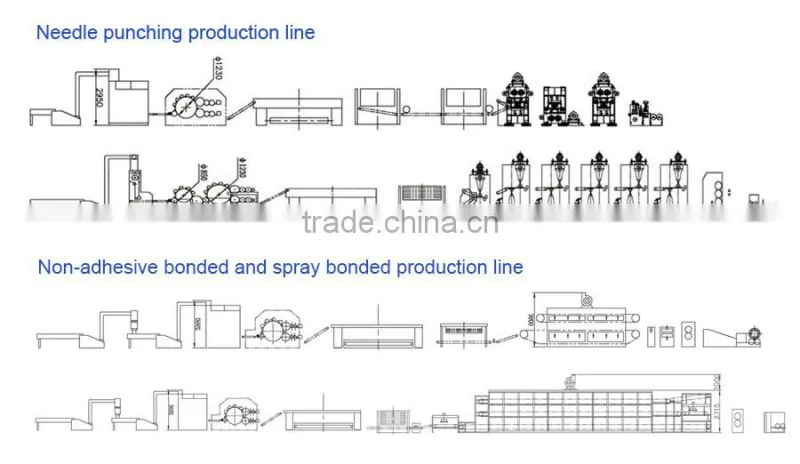

Flow Diagram
Final Products
Raw Materials

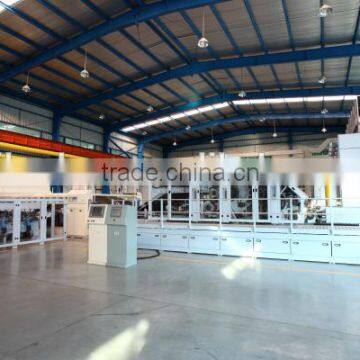

Our company
Certifications
Exhibition
Client
Contact
