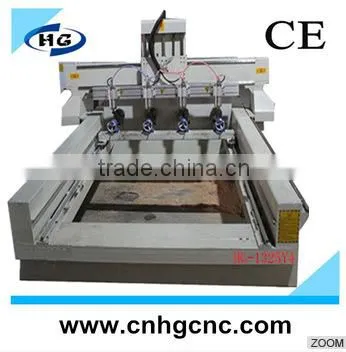

HG-1325Y4 cnc machine shop/ cnc machine used wood /cnc kit
Keywords of the machine
wood cnc router ,cnc engraving machine ,cnc router ,cnc router machine , wood engraving machine , woodworking engraving machine , cnc router machine price ,woodworking machinery
Feature of cnc router
1.The lathe bed is heavy steel strucgure and T-slot. High-rigidity ,firmness ,without deformation.
2.Adopt the imported ball screw rod with high precision and circular Taiwan HIWIN linear guide rail which ensures the precision of machine. The adoption of the breakpoint memory ,guarantee in the accident(power off)or the next day can process.
3.High subdivision servo motor(optional stepper motor)with high speed ,low noise ,running firmly ,and powerful torque cutting.
4.Adopts brushless water cooling spindle (optionl air cooling system)with frequency conversion. With low noise ,the service life is long ,and rotated steadily .
Application of cnc router
1.Furniture: plate, office furniture, doors, cabinets.
2.Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments.
3.Board processing: insulation, plastic chemical components, PCB, car bod,bowling track, ABS, PP, PE, etc.
4.Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.
Parameter of cnc router
| Model | HG-1325Y4 |
| Engraving Size | 1300×2500mm |
| Machine Body | Heavy steel structure |
| Dimension | 3400X2100X1850mm |
| XY Stucture | Skwe rack and pinion drive,HIWIN square linear rail |
| Z Stucture | Ball screw drive,HIWIN square linear rail |
| Spindle Power | 2.2KW*4 water cooling |
| Spindle Speed | 0-24000rpm |
| Drive Motor | Servo motor |
| Max Rapid Travel Rate | 35000mm/min |
| Max Working Speed | 25000mm/min |
| Control System | DSP /NCstudio control system |
| Software | Type3,Artcam,Ucancam |
| Command | G code,HPGL,Uoo,mmg,plt |
| Machine Precision | 0.01mm |
| Repositioning Precision | 0.01mm |
| Working Voltage | AC 220/380V |
| Net Weight | 1500KG |
| Dust Collector | Optional |
| Remark | We can customize the model for any processing siz |

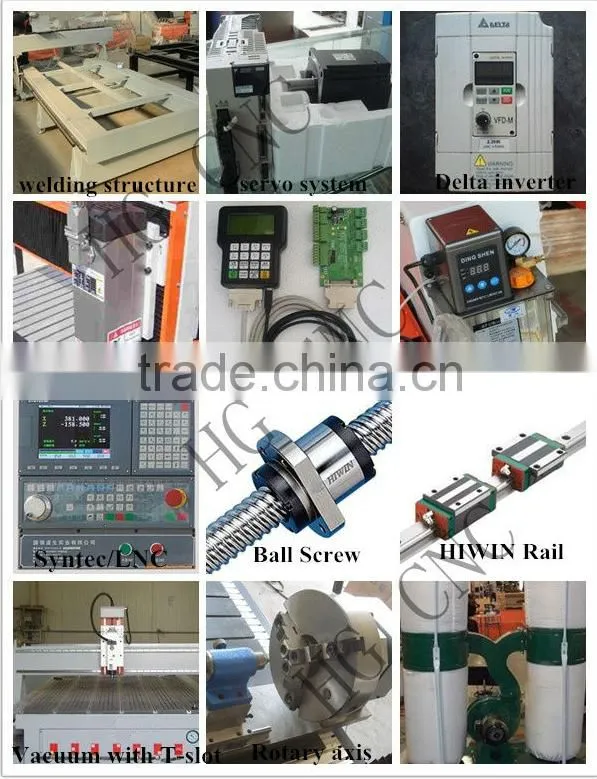

Detailed Parts Show:
Samples:
