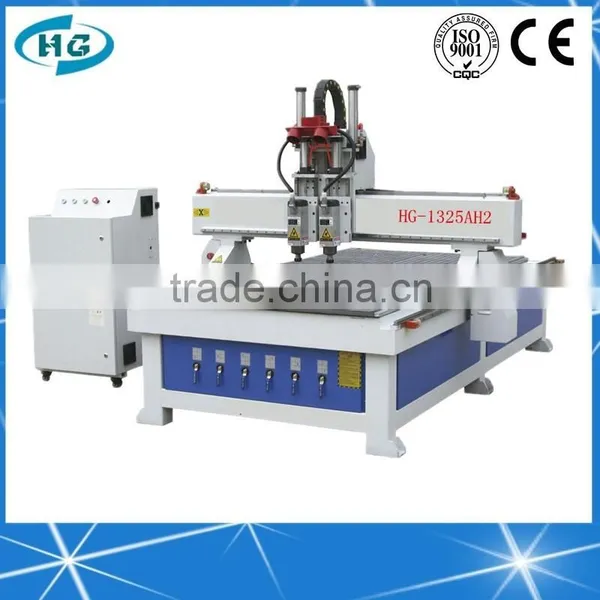

HG-1325AH2 Two Spindles Wood Engraving Machine
About us
Hongguang Machinery is a leading enterprise which is specialized in developing
and manufacturing advanced high grade CNC Router. With many years experience and
good services, our company ranks in the front of the fields and enjoys good reputation worldwide.
Feature of two spindles wood engraving machine
1.The lathe bed is thick wall weld steel strucgure. High-rigidity ,firmness ,without deformation.
2.The table is adopt vacuum adsortion table with 5.5kw water-cooling vacuum pump.
3.Adopt the imported ball screw rod with high precision and circular Taiwan HIWIN linear guide rail which ensures the precision of machine. The adoption of the breakpoint memory ,guarantee in the accident(power off)or the next day can process.
4.High subdivision stepper motor (optional servo motor)with high speed ,low noise ,running firmly ,and powerful torque cutting.
5.Adopts brushless water cooling spindle (optionl air cooling system)with frequency conversion. With low noise ,the service life is long ,and rotated steadily .
6.The dustproof structure design of three axis machine to enxure that the equipment is good ,the service life is long .
Application of two spindles wood engraving machine
1.Furniture: plate, office furniture, doors, cabinets.
2.Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments.
3.Board processing: insulation, plastic chemical components, PCB, car bod,bowling track, ABS, PP, PE, etc.
4.Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.
Parameter of two spindles wood engraving machine
| Model | HG-1325AH2 two spindles wood engraving machine |
| Engraving Size | 1300×2500×200mm |
| Machine Body | Thick-walled steel pipe welding |
| Working table | Vacuum adsortion table with 5.5kw water-cooling pump |
| XY Stucture | Skwe rack and pinion drive,HIWIN square linear rail |
| Z Stucture | Ball screw drive,HIWIN square linear rail |
| Spindle Power | 3.0KW*2water-cooling (optiona 4.5kw,6.0kw air-cooling) |
| Spindle Speed | 0-24000rpm |
| Drive Motor | Stepper motor |
| Max Rapid Travel Rate | 35000mm/min |
| Max Working Speed | 20000mm/min |
| Control System | NCstudio |
| Software | Type3,Artcam,Ucancam |
| Command | G code |
| Machine Precision | 0.01mm |
| Repositioning Precision | 0.03mm |
| Working Voltage | AC 220/380V |
| Machine Size | 1900×3200×1700mm |
| Net Weight | 1500KG |
| Dust Collector | Optional |
| Remark | We can customize the model for any processing size |
FAQ
Answer: The same quality, we owned lower price, same price we own better quality.
2. Question: what is your after-service?
Answer: Compared trading companies, we not only have reasonable price, also we have 24-hours door to door after-services. Our engineers can offer you free trained course, until you can totally operated it.
Parts of wood engraving machine
Samples of wood engraving machine
Production Procedures of wood engraving machine
Certification
Cooperation Partner
Shippment & Package
