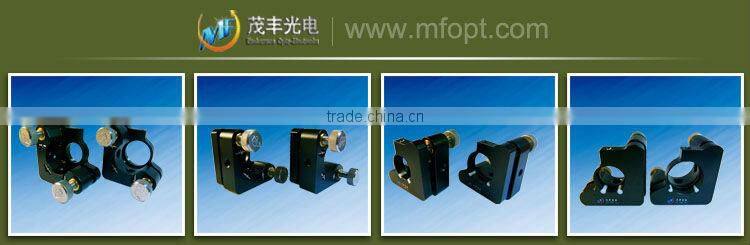

P-2 series/Post for lens mount/optical mirror post

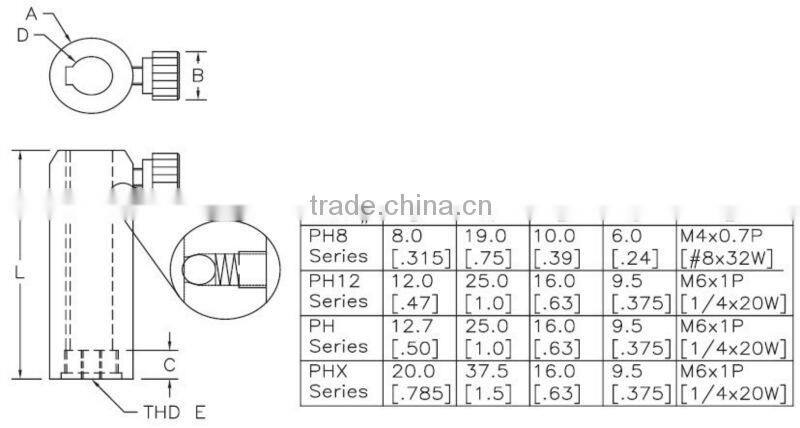

1.Post Holder with spring loaded ball allow one-handed positioning

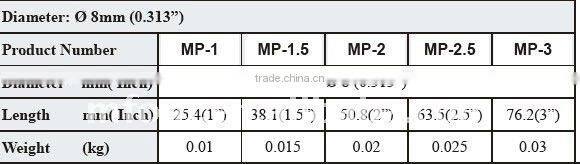

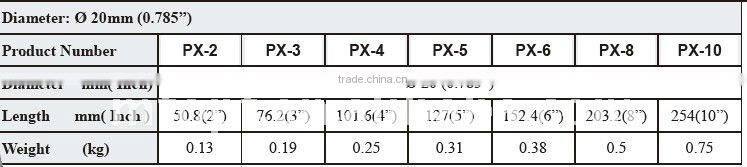

Diameter : 8 / 12 / 12.7 / 20 mm
stabil mount
The drawing and the specification:

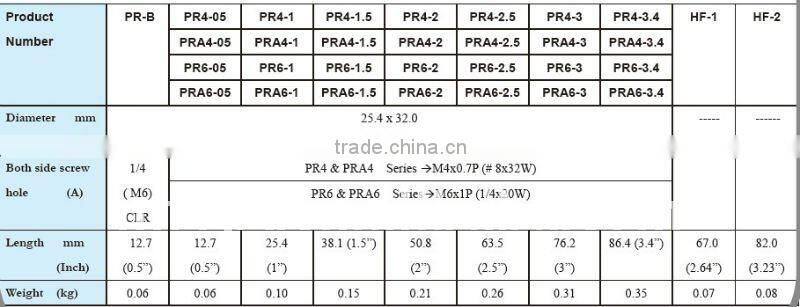

2.PR4 & PRA4 Series
PR6 & PRA6 Series
PR4 & PR6 Series
PRA4 & PRA6 Series
both of hole are M40.7P(#8x32W)
both of hole are : M6x 1P(1/4x20W)
Material : Stainless Steel
Material : Aluminium (Black anodized)
Features
1" diameter steel post riser
Stackable

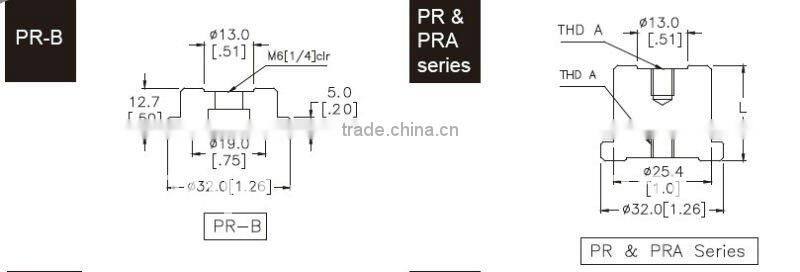

PRB with M6x1P (1/4-20W) clearance hole for most posts and post holders
PR-B with M6x1P (metric) clearance hole for common usage also compatible for
Imperial version 1/4-20W.
PR6-series top and bottom with M6 tapped hole Imperial version is 1/4x20w.

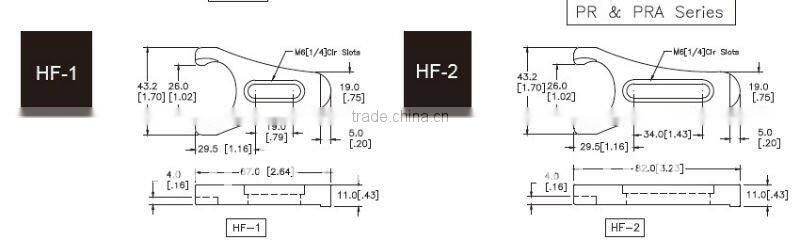

Holding fork with two length for extensive application.

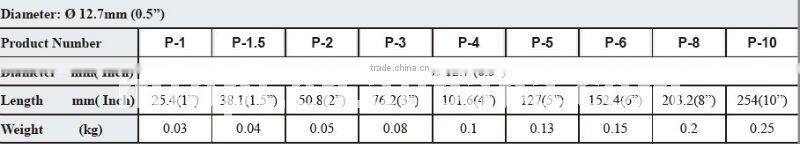

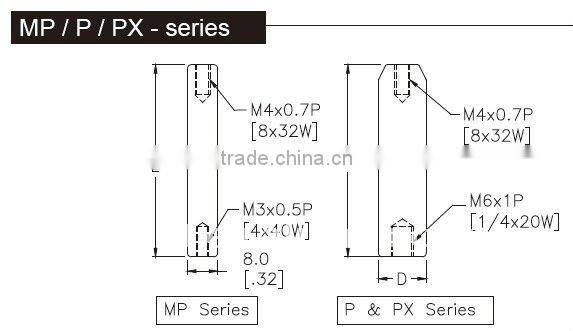

3.P-series : Ø12.7 (0.5")
Features 2 different tapped screw at post top and
bottom
P-series : M4 x 0.7P + M6 x 1P
4.

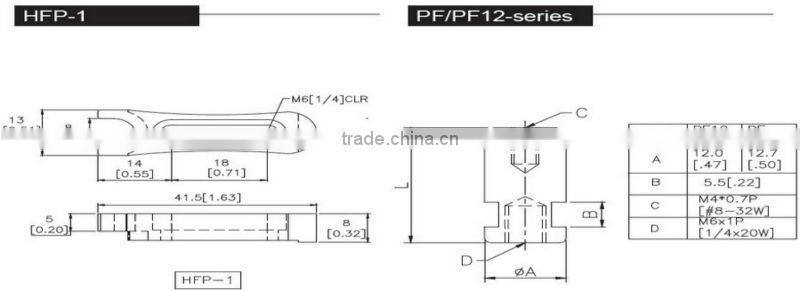

PF/HFP-series smartEzi-Stainless steel Post
PF-series : 12.7 mm (0.5") post
PF12-series : 12 mm post
HFP-1 : Holding fork easily clamp both PF and
PF12 series post
To order Imperial model please add * I * to Item
