Specifications
wood furniture making machine1. Vacuum adsorption table
2. HIWIN square rail
3. Disc type auto tool changer
4. CE, ISO, SGS

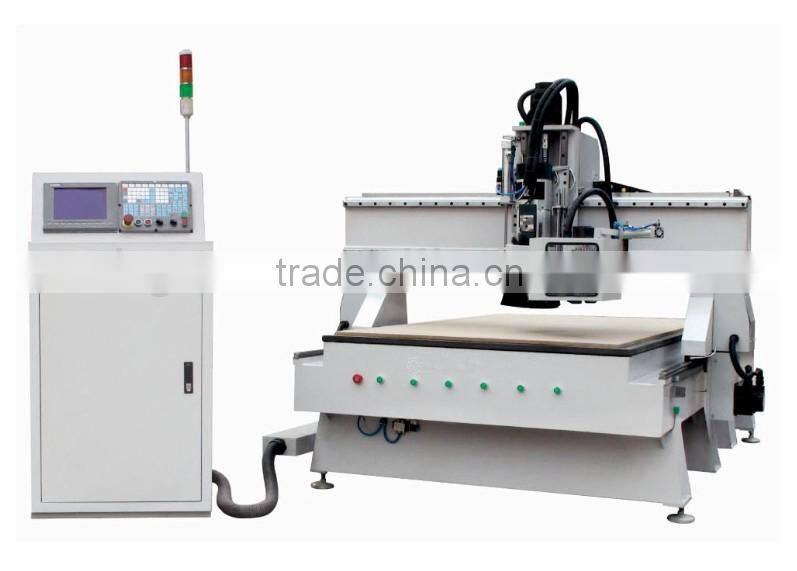

HG-1325H Factory price on sale high performance 6.0 kw HSD spindle wood furniture making machine
wood furniture making machine Features
1. ATC gantry machining center is specially designed for middle and-high-end clients with higher automation degree requirements. It’s suitable for high-volume, 24-hour processing non-metallic, copper, aluminum and aluminum extrusion profiles and so on.
2.High stability of atc cnc router: Industrial production models, heavy-duty all-steel structure welding, tempering vector effict processing, solid and uneasy deformation for atc cnc router;
3.High-quality parts: Taiwan control system, high-precision spindle ceramic bearing , low noise, and long service life. Imported linear guide; German ball screw, big loading capacity, high precision for cutting; servo system, high pulling torque has improved the safety of systems engineering;
4.Modular structure design: elect various processing conversion head configuration, can carry on carving, engraving, cutting and milling work;
5.Easy and safe modes of operation: Advanced documents pre-processing functions ensure running speed and accuracy;
6.Disc automatic tool changing system: 8 tools’ magazine capacity;
7.High adhesion vacuum suction device;
8.Software Compatibility: compatible with the processing code generated by a variety of CAD/CAM design softwares such as type3/artcam/castmate/Wentai
9.Improving oiling lubrication system for this atc cnc router extends the machine’s service life.
wood furniture making machine Applicable Materials
Wood, acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum
wood furniture making machine Specification
Model |
HG-1325H |
XYZ Working Size |
1300*2500*200 mm |
Machine body |
Thick-walled steel pipe welding |
Table surface |
Vacuum with T-slot table |
XY structure |
Skew rack and pinion drive, HIWIN square linear rail |
Z structure |
Ball screw drive, HIWIN square linear rail |
Spindle |
6.0 kw air cooled |
Tool magazine |
Disc type with 8 pcs capacity |
Spindle speed |
24000 RPM |
Drive motor |
Servo system |
Max. Rapid Travel Rate |
40000 mm/min |
Max. Working speed |
30000 mm/min |
Control system |
Syntec/LNC/NK |
Software |
Type3, Artcam, Ucancam |
Command |
G code |
Machine precision |
0.01 mm |
Repositioning precision |
0.03 mm |
Working voltage |
AC 380V |
Machine Size |
1900mmX3200mmX1700mm |
Net weight |
1800KG |
Dust collector |
optional |
Remark |
We can customize the model for any processing size |
Parts of the machine can do some changes as your requirement:
1. Motor (stepper or sever motor)
2. Spindle ( air-cooling or water-cooling spindle)
3. Guide rail (round guide rail or square guide rail)
4. The table of the machine (Vacuum table, T-slot table, Combination of Vacuum table & T-slot table, normal table, table moving)
wood furniture making machine Standard accessories
PCI card, Communication cable, Water cooling system, Power cable, Clamp, Wrench, Bit, Collet, Other tools
wood furniture making machine Warranty
24 months for machine. Also we supply lifetime service online 24 hours a day MSN, Skype, Yahoo, Gmail and so on. You can also contact us by email, and we will reply in 24 hours, or by phone if urgently.
wood furniture making machine Samples
We usually use below parts for our machine
Main Products
wood furniture making machine Production Procedure
wood furniture making machine Certification
Company Advantages
1, First-class factory meets international production plant's standard, ten years' manufacture and export experiences
2, Own most advanced domestic cnc machining production equipments
3, 5-9 days machine production time, one year warranty and lifetime free maintenance
4, OEM and ODM services available
5, Same quality, our price and service are better; Same price, our quality and service are better
6, with CE, FDA, SGS, ISO9000 certifications
