Welcome To Foxslide China
Amazing Place to Discover
Linear Guide
Product Description

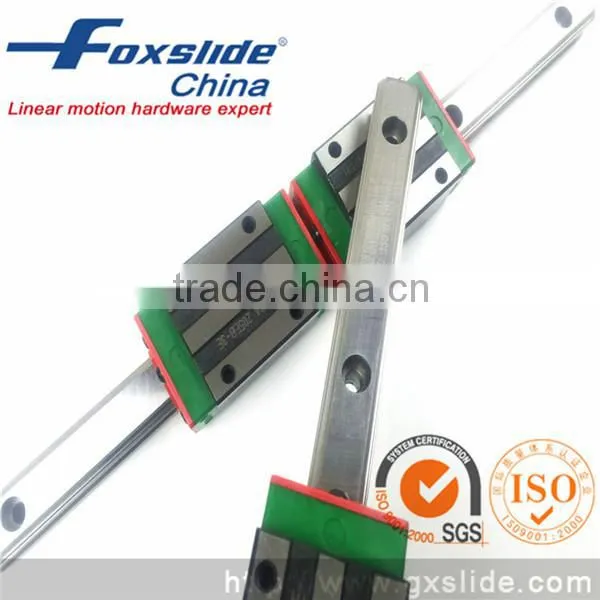

| Hiwin linear rail carriage quide | |
Guide Width or Diameter |
34mm |
linear guide block mounting hole |
82mm*62mm |
Brand Name |
HIWINl |
Guide Length |
100mm to 5000mm; or as per requirement |
Material |
bearing steel |
Comined Height |
48mm |
Place of Origin |
Taiwan |
Linear guide hole distance |
90mm |

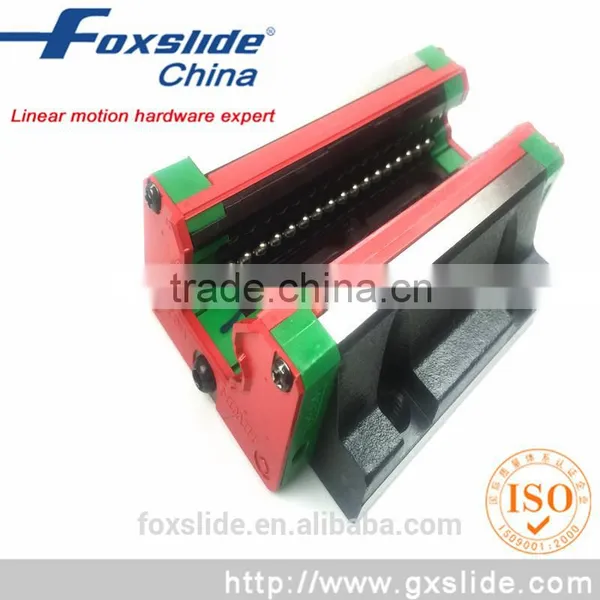

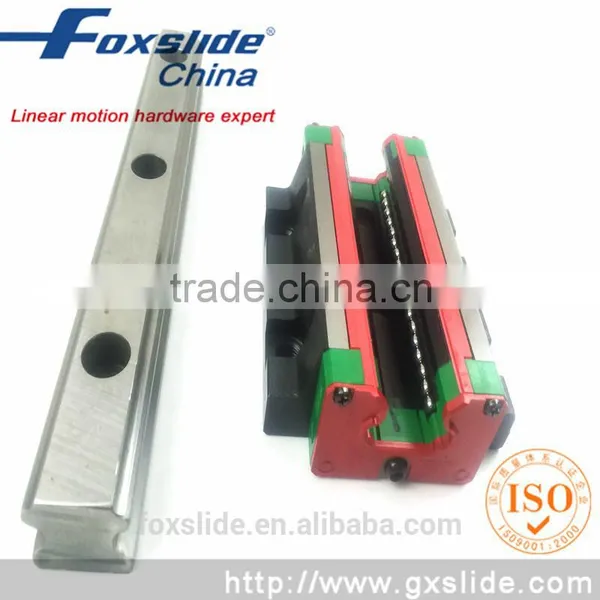

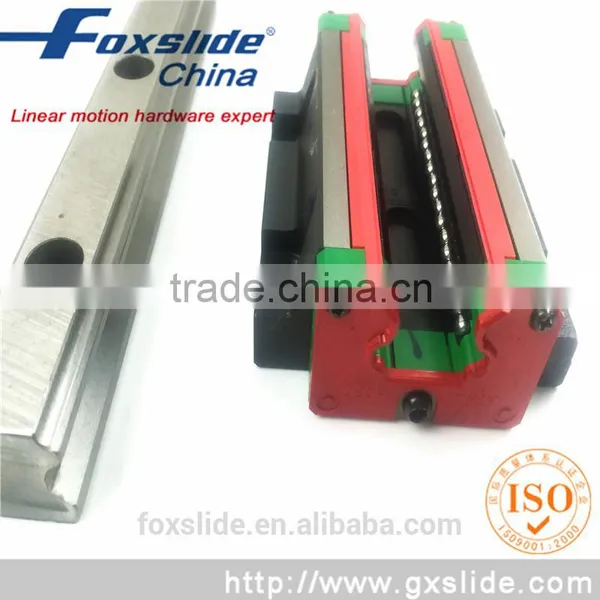

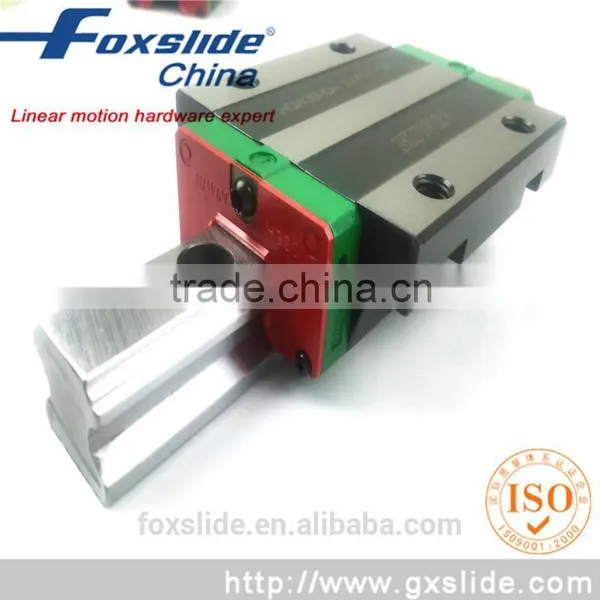

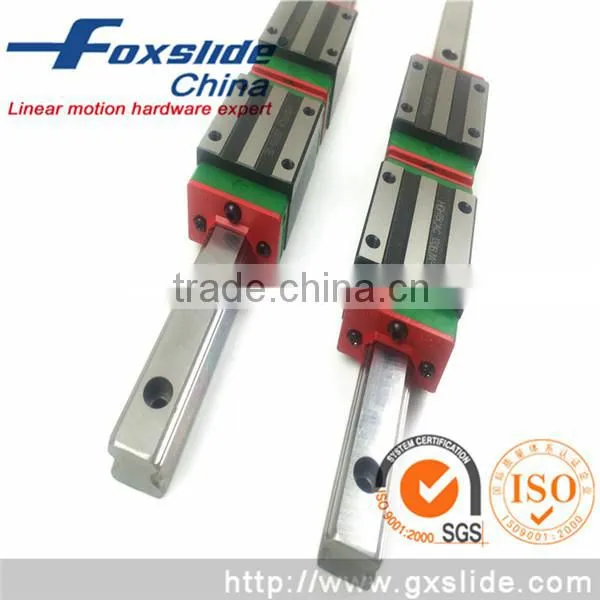

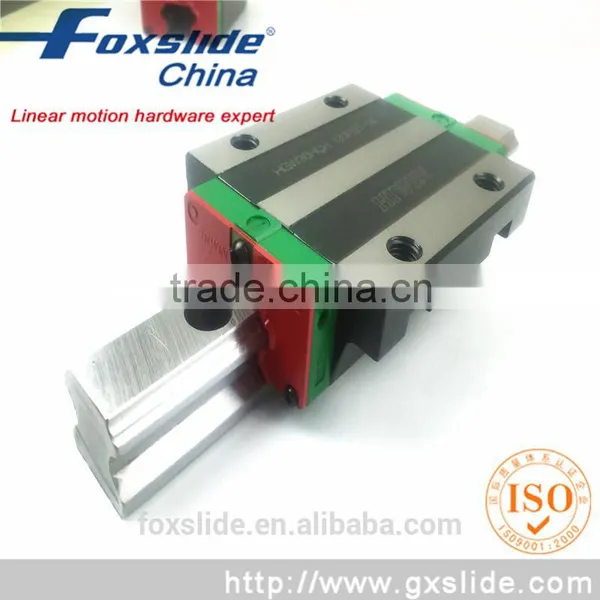

HIWIN Linear Guide block HG series
Tips for ordering linear guide and linear guide blocks:
(1) Tell us the width of linear guide: e.g. 9mm, or 12mm or 35mm or others
(2) What is the size code of linear guide blocks, pls? E.g. MGN9C, HGW35CC, and etc.
(3) linear guide length , and quantity of guide blocks in one linear guide, pls? E.g. MNG91R80MMZ0C; 1 pcs of blocks on the 80mm linear guide
Linear guide and assorted linear guide carriage reference:
Linear rail size |
AssortedLinear guide blocks |
|||
HGR15+(rail length) |
HGH15CA |
HGH15HA |
HGW15CA/CB/CC |
HGW15HA/HB/HC |
HGR20+(rail length) |
HGH20CA |
HGH20HA |
HGW20CA/CB/CC |
HGW20HA/HB/HC |
HGR25+(rail length) |
HGH25CA |
HGH25HA |
HGW25CA/CB/CC |
HGW25HA/HB/HC |
HGR30+(rail length) |
HGH30CA |
HGH30HA |
HGW30CA/CB/CC |
HGW30HA/HB/HC |
HGR35+(rail length) |
HGH35CA |
HGH35HA |
HGW35CA/CB/CC |
HGW35HA/HB/HC |
HGR45+(rail length) |
HGH45CA |
HGH45HA |
HGW45CA/CB/CC |
HGW45HA/HB/HC |
HGR55+(rail length) |
HGH55CA |
HGH55HA |
HGW55CA/CB/CC |
HGW55HA/HB/HC |
HGR65+(rail length) |
HGH65CA |
HGH65HA |
HGW65CA/CB/CC |
HGW65HA/HB/HC |

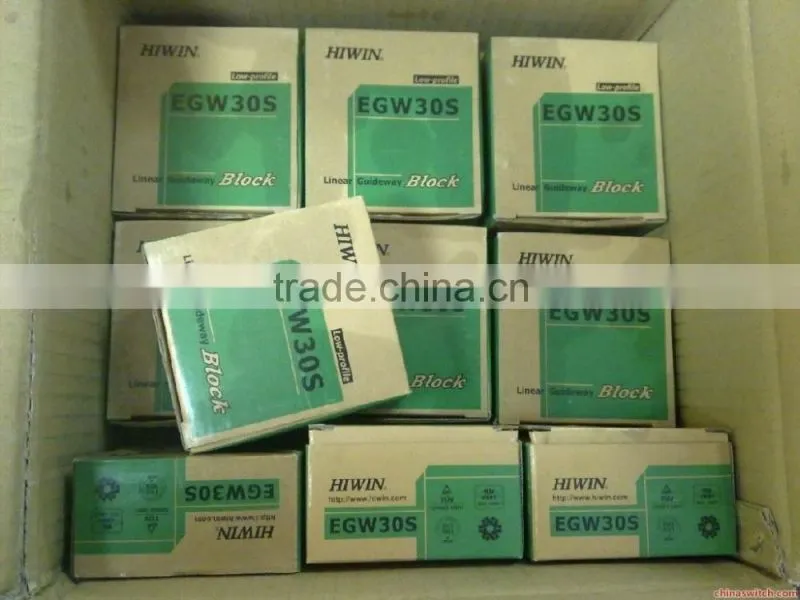

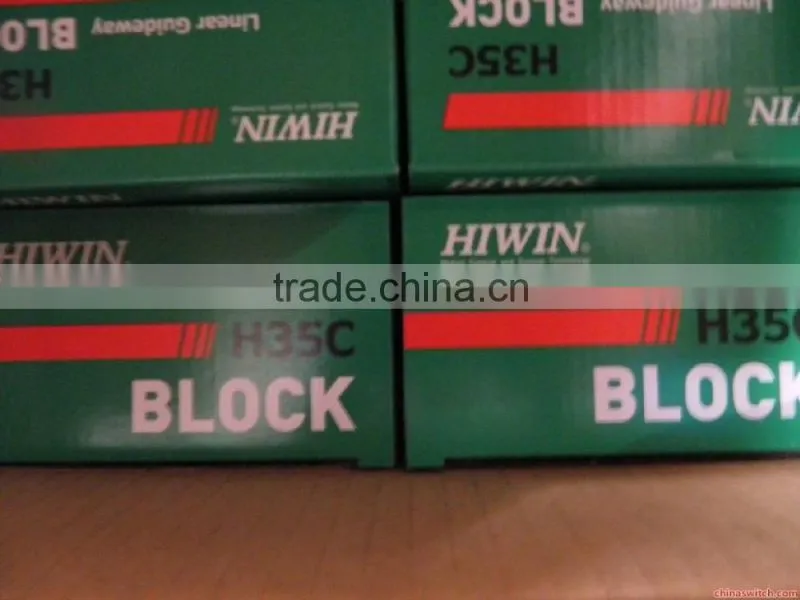

Packaging & shipping
One set of linear slide guide in a plastic bag and severl sets in a carton box; or as per requirement.
Shipping: By air in 7 days; and by sea in 30 days.
Our Services
Our Quality:
Quality is the life of Honesty. All products we sold out are strictly selected and tested by our QC department.
Warranty: One year free packages or repair kit(non-artificial damage).
Payment: We accept payment via TT (Bank transfer), Paypal and Western Union. We accept bank transfer for large orders. For small order, you'd better pay via Paypalor Western union.
Shipping: We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS, Airfreight and by Sea.
Import taxes: When you import products from another country, there is always the possibility of paying import taxes. We can help you reduce and avoid import taxes by declaring prices low.
We can supply other linear motion products: precision ball screws, shaft couplings, linear stage, single axial robot, pulleys and belt etc. For any help, pls fell free to contact us. Skype ID: drawer-slider. Tel: +86-13436611722
For more information, pls visit our web:
Certifications
Products Images
Product Detail
Product Application
FAQ
1. How to get product catalogue of linea guide carriage pls?
A: As the file is too big, pls email us for the related information. We would like to share the product information at the first time of goting your email.
2. If you have any other quesitons, pls send email or call us directly +86-13436611722
3. Any linear guide length accepted, pls? Yes, we can custom made any length to your needs.
