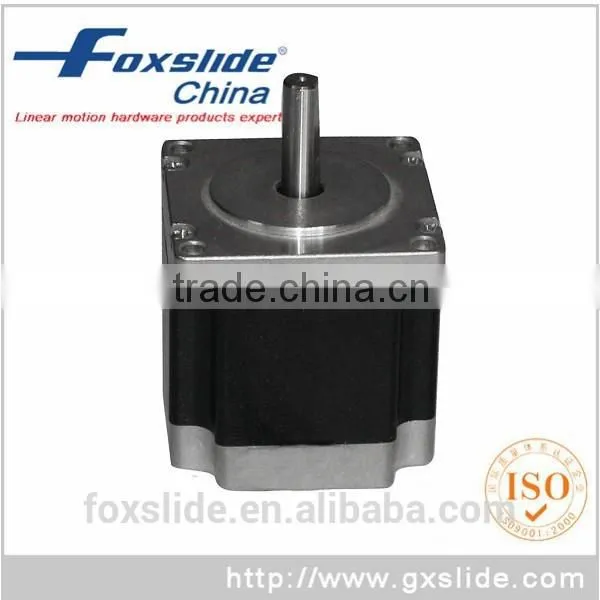

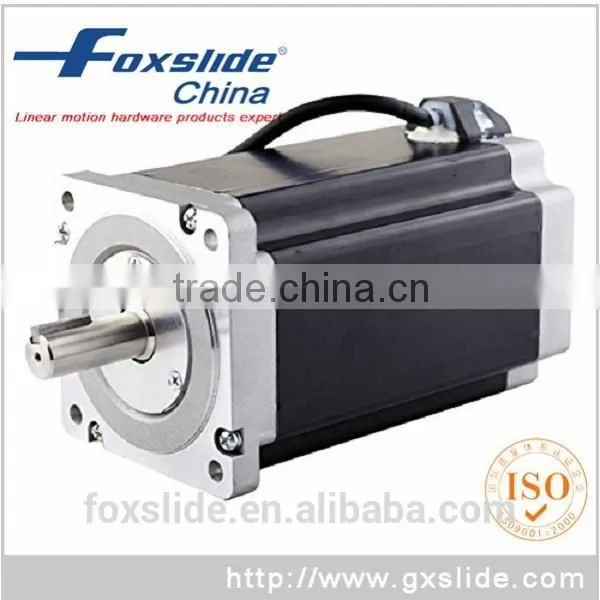

NEMA 23 Electric Hybrid Stepper Motor for CNC router or Mill
Hybrid stepper motor with improved torque performance, low power consumption, excellent micro-step torque, high heat dissipation, and dynamic performance characteristics, is a kind of stepper motor with the best performance; two types: two phases and five-phase. Two phase : the step angle normally is 1.8 degrees, while the five-phase stepper 0.72; the hybrid stepper motor enjoys the widest applications.
Application:
- Medical Appliance
- Banking Terminal
- Stage Lighting
- Monitor
- Weighing Apparatus
| Model | Voltage | Resistance | Inductance | Pull-out Torque | Holding Torque | Max Start Frequency | Max Operation Frequency | Drive Method |
| (V) | (Ω) | (mH) | (mN.m) | (mN.m) | (PPS) | (PPS) | (CHOPPER) | |
| 57BYGH120 | 24 | 2.5 | 4 | 460 | 550 | 1700 | 3500 | Unipolar |

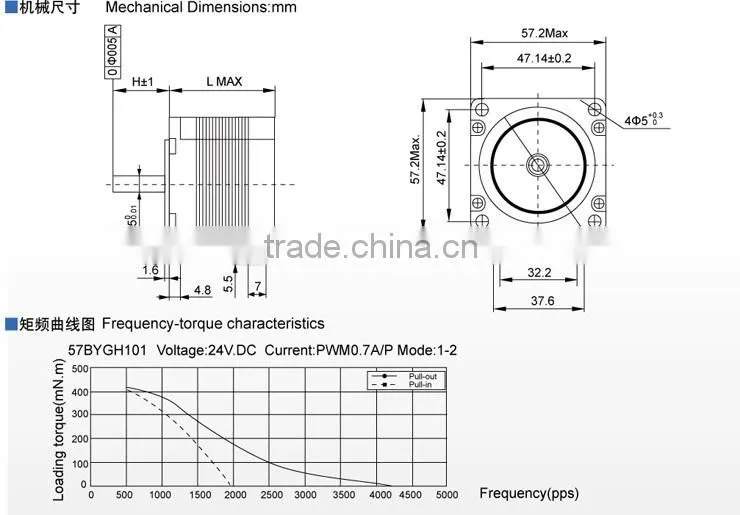

| 57BYGH101 | 8.4 | 12 | 25 | 360 | 490 | 1600 | 4500 | Bipolar |
| 57BYGH301 | 8.4 | 10.5 | 30 | 800 | 960 | 1500 | 2700 | Bipolar |
| 57BYGH402 | 6.7 | 7.5 | 25 | 850 | 980 | 1700 | 3500 | Bipolar |
I. Products quality guarantee:
1. One year of quality guarantee except human factors.
II. Short production period;
We have USD800,000 of products in stock for availability; for products not in stock, it usually takes 15 to 20 days.
III. Moderate price: win-win concept makes us offer reasonable price to every customers;
IV. Experienced and professional sales staff;
V. OEM and ODM accepted;
VI: Punctual delivery. sample order accepted.
VII. Sample are available for your testing
Beijing G.H.X. Slide Hardware Products Co., Ltd is a leading integrated company in manufacturing, processing and supplying slide hardware products. We supply drawer slides and linear transmission products.
Main products:
Drawer slide series: with loading from 45kg to loading 227kg, widely used in IT industry, furniture design, server cabinets in telecommunication industry, automatic teller machine (ATM) cabinets in banking industry, vehicle-mounted heavy-duty storage cabinet, etc.
Linear transmission products: linear guide, ball screw, shaft couplings and stepper motor which are widely used in CNC machines, precision tool machines, production machines, electronic machines, transmission machines and etc.
What do we do:
We specialied in supplying industrial linear motion hardware since is foundation is 2008.
At the begining, our product line is few, with the requirement of customers from CNC manufacure, medical equirement designer, automation industries, ATM designer and etc, our products ranges are becoming mainly CNC components and heavy duty ball bearing drawer slides.
With experienced logistics department, sales team and professional staff majored in machine design &manufacture and automation, we can design most of the products proposed by customers both domestic and oversea. Meanwhile, all the products can be shiped in time at competitive price.
To improve production capacity, in June, 2015, our own processing facotry was found in Suazhou. Our well-beloved customers will enjoy more faster and better service from us.
