Ball Bearing Metric Ball Screw for Lathe Machine

Ball Bearing Metric Ball Screw for Lathe Machine thumbnail-1
Ball Bearing Metric Ball Screw for Lathe Machine photo-1
US$ 30 - 35 MOQ: 2 Sets
Key Specifications
Get Latest Price
Manufacturing Process:
Rolled Thread
Material:
GCr15, Gcr15
Length:
Customized, 10mm to 6000mm
Contact Supplier Request Quote Chat Now
Beijing G.H.X Slide Hardware Products Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Manufacturing Process Rolled Thread
Material GCr15, Gcr15
Length Customized, 10mm to 6000mm
Model Number SFU1204 ball screw
Place of Origin Beijing, China
Brand Name TBI

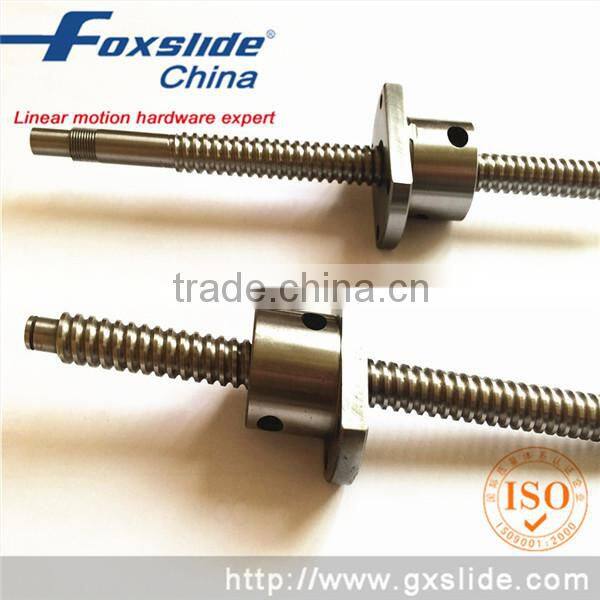

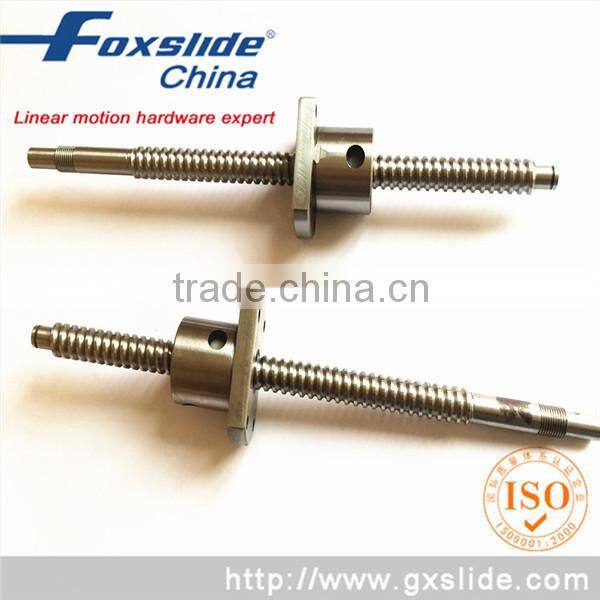

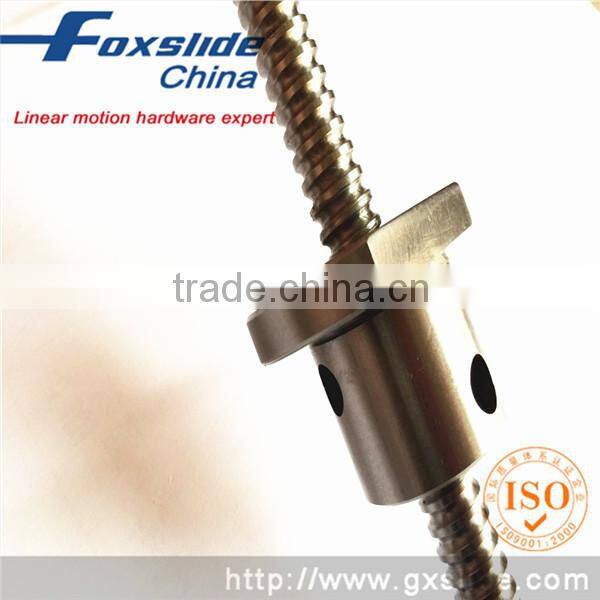

TBI high quality metric ball screw





Product Description





Function of sfu 1type metric ball screw ball scew and nut:

Ball Screw is made of screw and ball nut . It's function is to turn the rotary



motion into linear motion.,which is a future extension and development of ball



screw. The significance of the development is to move into a rolling bearing



from  sliding action. With little frication, Ball Screw are widely used into



various industrial equipment and precision instruments.

 Ball bearing metric ball screw for lathe machineBall bearing metric ball screw for lathe machineBall bearing metric ball screw for lathe machine

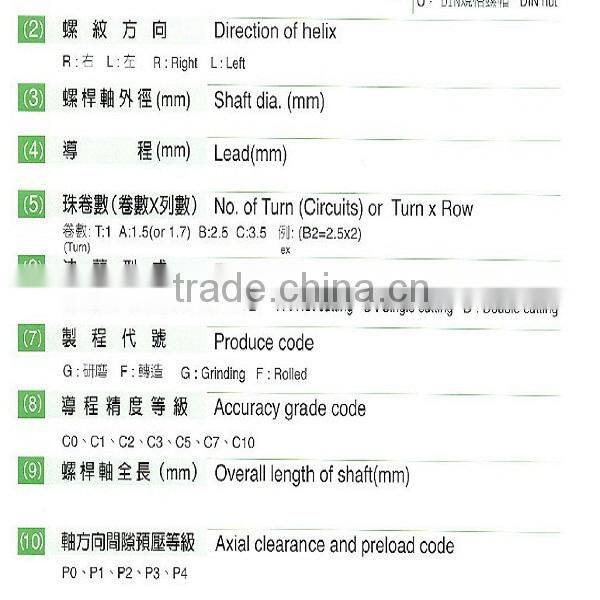

Specification number:

Ball bearing metric ball screw for lathe machineBall bearing metric ball screw for lathe machine





Dimension table for SFS series ball screws as follows:

  Ball bearing metric ball screw for lathe machine







Ball screw backlash different among P0/P1/P2:



P0: ±0.05mm to ,±0.12mm backlash is allowed in the ball screw nut. Ball screw nut can be slide down smoothly when ball screw assembly being in tilted 45 degrees. It is applied in normal automatic machines.



P1: ±0.002mm backlash is allowed in this class of backlash ball screw nut. Ball screw can be slide down slowly whenball screw assembly being in tilted 90 degrees. It is applied in high accuracy equipment and CNC. Only ball screw being machined in Beijing G.H.X Slide Hardware Products Co., Ltd can be adjusted P1 backlash for free. Ball screw not machined by us, backlash adjustment should be charged.



P2: zero backlash and -0.003 to -0.015 preload is exist. The ball screw nut can not slide down in tilted 90 degrees when being assembled, only can be moved manually; It is maily appliaed in CNC with shock and vibration state. P2 backlash will influence life of ball screw nut.



Ball screw and nut accuracy:



Variation per 300mm(e300) and wobble error(e2π) (JIS B 1192)



Grade

C0

C1

C2

C3

C5

C7

C10

e300

3.5

5

7

8

18

50

210

e2π

2.5

4

5

6

8













Packaging & Shipping

Packing: carton box

Shipping: By sea in 30 days and by air i 7 days.

Ball bearing metric ball screw for lathe machine









Our Services



Our Quality:
Quality is the life of Honesty. All products we sold out are strictly selected and tested by our QC department.
Warranty:
One year free packages or repair kit(non-artificial damage).
Payment:
We accept payment via TT (Bank transfer), Paypal and Western Union. We accept bank transfer for large orders. For small order, you'd better pay via Paypal, or Western union.

Shipping:
We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS, Airfreight and by Sea.







Buying Guides

Pls be kindly tell us the outer diameter, ball screw lead, accuracy do you need, if there is any drawing for the ball screw end, pls also email us. Price can be offer quickly with detailed requirement.








FAQ



1. Pls tell us the delivery for ball screw rod to our factory.

For small order quanttiy, delivery cost can be known based on the destination addres and post code.

For large order, delivery is usually by sea, so the quantity and detaild size is required for cost quotation.

2. Can sample available, pls? Yes, samples are paid by yourself if required.

3. Do you have ball screw end support, pls? Yes, we have a range of products like the ball screw supoort, shaft coupling, linear guide, cylinder linear guide rail, etc. Pls tell us the detailed requirement. We can assist you in all questions.
