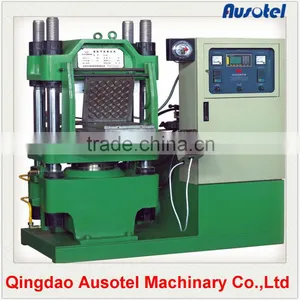

plate vulcanizing machine
Advantages:
- Advanced pressing and molding machine, and suitable for all kinds of rubber products vulcanizing.
- Adopt PLC control, human-machine interface, set parameters freely,reliable performance, and identify error command automatically to avoid accidents.
- Locking programmed, no changes in processing so as to ensure the quantity.
- Automatic time control and alarm, temperature adjustment, pressure compensation, etc.
- Heating method: electrical heating, steam heating,and oil heating.
- Operation: automatic operation and manual operation.
Technical parameters:
Type XLE-Q/D |
150T |
240T |
300T |
Total pressure(MN) |
1.5(150T) |
2.4(240T) |
3.0(300T) |
Heating pad size(mm) |
350×1950 |
500×1000 |
450×1000 |
Working layer number(layer) |
2 |
2 |
2 |
Max working hydraulic (Mpa) |
16 |
16 |
16 |
Max piston range(mm) |
320 |
150 |
150 |
Heating pad space(mm) |
350 |
200 |
200 |
Plate unit pressure(MPa) |
2.2 |
4.8 |
3 |
Motor power(Kw) |
8.5 |
3 |
5.5 |
Weight (kg) |
4500 |
6200 |
17000 |
External dimension LxWxH(mm) |
1950×1030×2240 |
1000×1400×2744 |
2260×1500×3025 |
Heating mode |
Steam and electrical heating |
Steam and electrical heating |
Steam and electrical heating |
Why choose us?
1.We are the manufacturers, and ensure products with high quality and low price.
2.Professional and strong r&d team,you need provide drawings and requirements only.
3.Reasonable production schedule and strict quality control before shipment.
4.Experienced sales and technicist provide you professional service at 24 hours.
Qingdao Ausotel Machinery Co., Ltd belongs to Li Hao group which owns 80000 square meters, more than 300 staffs, and 15 technicans and engineers.
Our main products are plate vulcanizing machine, molding machine, big belt two vulcanizing machine production line, can also produce all of the non-standard machinery products to adapt to the customer request.
Our principle is honesty, positive, pioneering and reliable, and will always based on good quality and reasonable prices to ensure customer satisfaction.
