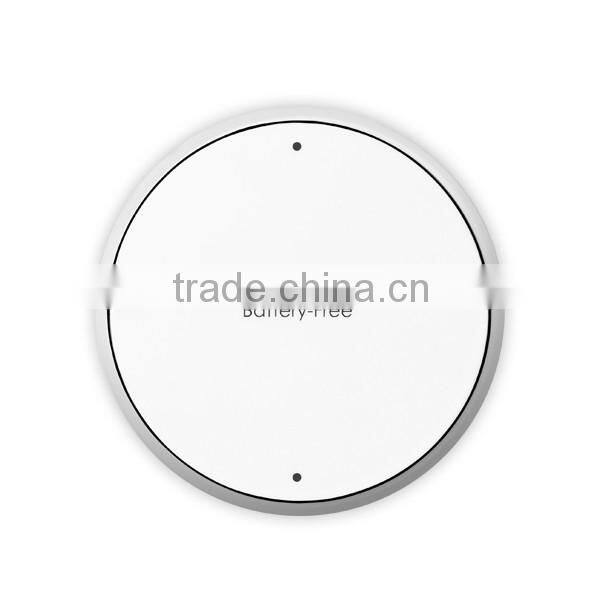

Simplelink energy harvest wireless light switch brands with remote control

FOB Price

USD $14 - $34 / Set

100 Sets(Min.Order)

Supply Ability 50000 Set / Sets per Month
Port Shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Model Number:	SIM1010-K11	Size:	70*15.5mm
Max. Current:	10A, 10A	Max. Voltage:	110V~250V, AC220V	Mechanical Life:	60 Years

Product Description

Simplelink Battery-Free & wireless switch:

Technology: RF and Energy harvesting Technology
Features: No wire, no batteries, no limits, waterproof, self powered, high safety and energy efficiency etc
Applications: Home automation, building construction, lighting/curtain/doorbell controls etc

Light dimmer switch parameters
Working Type:	Push button
Power Mode:	Self powered/Battery-Free
Control Distance:	20~30m
Frequency:	433MHz
Communication Mode:	FSK
Operating Temperature:	-5~40C
Operating Force:	7N
Dimensions	70*15.5mm
Weight	44g

Receiver parameters
Voltage range	AC 200~240V, 50~60Hz
Rated Current	10A
Sensitivity	-116dBm
Dimmensions	48*25mm
Weight	36g

Wireless switch description:

SimpleLink battery-Free Wireless switch is a new breakthrough technology product. This switch neither uses external power supply nor uses batteries. Just by clicking the keys to produce mechanical energy which will automatically be converted into electrical energy, so as to control lightings, doorbells, automatic curtains and other home appliances. The switch adopts wireless technology, no need embedded wires and easy to install.

Applications

Company Profile

SimpleLink is a partner you can trust for your Smart Home Solutions, we’ve been focusing inwireless field over 10

years. From the earliest WiFi, Bluetooth to ZigBee, LoRa, and these years we 've been delicated in developing

newest energy harvesting technology, such as wireless self powered light switch, smart lighting, battery-free

doorbell, wireless plug, automatic curtains control and other applications.

And we do make a great progress! With most professional engineer team and strong sourcing

team which ensure we can provide latest advanced products and very competitive price to our customers.

Exhibition

2 Gang switch

Package includes: 1pc 2 gang switch +

2pcs receivers

4 Gang switch

Package includes: 1pc 4 gang switch +
4pcs receivers

Dimmer light

Package includes: 1pc 4 gang switch +

1pc dimmer light

Certifications

Packing & Delivery

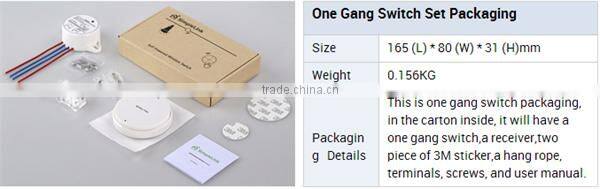

Unit packaging

Package

Loading and delivery

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer with experienced engineer team and strong supply chain.

2. No Battery, how it works?

When press the switch, mechanical energy convert into electric energy, to send out a radio signal to the receiver and then to control the lights On/Off.

3. Is there any guide to show how to use the switch?

Yes, you can watch our vedio on Youtube and understand how to use our switch: https://youtu.be/K9wyf5MUEOM

4. How many lights the switch can control?

Normally One gang switch can control one light, two gang switch can control two lights, three gang switch control three switch, four gang switch control four lights. Also can two switches or many switches in different position control one light. If one switch control many lights, the lights should connect in series, turn on/off at same time.
If the lights all are separate, it is also available in theory, but because of the environment factors, it maybe not stable.

5. What is the control distance?

Normally our standard device control distance is 20M~30M, through the wall available.
If you need longer distance, please contact us for customized design.

6. Do you supply switches with 868 or 915MHz bands?

Yes, currently the most common one used in our switches is 433MHz,While we can also customize other bands(like 868/915MHz bands) according to your special demands.
