Specifications
sh 60x80 80x1002hot dip galvanized 260g/mm2
3.ISO 9001 GBS
4.high quality low price
5.700 piece one 20ft
High quality gabion basket (factory )
Gabion Basket

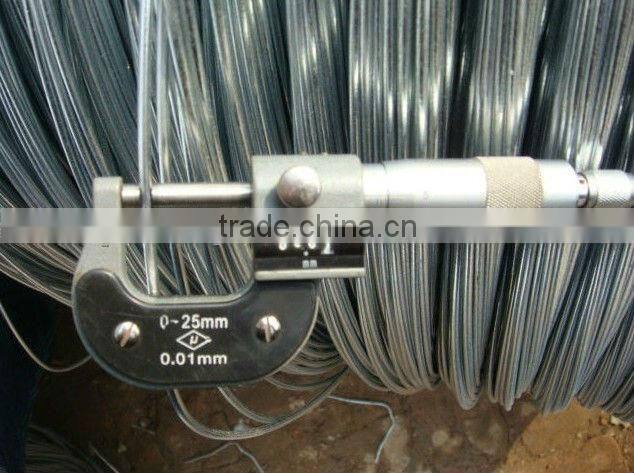

Wire
All tests on wire must be performed prior to manufacturing the mesh. All wire should comply with ASTM A975-97, style 3 coating, Galfan and PVC coated steel wire. Wire used for the manufacture of Gabions and the lacing wire, shall have a maximum tensile strength of 75 000 psi (515 MPa) as per ASTM A856-03, soft temper steel.
Features
· Economic.
· Just fill the stone into the Gabions and seal it.
· Simple installation.
· No special technology needed.Weather proof under natural destroy, corrosion resistant.
· No collapse even under big scope of deforming.
· Sludge in the stones is good for plant growing.
· Mixed to form a integrity with the natural environment.Good permeation can prevent the damage by hydrostatic.
· Less transport freight. It can be folded together for transport and further installation.
Gabion Baskets applications
· Control and guide of water or flood
· Flood bank or guiding bank
· Preventing of rock breaking
· Bridge Protection
· Water and soil protection
· Coast protection
· Seaport engineering
· Strengthening structure of soil
· Protection of road
WIRE THICKNESS SPECS
Characteristics |
Metallic coated |
PVC coated |
Metallic coated |
PVC coated |
Mesh type |
8*10cm |
6*8cm |
||
Mesh openings |
83mm x 114mm 8 x 10 |
83mm x 114mm 8 x 10 |
64mm x 83mm 6x8 |
64mm x 83mm 6x8 |
Mesh wire |
2.7mm (0.106 in.) |
3.05mm( 0.120 in.) |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
Selvage wire |
3.4mm (0.134 in.) |
3.8mm (0.150 in.) |
2.7mm (0.105 in.) |
2.7mm (0.105 in.) |
Lacing wire |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
2.2mm(0.087 in.) |
Size of gabion box and size of gabion:
Gabion Box | |||
Opening |
Wire Diameter(Metal Wire) |
Wire Diameter (PVC Coated)/ |
Strands |
60X80 |
f2.0-2.8 |
f2.0/3.0-2.5/3.5 |
3 |
80X100 |
f2.0-3.2 |
f2.0/3.0-2.8/3.8 |
3 |
80X120 |
f2.0-3.2 |
f2.0/3.0-2.8/3.8 |
3 |
100X120 |
f2.0-3.4 |
f2.0/3.0-2.8/3.8 |
3 |
100X150 |
f2.0-3.4 |
f2.0/3.0-2.8/3.8 |
3 |
120X150 |
f2.0-4.0 |
f2.0/3.0-3.0/4.0 |
3 |
Size |
Notes |
Tolerance |
|||
length(m) |
width(m) |
high(m) |
(unit) |
volume(m3) |
+/-3% |
2.00 |
1.00 |
0.30 |
1 |
0.60 |
|
3.00 |
1.00 |
0.30 |
2 |
0.90 |
|
4.00 |
1.00 |
0.30 |
3 |
1.20 |
+/-5% |
2.00 |
1.00 |
0.50 |
1 |
1.00 |
|
3.00 |
1.00 |
0.50 |
2 |
1.50 |
|
4.00 |
1.00 |
0.50 |
3 |
2.00 |
|
1.00 |
1.00 |
1.00 |
0 |
1.00 |
+/-5% |
1.50 |
1.00 |
1.00 |
0 |
1.50 |
|
2.00 |
1.00 |
1.00 |
1 |
2.00 |
|
3.00 |
1.00 |
1.00 |
2 |
3.00 |
|
4.00 |
1.00 |
1.00 |
3 |
4.00 |
|
Gabion Basket

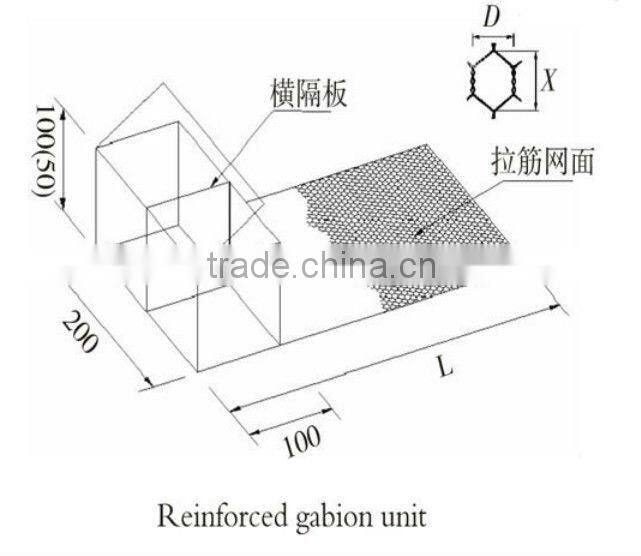

Reinforced gabion Application:
Reinforced gabion is a versatile modular system used for soil reinforcement applications such as mechanically stabilized earth (MSE) walls; reinforced slope systems (RSS) and soil reinforcement. It is used for commercial, industrial, roadworks, erosion control and bank stabilization.
Reinforced gabion rely upon the steel mesh placed horizontally within the slope with backfill compacted upon it. The gabion type facing element of the Reinforced gabion is fully integrated with the steel mesh reinforcement and is dependent upon the final use of the structure. The double twist wire mesh reinforcement takes advantage of the friction acting along the surface of the wire and, more importantly, the mechanical interlocking properties of the backfill.
For durability, the zinc coated wire mesh is protected by a polymeric barrier made of PVC.
