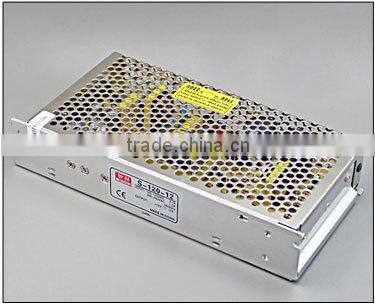

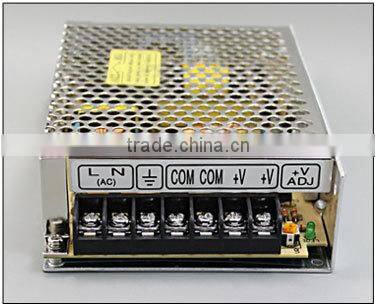

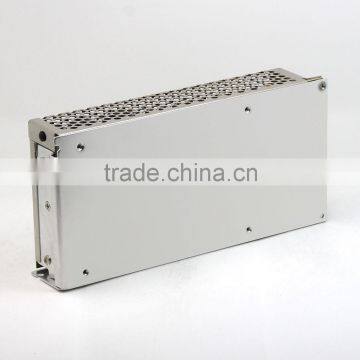

Different Types Solar Power Inverter With Charger Input 220v Switch Power

Name: Different Types Solar Power Inverter With Charger Input 220v Switch Power
Brand: WEHO
SKU: 120503669
Availability: InStock

Zhejiang Weihao Electronic Co., Ltd.

US$ 8 - 12 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

WEHO

Model Number:

S-120-48

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name WEHO

Model Number S-120-48

Output Power 101 - 200W

Output Type Single

Input Voltage Other, 110V/220V, 110/220VAC

Output Voltage 48V

Output Frequency 50/60HZ

Output Current 2.5A

Different types Solar Power Inverter With Charger Input 220v Switch Power

Model Specification	S-120-12	S-120-15	S-120-24	S-120-48
DC output	12V 10A	15V 8A	24V 5A	48V 2.5A
Wave and noise	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	0.3%	0.3%	0.2%	0.2%
Load stability	0.3%	0.3%	0.2%	0.2%
Efficiency	81%	82%	84%	84%
Adjustable range for DC voltage	10%	10%	10%	10%
AC input voltage range	85~132VAC/170~264VAC Selected by switch 47~63Hz,240~370VDC
AC input voltage range	Cold-start current 30A/115V 60A/230V
OverLoad protection	105%~150% hiccup mode,auto-recovery
OverLoad protection	115%~135% rated output voltage
Setup,rise,hold up time	200ms 50ms 20ms
Withstand voltage	I/P-O/P:1.5Kv I/P-FG:1.5Kv O/P-FG:0.5Kv 1minute
Isolation resistance	I/P-O/P I/P-FG O/P-FG:500VDC/100M
Working temperature	-10C~+50C
Safety standards	Design refer to GB4943,UL60950,EN60950
EMC standards	Design refer to GB9254,EN55022 classB
Weight	0.63kg
