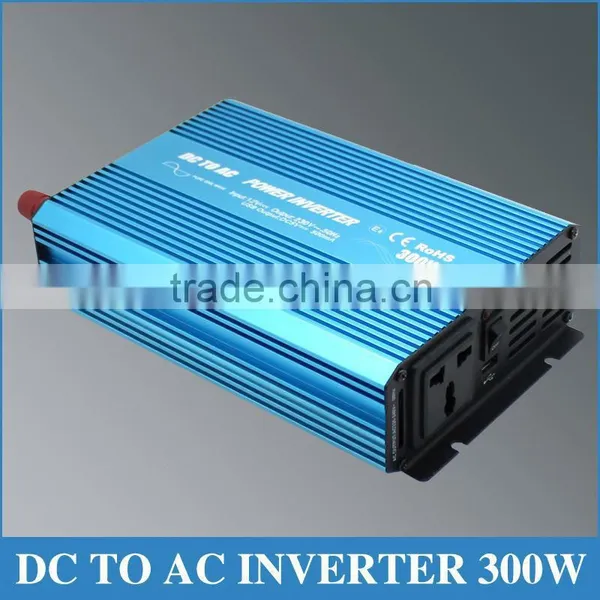

Different Types 300w Ups Pure Sine Wave Inverter

Different Types 300w Ups Pure Sine Wave Inverter thumbnail-1
Different Types 300w Ups Pure Sine Wave Inverter photo-1
US$ 55 - 60 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WH
Model Number:
WH300w-122
Contact Supplier Request Quote Chat Now
Zhejiang Weihao Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name WH
Model Number WH300w-122
Output Power 801 - 1000KW
Output Type Single
Size 190x122x50mm(L*W*H)
Weight 820g
Input Voltage 110V/230V
Output Voltage 12V/24V
Type DC/AC Inverters
Output Frequency 50/60Hz±3
Output Current USB Port:5V, 500mA(Optional)

Specifications

300w ups pure sine wave inverter
1.CE Standard, High Quality
2.Experienced power inverter manufacture
3.Soft Start

300w ups pure sine wave inverter

CE WH Series-Pure sine wave power inverter WH-1000W:



 Products Description :
WH pure sine wave inverter offering superior quality true sine wave output, it is designed to operate popular power tools and sensitive loads. Connect WH300W pure sine wave inverter with battery terninals,then you can get AC power for your appliances,the AC output identical to, and in some cases better than the power supplied by your utility.
Products Features:
·Input & output fully insolated
·High Surge: high surge current capability starts difficult loads such as TVs,camps,motors and other inductive loads,
·Grounding Protection : there is terminal in front panel,you can grouding the inverter.
·Soft start : smooth start-up of the appliances.
·Pure sine wave output waveform : clean power for sensitive loads.
·AC output identical to, and in some cases better than the power supplied by your utility
·Cooling fan in the inverter is thermally activated and comes on when the inverters becomes warm,and turns off automatically after the inverter has cooled.
·Low total harmonic distortion : below 3%

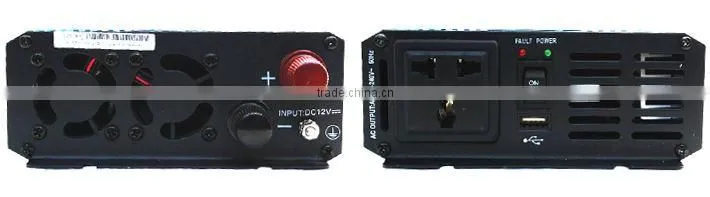

·Two LED indicators on the front panel shows the working and failure state.
Protection Function :
·Low voltage alarm & Shutdown
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse Polarity protection
·Soft start
·Auto.reset after being in protected
·Grounding  protection

Product parameters



Model
WH300W-121
WH300W-122
WH300W-241
WH300W-242
Rated Power
300W
Peak Power
600W
Output Voltage
110V
230V
110V
230V
Frequency
50/60Hz±3
USB Port
5V,500mA(Optional)
Output Waveform
Pure Sine Wave
Protection Function
Bat.Low Voltage Alarm&Shut Down,Overload,Over Temperature,Overvoltage,ShortCicuit,Reverse Polarity
Input Voltage
12V
24V
Dimension
190×122×50mm(L×W×H)
N.W./unit
820g
QTY/Ctn
24Pcs
Packing
Gift box
Meas./Ctn
55.5×34.5×38cm
Warranty
2 years




Socket and Plug


Package

we use 4 trips to reinforce our carton,

the international standards package methods guaranteed our goods safety during transportation
