Specifications
Light-duty warehouse shelvingUsed in industrial
W1500*D500*H2000mm
Material: Steel
Certified by ISO9001 and CE
warehouse storage light duty shelving
Description
1) Appropriate for picking heavy goods by pallet.
2) High strength and durability.
3) High precision rolling components.
4) Easy for complete installation.
5) Araldite static powder coating.
6) Abundant accessories.
7) Every layer of the board can be adjusted freely.
8) Color and size can be adjusted according to your requirements.
9) The heavy-duty standing posts is good looking and anti-rust with fine powder-coating.
10) Different thickness, size, layers & colors are available.
11) Procedure: Moulding+ Acid cleaning/ Sand cleaning+ Phosphating+ Degrease+ Dryness+ Powder coat+ Polymerization
Specification
model |
light storage rack ( mm) |
middle storage rack |
heavy storage rack |
heavy storage rack |
heavy storage rack |
specification |
1500*500*2000 |
2000*600*2000 |
2000*800*3000 |
2000*800*3000 |
2000*800*3000 |
size of upright |
30*50 |
30*80 |
60*80 |
70*90 |
70*90 |
size of bunton |
30*50 |
40*80 |
50*80 |
50*110 |
50*120 |
thickness(upright) |
1.0 |
1.2 |
2.0 |
2.5 |
2.5 |
thinkness(borad) |
0.5 |
0.5 |
1.0 |
1.0 |
without |
|
thinkness bunton |
1.0 |
1.2 |
2.0 |
2.5 |
2.5 |
capacity/level |
150KG |
300KG |
1000KG |
1500KG |
2000KG |
layer |
4 |
4 |
3 |
3 |
3 |

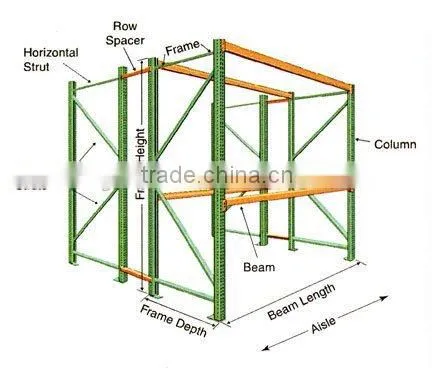

Beam Feature
4 holes 11"*2"*5" P shape beam,slotted connection&bolted connection. Beams can be adjusted every 2".
A,Hot rolled steel moulding, bearing evenly.
B,Various specification and load capacity to meet different storage requirements.
C,Beam hitch steel’s teeth are designed to different direction; this not only makes the teeth for increased rigidity.
D,Connection between beams and pillars are performed by safety bolts and clips.
E,Optional accessory is nameplate holder.
Upright feature
In clined beam has two type longer,one is used loosely for the upper of the rack,the shorter densely for the lower to improve the bearance and solidity.
A,Polyhedron with thirteen faces.
B,Pitch is 50 mm, beam is adjustable.
C,Triangle hole easily tightens to hitch steel and strengthens the load capacity of posts.
Bracing: the horizontal and diagonal bar on standing colunm is square tube,no C-shaped ,square tube is 30*50 ,30*30.,etc.
Support: Used for placing mesh box and metal container etc. with stacking feet, safe and reliable.
Wood shelf and support bar :The plywood, 20mm thick, is in the salience of knighthead. Each pallet has a pair of knighthead.
Metal shelf: The steel material: cold rolling steel ,SPCC, DC01, ST12,Q195, the steel thickness ranges from 0.6mm to 1.2mm,
Safety locker: Locker, bolted,pin for making racks stability,more strong.
Protector/ barrier: Located at the sides or corners of shelving to be away from impact by forklift.
Pallet stopper: For pallet stop, specially for forklift in top oppration.
Row-spacer :Row-spcaer, to be two lines rack connected.
|

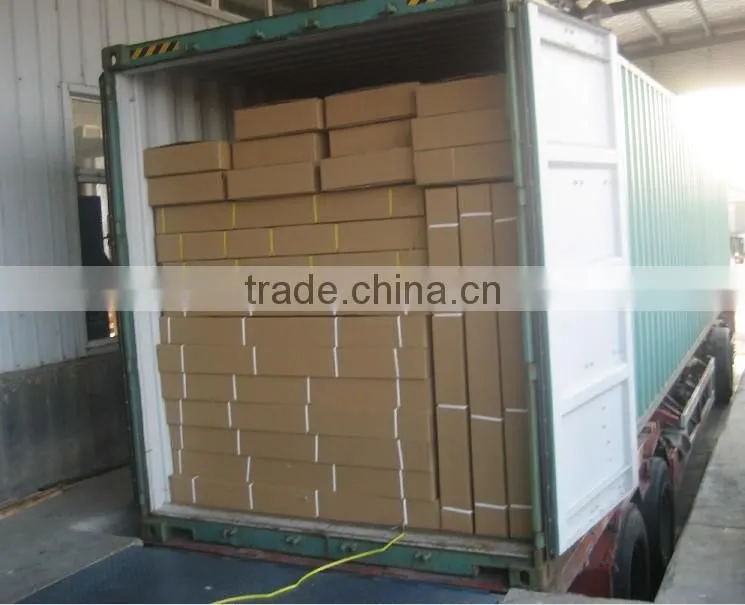

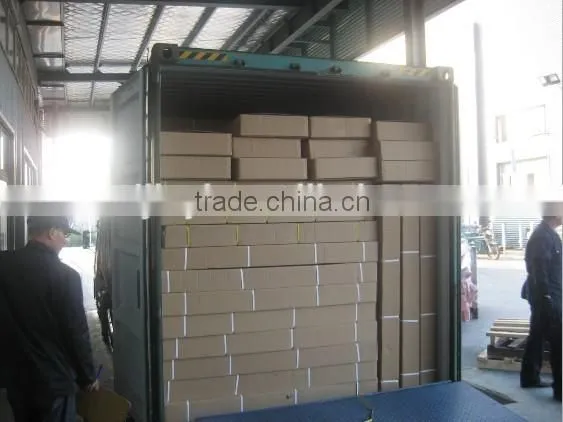

Packing |
Beams: 8 pcs/package by bubble film. Uprights/posts: 2 pcs/package by bubble film. Shelves: 8 pcs/carton. Safe for long-distance transportation. |
MOQ |
10sets |
Delivery time |
Within 10-15 workday upon receipt of the deposit or original L/C. |
Payment term |
30% deposit, the balance against copy of B/L Or 100% irrevocable L/C at sight |
Loading port |
Shanghai, China |
Supply Ability |
1000 pieces per week. |
Please offer us the following details, so we can give you the exact quotation:
1) Size of your warehouse;
2) Full details of size:W*D*H;
3) The quantity bays you need;
4) How many layers/set you want;
5) Loading capacity of each layer;
6) RAL color you require;
7) Drawing (if available).
