Home > Products > current transformer > high voltage low current flexible transformer MSQ-30B amc current transformer

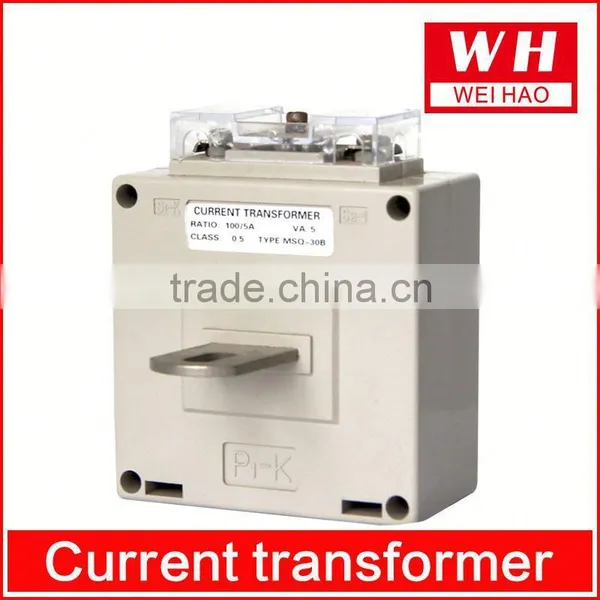

high voltage low current flexible transformer MSQ-30B amc current transformer
- 200000 Piece / Pieces per Month
- ningbo shanghai
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | WeiHao | Model Number: | MSQ-30B |
Usage: | Current | Phase: | Single | Coil Structure: | Toroidal |
Coil Number: | Autotransformer |
Product Description
Specifications
amc current transformer1 CE approved.
2.OEM/ODM available
3.Color customized
4.2 years warranty
amc current transformer
current sense transformer Product Description
Model | A | B | C | D | E | F | G | H |
MSQ-30(small) | 60 | 36 | 67 | 17 | 60 | 31 | 10 | 59 |
MSQ-30 | 75 | 43 | 82 | 17 | 60 | 31 | 10 | 71 |
MSQ-40 | 75 | 43 | 82 | 17 | 60 | 31 | 10 | 71 |
MSQ-60 | 101 | 44 | 111 | 17 | 60 | 31 | 10 | 71 |
MSQ-100 | 145 | 45 | 139 | 17 | 60 | 31 | 10 | 72 |
MSQ-130 | 196 | 46 | 210 | 17 | 60 | 34 | 11 | 72 |
Model | Rated Current(A) Primary/Secondary | Busbar Hole Dimension | Rated Burden(VA) | Accuracy Class | Rated Voltage(V) | Rated Frequency (Hz) |
MSQ-30 | 30/5A-300/5A | 30×10mm | 1.5-2.5 | 3.0~0.5 | 600 | 50/60 |
MSQ-40 | 150/5A-800/5A | 40×10mm | 5-10 | 1.0~0.5 | 600 | 50/60 |
MSQ-60 | 400/5A-1200/5A | 60×20mm | 5-10 | 1.0~0.5 | 600 | 50/60 |
MSQ-100 | 800/5A-3000/5A | 100×10mm | 15 | 1.0~0.5 | 600 | 50/60 |
MSQ-130 | 1500/5A-5500/5A | 130×10mm | 15 | 1.0~0.5 | 600 | 50/60 |
current sense transformer Model show:
current sense transformer Packaging & Shipping
current sense transformer Company Information
current sense transformer approved :
current sense transformer our team:
current sense transformer Our Services
current sense transformer FAQ
Terms and Conditions:
1. Prices are FOB NingBo, ShangHai .
2. MOQ: 1pcs
3. Lead Time:sample have instock ,3~5days depending on order quantity.
4. Package: Standard Export package for long-distant ocean shipment and tough handling.
5. Warranty: 2 years
