Help CenterHigh Efficiency and Ultra Thin Power Supply 5v (SMB-10-5)
Related Products
-
Single Output 10W 5VDC 5A Switching Power Supply With CE ROHS ApprovedUS$ 1 - 4MOQ: 100 Pieces -
SMB-10-12 10W 12VDC Output Power Supply With 2 Years WarrantyUS$ 1 - 4MOQ: 60 Pieces
-
SMB-10-15 Slim Ultra Thin Type 10W 15VDC Output Power SupplyUS$ 1 - 4MOQ: 60 Pieces
-
Hot Sale SMB-10-24 Slim Type 10W 24VDC Output Power SupplyUS$ 1 - 4MOQ: 60 Pieces
-
Slim Single Output 10W 5VDC 5A LED Driver With CE ROHS ApprovedUS$ 1 - 4MOQ: 100 Pieces
· 1. AC input voltage range selected by switch
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit,over load
· 4. LED indicator for power on
· 5. 100% full lrad burn-in test
· 6. 2 years warranty

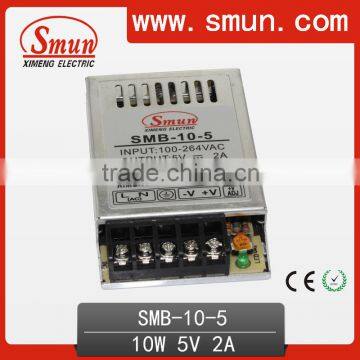

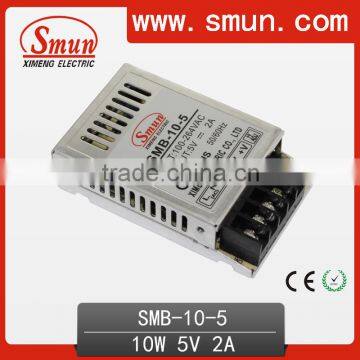

High efficiency and ultra thin power supply 5v (SMB-10-5)
| MODEL |
SMB-10-5 |
SMB-10-12 |
SMB-10-15 |
SMB-10-24 |
|
| OUTPUT |
DC VOLTAGE |
5V |
12V |
15V |
24V |
| RATED CURRENT |
2A |
0.83A |
0.67A |
0.42A |
|
| RATED POWER |
10W |
10W |
10W |
10W |
|
| RIPPLE&NOISE |
12mVp-p |
12mVp-p |
70mVp-p |
240mVp-p |
|
| VOLTAGE ADJ.RANGE |
4.75-5.5V |
10.8-13.2V |
13.5-16.5V |
21.6-26.4V |
|
| VOLTAGE TOLERANCE |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
| LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
| LOAD REGULATION |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
|
| SETUP,RISE TIME |
500ms,20ms/230VAC |
||||
| HOLD UP TIME(TYP.) |
30ms/230VAC 25ms/115VAC at full load |
||||
| INPUT |
VOLTAGE RANGE |
90-260VAC 240-373VDC |
|||
| FREQUENCY RANGE |
47-440HZ |
||||
| EFFICIENCY(Typ.) |
74% |
74% |
78% |
78% |
|
| AC CURRENT(Typ.) |
1.6A/115V 0.8A/230VAC |
||||
| INRUSH CURRENT |
COLD START 18A/115V 36A/230V |
||||
| LEAKAGE CURRENT |
0.5mA/240VAC |
||||
| PROTECTION |
OVERLOAD |
105-150% RATED OUTPUT POWER |
|||
| Protection type:Hiccup mode,recovers automatically after fault condition | |||||
| OVER VOLTAGE |
5.75V-6.75V |
13.8V-16.2V |
17.2V-20.25V |
27.6V-32.4V |
|
| Protection type:Hiccup mode,recovers automatically after fault condition | |||||
| ENVIRONMENT |
WORKING TEMP |
-10~+60°C |
|||
| WORKING HUMIDITY |
20-90%RH non-condesing |
||||
| STORAGE TEMP,HUMIDITY |
-20~+85°C,10-95%RH |
||||
| TEMP.COEFFICIENT |
±0.03%°C(0-50°C) |
||||
| VIBRATION |
10-500HZ |
||||
| SAFETY&EMC |
SAFETY STANDARD |
CE RoHS |
|||
| WITHSTAND VOLTAGE |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute |
||||
| ISOLATION RESISTANCE |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH |
||||
| EMI CONDUCTION&RADIATION |
Design refer to GB4943,UL60950,EN60950 |
||||
| EMC STANDARD |
Design refer to GB9254,EN55022 Class A |
||||
| DIMENSION |
L80*W48*H22mm |
||||
| PACKING |
0.09KG |
||||
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide cust service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz
