Help CenterSmall Size of 28v dc Power Supply(SMB-50-24)
Related Products
-
5v 10a Ultra Thin Switching Power Supply(SMB-50-5)US$ 1 - 10MOQ: 100 Pieces -
Ultra-thin Single Output Switching Power Supply SMB-20-12US$ 4 - 5MOQ: 60 Pieces
-
Small Size of Power Factor Correction Equipment 5v (SMB-70-5)US$ 1 - 10MOQ: 100 Pieces
-
Small Size of Power Adaptor Safety Mark 12v(SMB-70-12)US$ 1 - 10MOQ: 100 Pieces
-
Small Size of 220v 24v Power Supply(SMB-70-24)US$ 1 - 10MOQ: 100 Pieces
· 1. AC input voltage range selected by switch
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit,over load
· 4. LED indicator for power on
· 5. 100% full lrad burn-in test
· 6. 2 years warranty

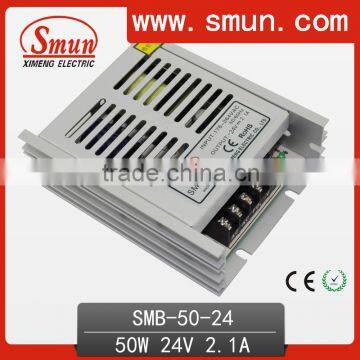

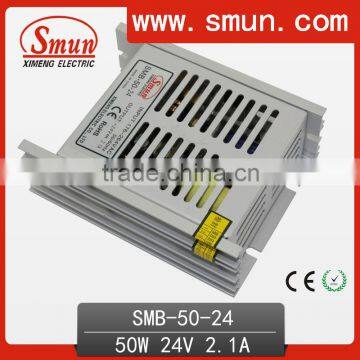

Small size of 28v dc power supply(SMB-50-24)
| Model |
|
SMB-50-5 | SMB-50-12 | SMB-50-24 | SMB-50-48 |
| Output | DC output Voltage | 5V | 12V | 24V | 48V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Rated Current | 10A | 4.2A | 2.1A | 1.0A | |
| Related Power | 50w | 50w | 50w | 50w | |
| Wave&Noise | 50mVp-p | 50mVp-p | 70mVp-p | 70mVp-p | |
| Adjustable DC Voltage | ±10% | ±10% | ±10% | ±10% | |
| Set up,rise,hold up time | 200ms 100ms 30ms | ||||
| Input | Voltage Range | 170-264VAC 47-63HZ 240-370VDC | |||
| Input Current | 0.5A/230VAC | ||||
| Efficiency | 78% | 80% | 84% | 87% | |
| AC inrush current | Cold start current 50A /230VAC | ||||
| Leakage current | <0.5mA/240VAC | ||||
| Protection | Overload | Related output power 105-150% start overload protection | |||
| Protection type: cutoff output, recovery after restart power | |||||
| Over voltage | 5.75V-6.75V | 13.8V-16.2V | 27.6V-32.4V | 55.2V-64.8V | |
| Hiccup mode,recovers automatically after fault condition | |||||
| Environment | Working temp humidity | -10~+60°C 20%~90%RH | |||
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing | ||||
| Safety | Withstand voltage | I/P-O/P:1.5KVAC 1min | |||
| I/P-FG:1.5KVAC 1min | |||||
| O/P-FG:0.5KVAC 1min | |||||
| Standard | Safety standard | Fit UL1012 | |||
| Refer | Design refer to GB4943,UL60950,EN60950 | ||||
| EMC standard | Design refer to GB9254,EN55022 Class A | ||||
| Size | size | L112*W88*H34mm | |||
| Package | 0.3kg | ||||
| Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 DEGREE of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation. | |||||
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide cust service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz
