Help CenterSmall Size of 110v dc Power Supply 48v(SMB-120-48)
Related Products
-
Small Size of Smps Transformer(SMB-120-24)US$ 1 - 10MOQ: 100 Pieces -
48v dc Switching Power Supply(SMB-120-48)US$ 1 - 10MOQ: 100 Pieces
-
Small Size of Lambda Power Supplies 5v (SMB-50-5)US$ 1 - 10MOQ: 100 Pieces
-
Small Size of 12 Volt 5 Amp Power Supply(SMB-50-12)US$ 1 - 10MOQ: 100 Pieces
-
Small Size of Switch Mode Power Supply 48v(SMB-50-48)US$ 1 - 10MOQ: 100 Pieces
· 1. AC input voltage range selected by switch
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit,over load
· 4. LED indicator for power on
· 5. 100% full lrad burn-in test
· 6. 2 years warranty

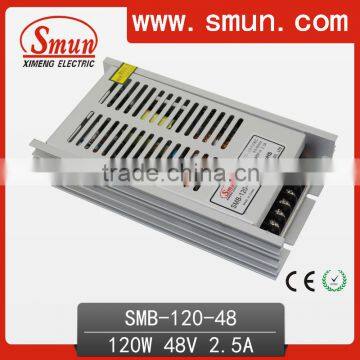

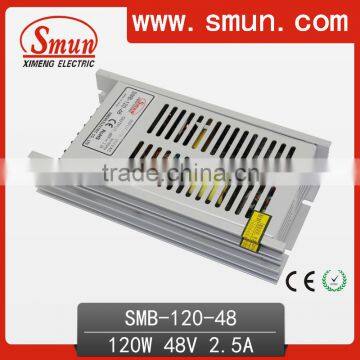

Small size of 110v dc power supply 48v(SMB-120-48)
| MODEL |
SMB-120-5 |
SMB-120-12 |
SMB-120-15 |
SMB-120-24 |
|
| OUTPUT |
DC VOLTAGE |
5V |
12V |
15V |
24V |
| RATED CURRENT |
24A |
10A |
8A |
5A |
|
| RATED POWER |
120W |
120W |
120W |
120W |
|
| RIPPLE&NOISE |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
|
| VOLTAGE ADJ.RANGE |
4.75-5.5V |
10.8-13.2V |
13.5-16.5V |
21.6-26.4V |
|
| VOLTAGE TOLERANCE |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
| LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
| LOAD REGULATION |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
|
| SETUP,RISE TIME |
300ms,50ms/230VAC 800ms,50ms/115VAC at full load |
||||
| HOLD UP TIME(TYP.) |
90ms/230VAC 12ms/115VAC at full load |
||||
| INPUT |
VOLTAGE RANGE |
85-264VAC 120-370VDC |
|||
| FREQUENCY RANGE |
47-63HZ |
||||
| EFFICIENCY(Typ.) |
81% |
81% |
84% |
84% |
|
| AC CURRENT(Typ.) |
2.4A/115VAC 1.2A/230VAC |
||||
| INRUSH CURRENT |
COLD START 30A/115VAC 60A/230VAC |
||||
| LEAKAGE CURRENT |
1mA/240VAC |
||||
| PROTECTION |
OVERLOAD |
105-150% RATED OUTPUT POWER |
|||
| Protection type:Hiccup mode,recovers automatically after fault condition | |||||
| OVER VOLTAGE |
5.75V-6.75V |
13.8V-16.2V |
17.2V-20.25V |
27.6V-32.4V |
|
| Protection type:Hiccup mode,recovers automatically after fault condition | |||||
| ENVIRONMENT |
WORKING TEMP |
-10~+60°C |
|||
| WORKING HUMIDITY |
20-90%RH non-condesing |
||||
| STORAGE TEMP,HUMIDITY |
-20~+85°C,10-95%RH |
||||
| TEMP.COEFFICIENT |
±0.03%°C(0-50°C) |
||||
| VIBRATION |
10-500HZ |
||||
| SAFETY&EMC |
SAFETY STANDARD |
CE RoHS |
|||
| WITHSTAND VOLTAGE |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute |
||||
| ISOLATION RESISTANCE |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH |
||||
| EMI CONDUCTION&RADIATION |
Design refer to GB4943,UL60950,EN60950 |
||||
| EMC STANDARD |
Design refer to GB9254,EN55022 Class A |
||||
| DIMENSION |
L160*W88*H38mm |
||||
| PACKING |
0.45kg,30pcs/15kg | ||||
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide cust service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz
