Ultra-thin of ip Power Switch 20w 5v 4a (SMB-20-5)

Ultra-thin of ip Power Switch 20w 5v 4a (SMB-20-5) thumbnail-1
Ultra-thin of ip Power Switch 20w 5v 4a (SMB-20-5) thumbnail-2
Ultra-thin of ip Power Switch 20w 5v 4a (SMB-20-5) thumbnail-3
Ultra-thin of ip Power Switch 20w 5v 4a (SMB-20-5) photo-1

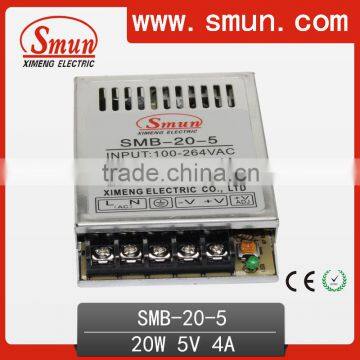

Ultra-thin of ip Power Switch 20w 5v 4a (SMB-20-5) photo-2

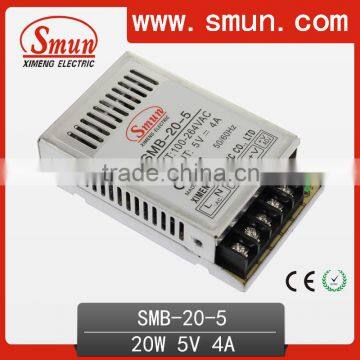

Ultra-thin of ip Power Switch 20w 5v 4a (SMB-20-5) photo-3
US$ 1 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Smun
Model Number:
SMB-20-5
Contact Supplier Request Quote Chat Now
Zhejiang Ximeng Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Smun
Model Number SMB-20-5
Output Power 1 - 50W
Output Type Single
Input Voltage Other, 110V/220V
Output Voltage 5V
Output Frequency 47-63HZ
Output Current 4A
Welcome

Ultra-thin of ip power switch 20w 5v 4a (SMB-20-5)

Instruction

Ultra-thin of ip power switch 20w 5v 4a (SMB-20-5)Ultra-thin of ip power switch 20w 5v 4a (SMB-20-5)

Features

Ultra-thin of ip power switch 20w 5v 4a (SMB-20-5)

· 1. AC input voltage range selected by switch

· 2. Small Volume,low weight,high efficiency

· 3. Protections:Short circuit,over load

· 4. LED indicator for power on

· 5. 100% full lrad burn-in test

· 6. 2 years warranty

Product Description

Ultra-thin of ip power switch 20w 5v 4a (SMB-20-5)

Ultra-thin of ip power switch 20w 5v 4a (SMB-20-5)



MODEL
 		 SMB-20-5
 		 SMB-20-12
 		 SMB-20-15
 		 SMB-20-24

OUTPUT
 		 DC VOLTAGE
 		 5V
 		 12V
 		 15V
 		 24V

RATED CURRENT
 		 4A
 		 1.67A
 		 1.33A
 		 0.84A

RATED POWER
 		 20W
 		 20W
 		 20W
 		 20W

RIPPLE&NOISE
 		 50mVp-p
 		 50mVp-p
 		 50mVp-p
 		 50mVp-p

VOLTAGE ADJ.RANGE
 		 4.75-5.5V
 		 10.8-13.2V
 		 13.5-16.5V
 		 21.6-26.4V

VOLTAGE TOLERANCE
 		 ±1.0%
 		 ±1.0%
 		 ±1.0%
 		 ±1.0%

LINE REGULATION
 		 ±0.5%
 		 ±0.5%
 		 ±0.5%
 		 ±0.5%

LOAD REGULATION
 		 ±1.0%
 		 ±0.5%
 		 ±0.5%
 		 ±0.5%

SETUP,RISE TIME
 		 500ms,20ms/230VAC

HOLD UP TIME(TYP.)
 		 30ms/230VAC 25ms/115VAC at full load

INPUT
 		 VOLTAGE RANGE
 		 90-260VAC 240-373VDC

FREQUENCY RANGE
 		 47-440HZ

EFFICIENCY(Typ.)
 		 77%
 		 79%
 		 85%
 		 87%

AC CURRENT(Typ.)
 		 1.6A/115V 0.8A/230VAC

INRUSH CURRENT
 		 COLD START  50A/220V

LEAKAGE CURRENT
 		 0.5mA/240VAC

PROTECTION
 		 OVERLOAD
 		 105-150% RATED OUTPUT POWER

Protection type:Hiccup mode,recovers automatically after fault condition

OVER VOLTAGE
 		 5.75V-6.75V
 		 13.8V-16.2V
 		 17.2V-20.25V
 		 27.6V-32.4V

Protection type:Hiccup mode,recovers automatically after fault condition

ENVIRONMENT
 		 WORKING TEMP
 		 -10~+60°C

WORKING HUMIDITY
 		 20-90%RH non-condesing

STORAGE TEMP,HUMIDITY
 		 -20~+85°C,10-95%RH

TEMP.COEFFICIENT
 		 ±0.03%°C(0-50°C)

VIBRATION
 		 10-500HZ

SAFETY&EMC
 		 SAFETY STANDARD
 		 CE RoHS

WITHSTAND VOLTAGE
 		 I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute

ISOLATION RESISTANCE
 		 I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH

EMI CONDUCTION&RADIATION
 		 Design refer to GB4943,UL60950,EN60950

EMC STANDARD
 		 Design refer to GB9254,EN55022 Class A

DIMENSION
 		 L95.6*W58*H25mm

PACKING
 		 0.155KG







Inner Structure

Ultra-thin of ip power switch 20w 5v 4a (SMB-20-5)

Certifications

Ultra-thin of ip power switch 20w 5v 4a (SMB-20-5)

Our Services

Ultra-thin of ip power switch 20w 5v 4a (SMB-20-5)

1.Your email will be replied with 24 hours

2.All qustions will be answered by our power supply engineer.

3.We have strictly management on the production and quality control.

4.We are real factory and have professional engineer team,can provide cust service.

>More than 500 pieces,can print logo on the products.

>More than 2000 pieces,can customize the package.

5.We have independent IMP&EMP rights.

6.Sample available.

7.Warranty Clarify:

>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.

>We will send a new one to you if product can't work as quality problem in first year after comfirmation.

>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.

8.Shipping methods:By sea,by air,by express.

9.Customized accepted.

>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.

>Output voltage:5V,9V,12V,15V,24V,36V,48V.

>Frequency:47-63Hz
