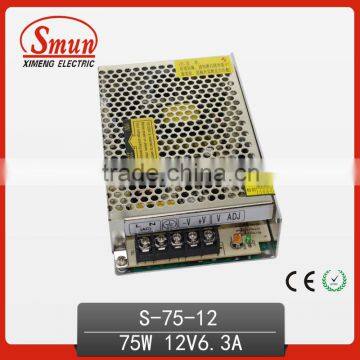

75W 12V 6A DC Output Switching Power Supply S-75-12
· 1. AC input voltage range selected by switch
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit,over load
· 4. LED indicator for power on
· 5. 100% full lrad burn-in test
· 6. 2 years warranty
| S-75W Single output switching power supply | ||||
|
Model NO. |
OUTPUT |
Tolerance |
range |
efficiency |
| S-75-5 | 5V, 0-15A | ± 1% | 100mV | 68% |
| S-75-12 | 12V, 0-6.3A | ± 1% | 100mV | 68% |
| S-75-15 | 15V, 0-5A | ± 1% | 100mV | 72% |
| S-75-24 | 24V, 0-3.2A | ± 1% | 100mV | 82% |
| AC input voltage range | 85-132vac/170-264vac 47-63hz 240-370vdc | |||
| input current | 1.6A/115V 0.8A/230V | |||
| AC inrush current | 18A/115V 36A/230V | |||
| Leakage current | < 1mA/240VAC | |||
| DC adjustable range | ± 10% rated output voltage | |||
| over load protection | 105-150%cut down output, auto-recovery | |||
| over-voltage protection | 115-135% | |||
| set up, rise, hold up time: | 200ms, 100ms 30ms | |||
| withstand voltage: | I/P-O/P: 1.5KVAC 1Minutes I/P-FG: 1.5KVAC 1MInutes O/P-FG: 0.5VAC 1minutes |
|||
| working temperature | -10~+60° C, 20-90%RH | |||
| weight/packing: | 0.5kg, 40pcs/20kg | |||
| Material | Aluminum | |||
| Size | 159*98*38 | |||
| certificate | CE ISO9000 ROHS | |||
| Warranty year | 2 year | |||
| Protections | Short circuit / Over load / Over voltage | |||
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide cust service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz
