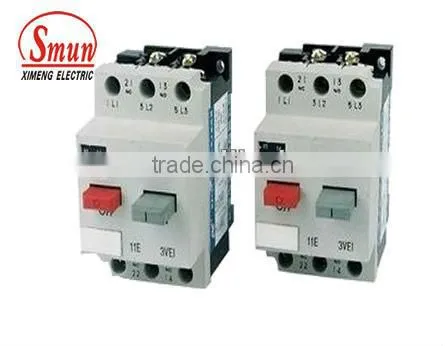

Help CenterMCCB DZ-108-20
US$ 3 - 5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Smun
Model Number:
DZ108-20
Payment & Shipping
Payment Methods:
Port of Shipment:
nb
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
Smun
Model Number
DZ108-20
Type
Moulded Case
Poles Number
2
Specifications
MCCB| Type | DZ108-20(3VE1) | DZ108-32(3VE3) | DZ108-63(3VE4) | |
| Poles | 3 | 3 | 3 | |
| Rated current (A) | 20 | 32 | 63 | |
| Rated voltage (V) | 660 | 660 | 660 | |
| Rated insulation voltage (V) | 660 | 750 | 750 | |
| Current setting voltage (V) | 0.1~0.16 | 1~1.6 | 6.3~10 | |
| 0.16~0.2 5 | 1.6~2.5 | 10~16 | ||
| 0.25~0.4 | 2.5~4 | 16~25 | ||
| 0.4~0.63 | 4~6.3 | 22~32 | ||
| 0.63~1 | 6.3~10 | 28~40 | ||
| 1~1.6 | 8~12.5 | 36~50 | ||
| 1.6~2.5 | 10~16 | 45~63 | ||
| 2~3.2 | 12.5~20 | 45~56 | ||
| 2.5~4 | 16~25 | |||
| 3.2~5 | 22~32 | |||
| 4~6.3 | ||||
| 5~8 | ||||
| 6.3~10 | ||||
| 8~12.5 | ||||
| 10~16 14~20 | ||||
| Power of controlled motor (KW) | 220V | 5.5 | 9 | 18 |
| 380V | 10 | 16 | 32 | |
| 660V | 13 | 26 | 58 | |
| Mechanical life(1×104) | 10 | 10 | 3 | |
| Protective feature | 1.05le | Not act within 2hrs | ||
| 1.2le | Act within 2hrs | |||
| 12le | Action snap | |||
| Model | PCS/CTN | NW(Kg) | GW(Kg) | Carton size(cm) |
| 3VE1 | 60 | 17 | 18.5 | 45×25×29.5 |
| 3VE3 | 20 | 10.5 | 11 | 44×28×29.5 |
| 3VE4 | 10 | 21 | 22 | 50×20×29.5 |
