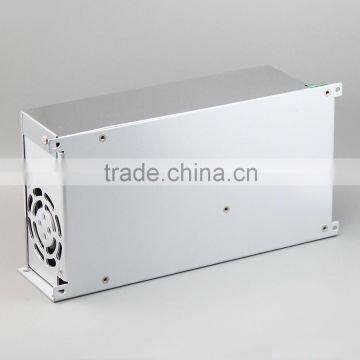

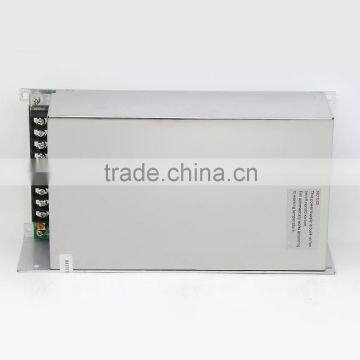

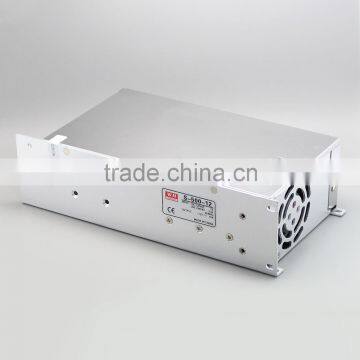

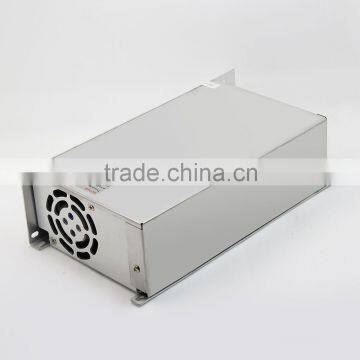

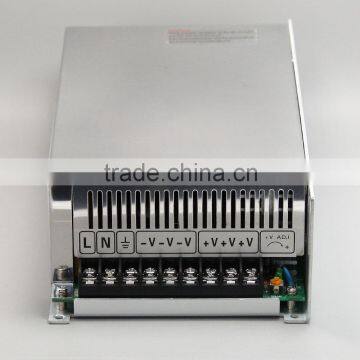

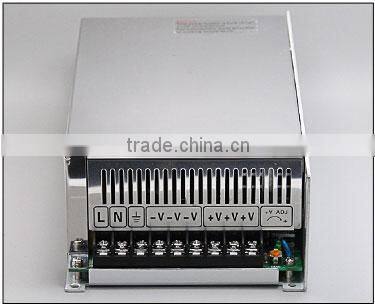

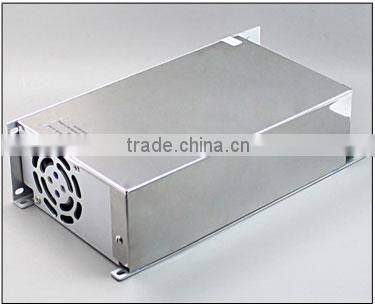

High quality Various voltage 12v 24v 36v 48v 500W 14a dc Switching power supply
Notice:
a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competive price .
d.If need samples, pls click this link of our shop, much more discount on our store
e.2 years warrenty ,buy with confidence
| Model | S-500-12 | S-500-15 | S-500-24 | S-500-48 |
| Specification | ||||
| DC Output voltage | 12V | 15V | 24V | 48V |
| Output voltage range(Note:2) | ±1% | ±1% | ±1% | ±1% |
| Rated output current | 41.6A | 33.3A | 20.8A | 10.4A |
| Output current range | 0~50A | 0~40A | 0~25A | 0~12.5A |
| Wave and noise(Note:3) | 120mVp-p | 150mVp-p | 240mVp-p | 240mVp-p |
| Inlet stability(Note:4) | ±1% | ±1% | ±1% | ±1% |
| Load stability(Note:5) | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| DC output power | 500W | 500W | 500W | 500W |
| Efficiency | 83% | 84% | 86% | 87% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 88~132VAC/190~240VAC selected by switch 47~63Hz,250~340VDC | |||
| Input current | 5A/230V | |||
| AC Inrush current | Cold-start current 46A/230V | |||
| Leakage current | <3.5mA/240VAC | |||
| Overload protection | 120%-150% Reset: auto recovery | |||
| Over-voltage protection | 120%-150% | |||
| High-temperature protection | ERH3≥65°C~70°CFan on ,≤55°C~60°CFan off ,≥80°C~85°C.Cut off output(5-15V)~(24-48V) | |||
| Temperature coefficient | ±0.03%/°C(0~50°C) | |||
| Setup, rise, hold up time | 1s, 100ms, 50ms | |||
| Vibration | 10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes | |||
| Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||
| Working temperature and humidity | -10°C~+60°C,10%~95%RH | |||
| Store temperature and humidity | -20°C~+85°C,10%~95%RH | |||
| Overall dimension | 238X124X65mm (L*W*H) | |||
| Weight | 1.40kgS | |||
| Safety standards | GB4949,UL60950,EN60950 | |||
| EMC standards | According to GB9254 EN55022 EN55024 A level design | |||
we use 4 trips to reinforce our carton,the international standards package methods guaranteed our goods safety during transportation
we are a professional manufacturer of power supplies ,all of our products have approved CE ROHS and ISO9001:2008
Our company start in 2007,located in Yue Qing City, Zhe Jiang Province, which covers 6000 square metres.We have the direct import & export rights.
The advantages
1. High power density,high efficiency,long life and high reliability
2. No Load power consumption<0.5W
3. 100% full load burn-in test
4. Universal AC input range
5. All using 105℃ long life electrolytic capacitors.
6. PCB soldering side with conformal coating
7. Suitable for critical applications power supply
8. Output protections:OLP/OVP/SCP
9. CE RoHS ISO9001 approved
10. 2 years warranty power supply
Customized Logo printing
Cusomized logo is free of charge for quantity over 500pcs
Customized packaging
Customized packaging is supported for quantity over 5000pcs
We devote ourselves to offering humanized serving for each customer! No matter the business is big or small, we are always doing our best to offer our best services to our customers, and developing together
1. Two years warranty for each Item Power supply
2. strict quality control inspection before shipment
3. shockproof & high quality blister packing to protect the item from damaging during shipment
4. OEM design & OEM packing welcome
5. Strong production ability
6. Top 5 Global E-business Company of Alibaba
7. Service online,reply to you within 6 hours
8. Quality is the heart of our factory and service is the soul!
>MOQ:We support sample order. (1~5 pieces)
>More than 500 pieces, can print logo on the products.
>OEM/ODM welcome.
>24 months warranty.
>Shipping methods : by sea, by air, by express.
skype:chnwh007
....
