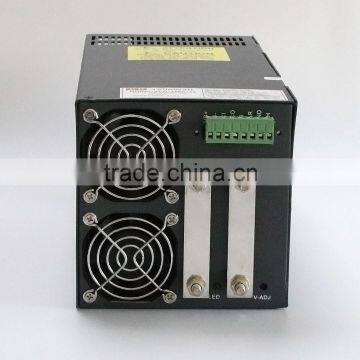

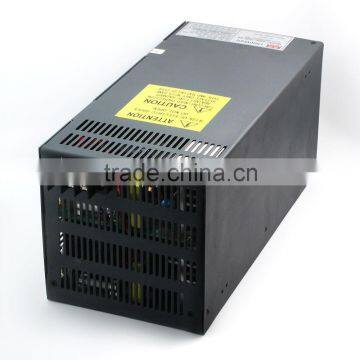

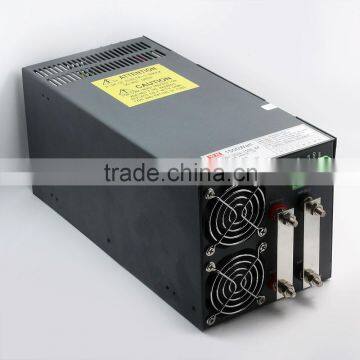

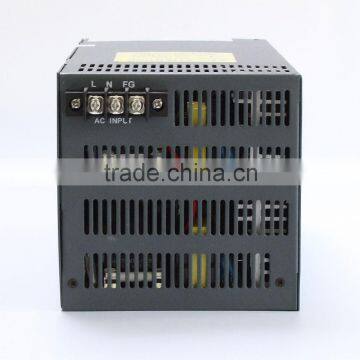

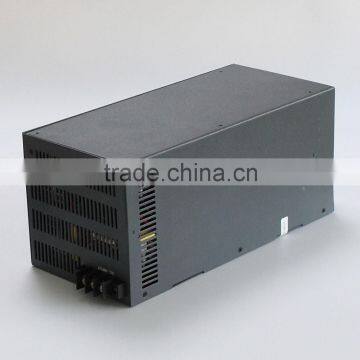

Switch Manufacturers SCN-1200-36 1200w 36v 33amp Power Supply

Name: Switch Manufacturers SCN-1200-36 1200w 36v 33amp Power Supply
Brand: weihao
SKU: 120495871
Availability: InStock

Zhejiang Weihao Electronic Co., Ltd.

US$ 114 - 148 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

weihao

Model Number:

SCN-1200-36

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name weihao

Model Number SCN-1200-36

Output Power Other, >500W

Output Type Single

Input Voltage Other, 110/220V

Output Voltage 36V

Output Frequency 47-63HZ

Output Current 33.3A

large power switch power supply

1.CE RoHS approved
2.2years warranty
3.86% efficiency
4.100% test

WEHO switch manufacturers SCN-1200-36 1200w 36v 33amp power supply

Model Performance	SCN-1200-12	SCN-1200-24	SCN-1200-36	SCN-1200-48
DC Output Volta	12V	24V	36V	48V
Output voltage tolerance(Note 2)	±1%	±1%	±1%	±1%
Rated output current	100A	50A	33.3A	25A
Output current range	0-100A	0-50A	0-33.3A	0-25A
Ripple and noise(Note 3)	120mVp-p	200mVp-p	200mVp-p	240mVp-p
Inlet stability(Note 4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note 5)	±1%	±0.5%	±0.5%	±0.5%
DC output power	1200W	1200W	1200W	1200W
Efficiency	80%	85%	86%	87%
DC voltage adjustable range	±10%	±10%	±10%	±10%
Impact current	Cold start current 45A/230VAC
Overload protection	<3.5mA/240VAC
over-voltage protection	105%~135% type:FOLDBACK cut off output reset:Automatic recovery
High temperature protection	13.8~16.2V	27.6~32.4V	31~36.5V		57.6~67.2V
temperature coefficient	RTH1 OR RTH2>=55°C FAN ON,<=45°C FAN OFF,>=70°C cut off output
Start-up,upper,rentention time	±0.03%°C(0~50°C)
shock resistance	2s,50ms,20ms
Withstand	10~500Hz,2G 10min./1circle,time:60min.,axes
Insulation Resistance	Input to Output Isolation:3KVAC,input&shell:1.5KVAC output &shell:0.5KVAC
work Temperature/ humidity	Input to Output Isolation,,input&shell, output &shell:500VDC/100M Ohms
Storage Temperature,temperature	-10°C~+50°C,20%~90%RH
Outline dimension	-20°C~+85°C,10%~95%%RH
Weight	29113268mm shell:910
Safety standards	5Kgs
EMC Standard	UL1950,TUV EN60950
Model Performance	CISPR22(EN55022),IEC1000-42,3,4,5,6,8,11 IEC100-3-2
