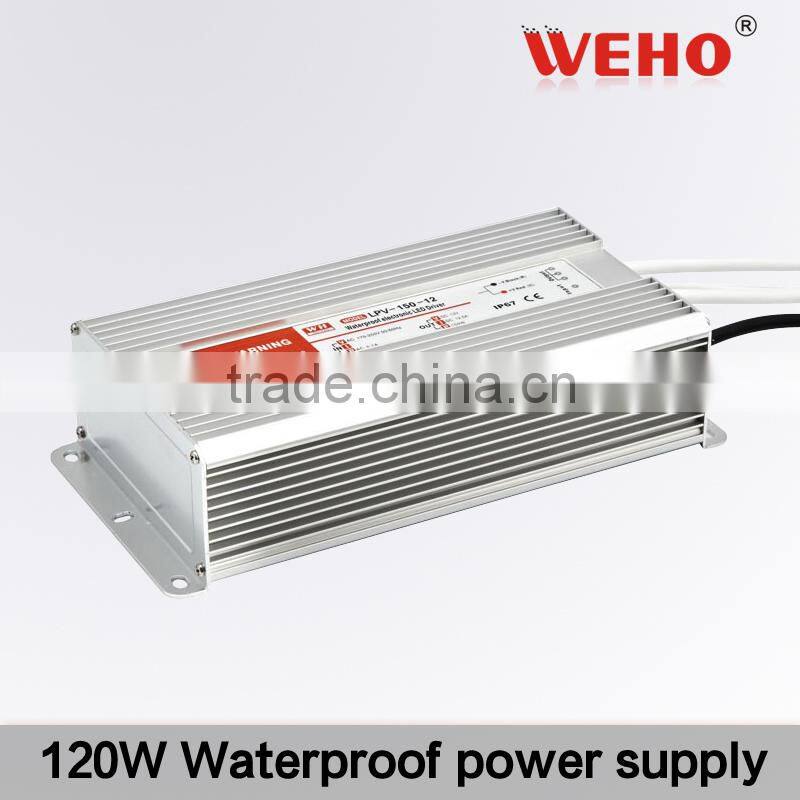

ac dc Constant Current 36v 120w Led Driver Waterproof Power Supply

Name: ac dc Constant Current 36v 120w Led Driver Waterproof Power Supply
Brand: weihao
SKU: 120495571
Availability: InStock

US$ 15.24 - 18.69 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

weihao

Model Number:

LPV-120-36

Zhejiang Weihao Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NingBo / ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name weihao

Model Number LPV-120-36

Output Power 101 - 200W

Output Type Single

Input Voltage 220V

Output Voltage 36V

Output Frequency 47~63HZ

Output Current 8A

WEHO ac dc constant current 36v 120w led driver waterproof power supply

Notice:

a.We do have enough ability to produce your customized order

b.Samples are available

c.High quality and competive price .

d.If need samples, pls click this link of our aliexpress shop, much more discount on our store./store/200977

e.2 years warrenty ,buy with confidence

Specification	Model
Specification	LPV-120-12	LPV-120-36	LPV-120-48
DC output voltage	12V	36V	48V
Output voltage range	10A	35A	2.5A
Output current range	0~10A	0~3.5A	0~2.5A
Wave and noise	100mVp-p	150mVp-p	150mVp-p
DC output power	120W	120W	120W
Efficiency	81%	84%	84%
AC input voltage range	170~264VAC 47-63Hz;240-370VDC
Input current	1.2A/230V
AC Inrush current	40A/230V
Leakage current	<1mA/240VAC
Overload proctection	105%~150% Type:pulsing hiccup shutdown Reset:auto recovery
Over-voltage protection	115%~135% Type:pulsing hiccup shutdown Reset:auto recovery
High-temperature protection	>=85°CType:pulsing hiccup shutdown Reset:auto recovery
Temperature coefficient	±0.03%/0C(0~500C)
Setup,rise,hold up time	200ms,100ms,20ms
Withstand voltage	I/P-O/P:1.5KvAC I/P-FG: 1.5KvAC O/P-FG: 0.5KvAC
Water level	IP67
Srore temperature and humidity	-10°C~+60°C,20%~90%RH
Overall dimension	222×69×43mm
Weight	1.2Kg
