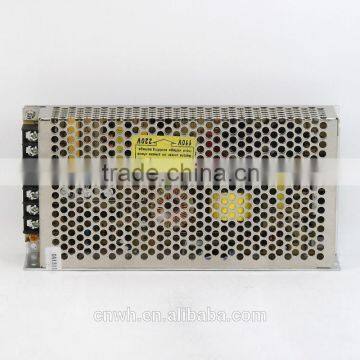

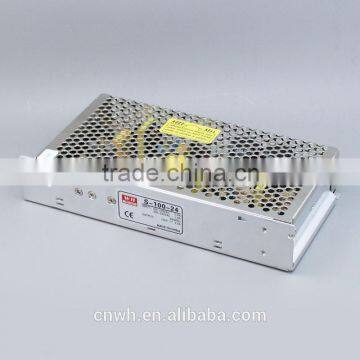

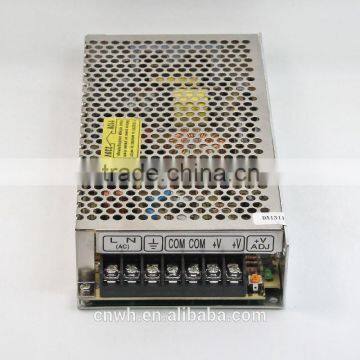

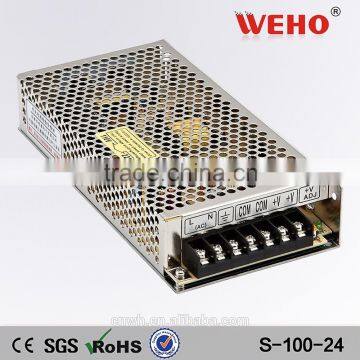

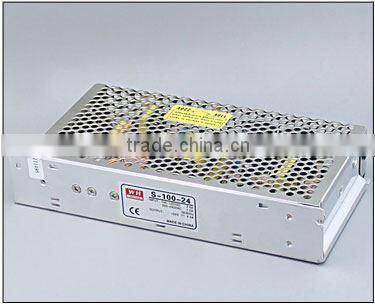

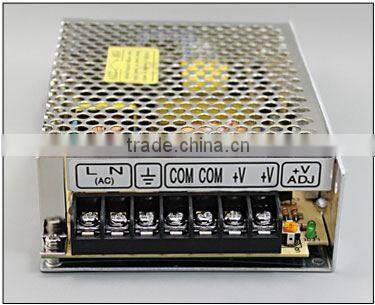

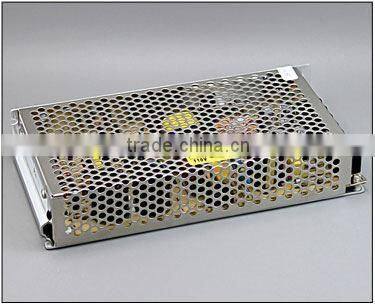

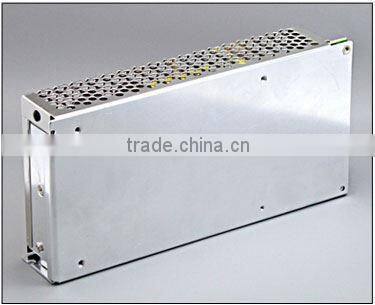

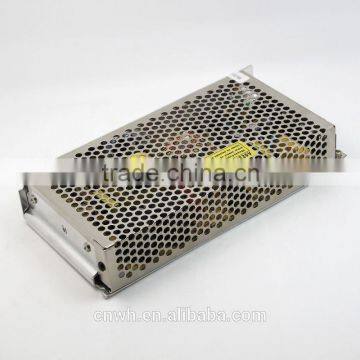

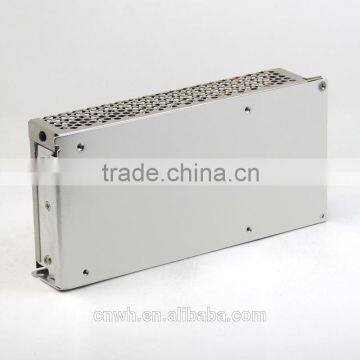

hot selling S-100-24 24v 4.5a switching power supply
Model Specification | S-100-3 | S-100-5 | S-100-7.5 | S-100-12 | S-100-15 | S-100-24 | S-100-27 | S-100-48 | ||
DC output voltage | 3V | 5V | 7.5V | 12V | 15V | 24V | 24V | 48V | ||
Output voltage rang(Note:2) | +/-2% | +/-2% | +/-1% | +/-1% | +/-1% | +/-1% | +/-1% | +/-1% | ||
Rated output current | 50A | 40A | 29A | 25.8A | 23.2A | 14.6A | 13A | 7.3A | ||
Output current range | 050A | 040A | 029A | 025.8A | 023.2A | 014.6A | 013A | 07.3A | ||
Wave and noise(Note:3) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | ||
Inlet stability(Note:4) | +/0.5% | +/0.5% | +/0.5% | +/0.5% | +/0.5% | +/0.5% | +/0.5% | +/0.5% | ||
Load stability(Note:5) | +/1% | +/1% | +/1% | +/1% | +/1% | +/1% | +/1% | +/1% | ||
DC output power | 250W | 300W | 348W | 348.3W | 348W | 351W | 351W | 350.4W | ||
Efficiency | 73% | 76% | 74% | 79% | 78% | 82% | 82% | 83% | ||
Adjustable range for DC voltage | 4.5-5.6V | 6-9V | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 26-32V | 41-56V | ||
AC input voltage range | 85~132VAC/180~264VAC selectd by switch 47~63Hz; 255~370VDC | |||||||||
Input current | 2.4A/115V 1.2A/230V | |||||||||
AC inrush current | Cole-start current 15A/115V 36A/230V | |||||||||
Leakage current | <1mA/240VAC | |||||||||
Overload proctection | 105%~150% | 150%~200% | 105%~150% | |||||||
Type:pulsing hiccup shutdown Reset:auto recovery | ||||||||||
Over-voltage proctection
| 105%~150% | 150%~200% | 105%~150% | |||||||
Type:pulsing hiccup shutdown Reset:auto recovery | ||||||||||
High-temperature and protection | 105%~150% | 150%~200% | 105%~150% | |||||||
Type:pulsing hiccup shutdown Reset:auto recovery | ||||||||||
Temperature coefficient | +/-0.03%(0~50) | |||||||||
Setup, rise,hold up time | 200ms,100ms,30ms | |||||||||
Vibration | 10-500Hz,,2G10min,/cycle, periodfor 60min,Each axes | |||||||||
Withstand voltage | Input and output interal:1.5KvAC,Input ad enclosure:1.5KvAC Output and enclosure:0.5KvAC | |||||||||
Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||||||||
Working temperature and humidity | -10+60(Refer to output derating curve),20%90%RH | |||||||||
Stoerall dimension | -20+85.10%~95%RH | |||||||||
Overall dimension | 199*98*38mm | |||||||||
Weight | 0.65Kgs | |||||||||
Safety standards | Meet UL1012 requirement(Not apply for the mark) | |||||||||
EMC standaras | Meet FCC PART 15J Conduction class B | |||||||||
we use 4 trips to reinforce our carton,the international standards package methods guaranteed our goods safety during transportation
we are a professional manufacturer of power supplies ,all of our products have approved CE ROHS and ISO9001:2008
