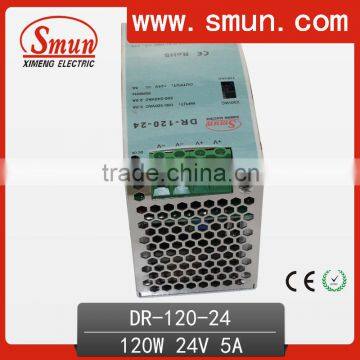

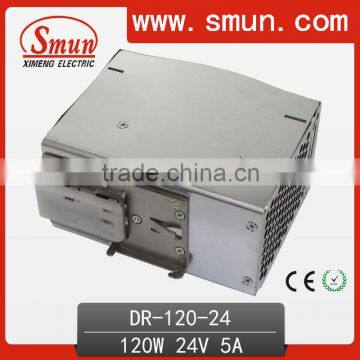

120W Smun Din Rail 24VDC Power Supply(DR-120-24)
· 1. Universal AC input/Full range
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit/over load/over voltage/over temp
· 4. Cooling by free air convection
· 5. Can be installed on DIN RAIL:TS-35/7.5 or TS-35/15
· 6. 100% full load burn-in test
· 7. 2 years warranty
| MODEL | DR-120-12 | DR-120-24 | DR-120-48 | ||
| OUTPUT | DC VOLTAGE | 12V | 24V | 48V | |
| RATED CURRENT | 10A | 5A | 2.5A | ||
| RATED POWER | 120W | 120W | 120W | ||
| RIPPLE&NOISE | 80mVp-p | 80mVp-p | 150mVp-p | ||
| VOLTAGE ADJ.RANGE | 4.75-5.5V | 10.8-13.2V | 13.5-16.5V | ||
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ||
| LOAD REGULATION | ±1.0% | ±0.5% | ±0.5% | ||
| SETUP,RISE TIME | 100ms,30ms/230VAC 100ms,30ms/115VAC at full load | ||||
| HOLD UP TIME(TYP.) | 90ms/230VAC 12ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 85-264VAC 120-370VDC | |||
| FREQUENCY RANGE | 47-63HZ | ||||
| EFFICIENCY(Typ.) | 80% | 84% | 85% | ||
| AC CURRENT(Typ.) | 4.5A/115VAC 0.5A/230VAC | ||||
| INRUSH CURRENT | COLD START 30A/115VAC 60A/230VAC | ||||
| PROTECTION | OVERLOAD | 105-150% RATED OUTPUT POWER | |||
| Protection type:Hiccup mode,recovers automatically after fault condition | |||||
| OVER VOLTAGE | 5.75V-6.75V | 13.8V-16.2V | 17.2V-20.25V | 27.6V-32.4V | |
| Protection type:Hiccup mode,recovers automatically after fault condition | |||||
| ENVIRONMENT | WORKING TEMP | -10~+60°C | |||
| WORKING HUMIDITY | 20-90%RH non-condesing | ||||
| STORAGE TEMP,HUMIDITY | -20~+85°C,10-95%RH | ||||
| TEMP.COEFFICIENT | ±0.03%°C(0-50°C) | ||||
| VIBRATION | 10-500HZ | ||||
| SAFETY&EMC | SAFETY STANDARD | CE RoHS | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute | ||||
| ISOLATION RESISTANCE | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH | ||||
| EMI CONDUCTION&RADIATION | Design refer to GB4943,UL60950,EN60950 | ||||
| EMC STANDARD | Design refer to GB9254,EN55022 Class A | ||||
| DIMENSION | L100*W65.5*H125.2mm | ||||
| PACKING | 0.6kg,20pcs/13kg | ||||
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide cust service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz
