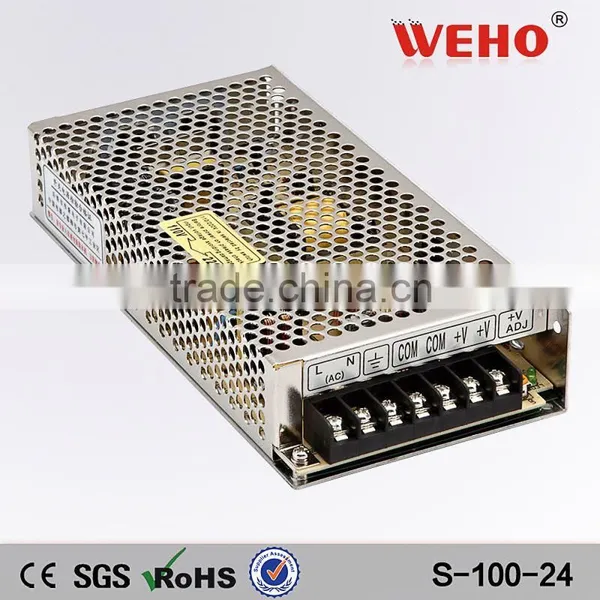

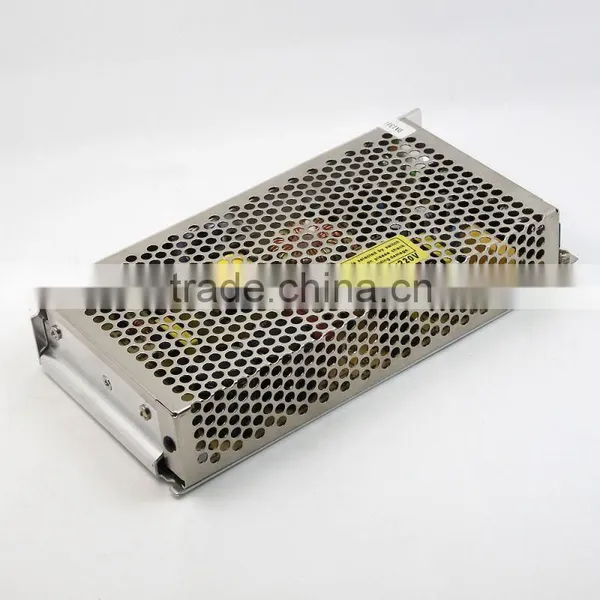

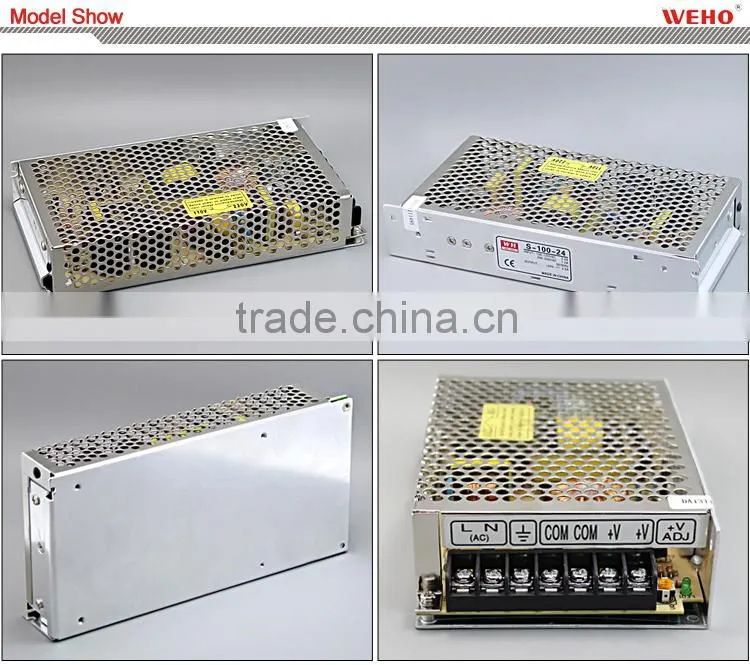

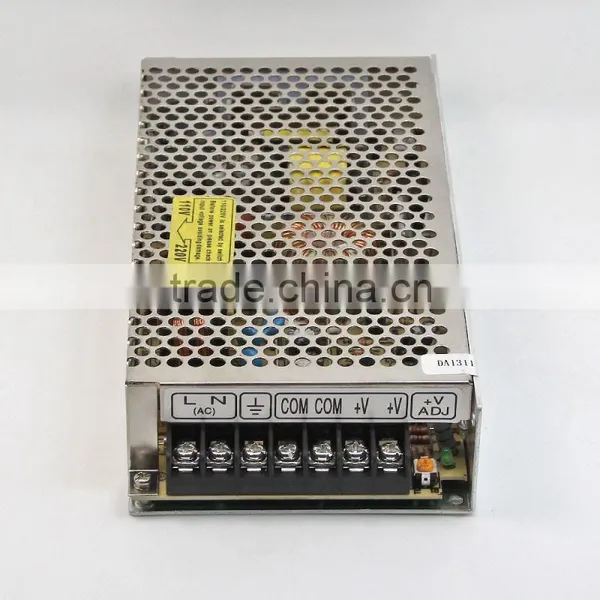

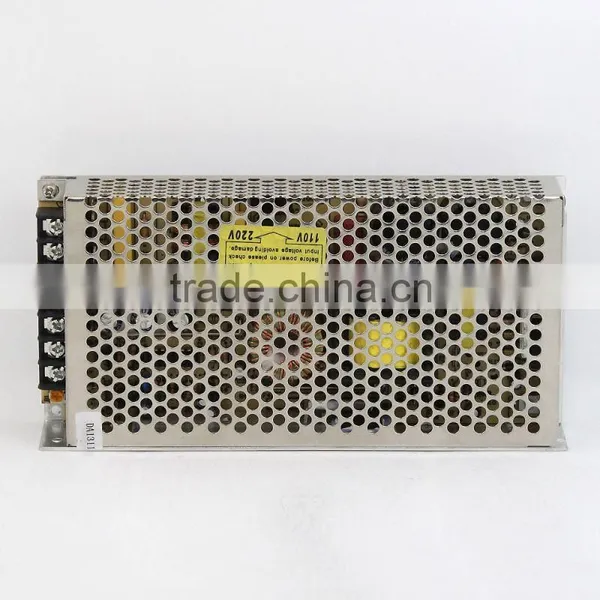

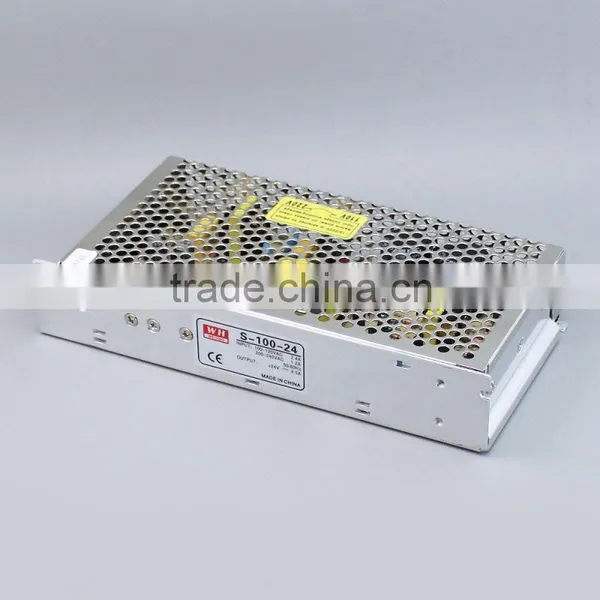

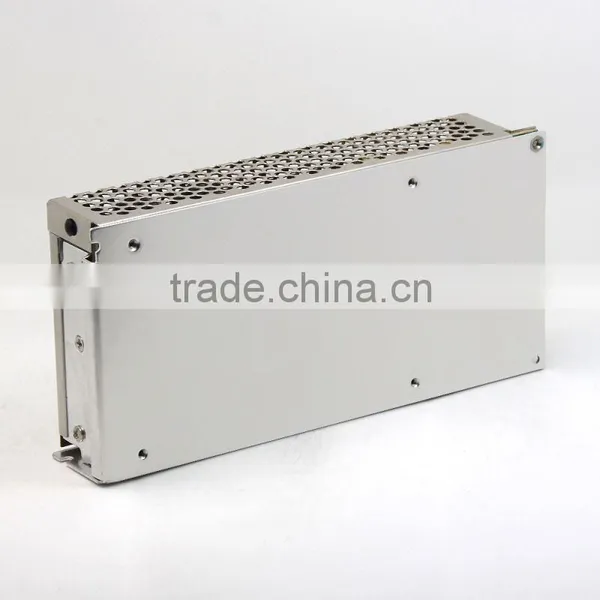

Hotsale High Power Supply 24v 100w Led Driver

Name: Hotsale High Power Supply 24v 100w Led Driver
Brand: WEHO
SKU: 120490641
Availability: InStock

US$ 7 - 9 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

WEHO

Model Number:

S-100-24

Zhejiang Weihao Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name WEHO

Model Number S-100-24

Output Power 51 - 100W

Output Type Single

Input Voltage 220V

Output Voltage 24V

Output Frequency 50/60Hz

Output Current 4.5A

Hotsale high power power supply 24v 100w

Notice:

a.We do have enough ability to produce your customized order

b.Samples are available

c.High quality and competive price .

d.All of our products have CE ROHS Approved .

Features:

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

Product Description

Model	S-100-3	S-100-5	S-100-7.5	S-100-12	S-100-15	S-100-24	S-100-27	S-100-48
DC output voltage	3V	5V	7.5V	125V	15V	24V	27V	48V
Output voltage range(Note:2)	±2%	±2%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	20A	20A	13.6A	8.5A	6.7A	4.5A	3.7A	2A
Output current range	0-20A	0-20A	0-13.6A	0-8.5A	0-6.7A	0-4.5A	0-3.7A	0-2A
Wave and noise(Note:3)	150mV	150mV	150mV	150mV	150mV	150mV	200mV	240mV
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
Load stability(Note:5)	±1%	±1%	±0.5%	±0.3%	±0.3%	±0.2%	±0.3%	±0.2%
DC output power	60W	100W	102W	102W	100.5W	108W	99.9W	96W
Efficiency	70%	78%	81%	81%	81%	84%	84%	84%
Adjustable range for DC voltage	2.85~3V	4.75~5.5V	6.75~8.25V	10.8~13.2V	13.5~16.5V	21.6~26.4V	26~32V	43.2~52.8V
Input current	2.4A/115V 1.2A/230V
AC inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload protection	105%~150%		150%~200%	105%~150%
Overload protection	Type: Output shutdown Reset: Recycle AC ON/OFF
Temperature coefficient	±0.03%/°c(0~50°c)
Setup, rise , hold up time	200ms,100ms, 30ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Weight	0.65Kgs
Safety standards	Meet UL 1012 requirementNot apply forr the mark
EMC standards	Meet FCC PART 15 J Conduction class B
