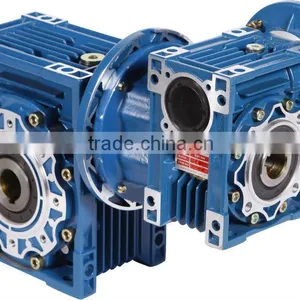

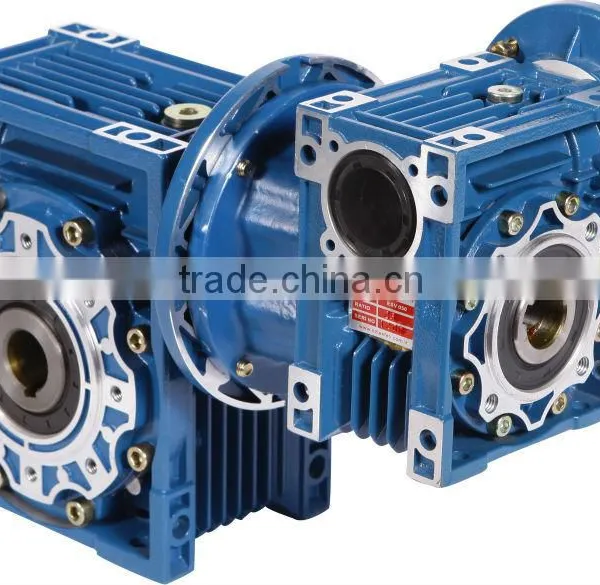

Help CenterESV SERIES WORM GEARS
Related Products
ESV SERIES
The reductors bodies between the types ESV-25 and ESV-90 are made of aluminium injection casting and the types between ESV-110 & ESV-150 are made of Gg22 cast iron. There is a montage capability in all directions thanks to cubic type of gears. The endless screw is made from the honned and cementaded stell and treated with photoelectric.
The yellow gear was made from GcuSn12 bronze material. Senthetic oil was used for the reductors between ESV-25 and ESV-90, but mineral oil was used for the reductors between ESV-110 and ESV-150.
These is always possibilities of changing input ( PAM B14 ) and output flanges on the reductors.
Gears ratios are i: 7,5-10-15-20-25-30-40-50-60-80-100
All of gears for our products are passed from high technology stoning phase and heat process. Gear performance and durability increases, service life is prolenged and speed reducers can work silent in that way..
Send Inquiry to This Supplier
