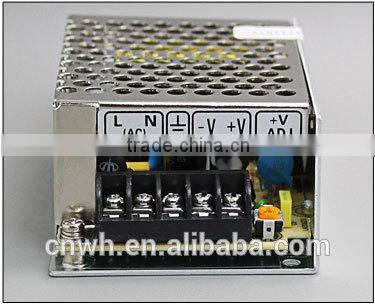

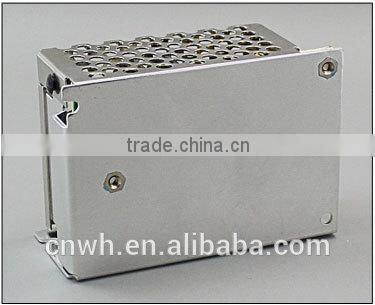

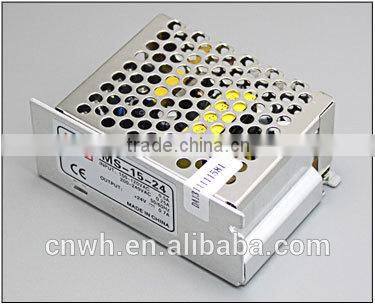

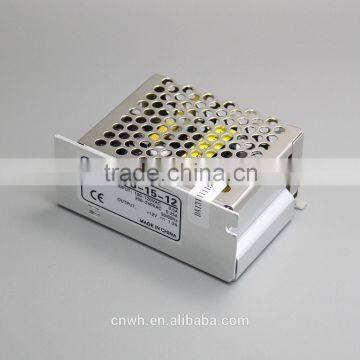

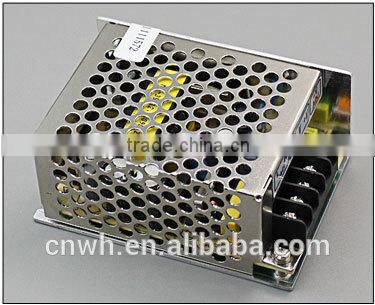

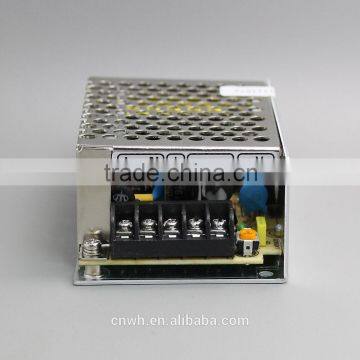

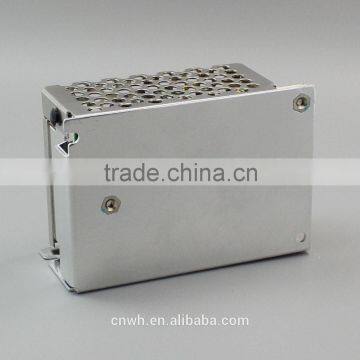

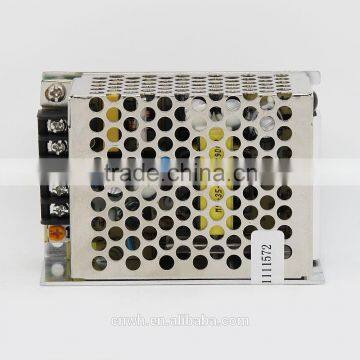

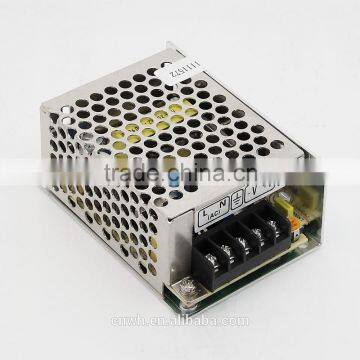

Direct Current15w Single Output Mini Power Supply 15v Led Transformer

Name: Direct Current15w Single Output Mini Power Supply 15v Led Transformer
Brand: weho
SKU: 120487455
Availability: InStock

Zhejiang Weihao Electronic Co., Ltd.

US$ 3.5 - 5.9 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

weho

Model Number:

MS-15-15

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name weho

Model Number MS-15-15

Output Power 1 - 50W

Output Type Single

Input Voltage Other, 110v or 220v

Output Voltage 15V

Output Frequency 47~63Hz

Output Current 1A

Direct current15w single output mini power supply 15v led transformer

NOTICE:

a.We do have enough ability to produce your customized order

b.Samples are available

c.High quality and competive price .

d.If need samples, pls click this link of our aliexpress shop, much more discount on our store./store/200977

e.2 years warrenty ,buy with confidence

Related Products

Related Products

	Wattage	15W~1500W
	Features	High number of economic type safety with series 3.3V, 5V, 7.5V, 9V, 12V, 15V, 24V, 27V,36V, 48V

	Model No. Date Link	MS Series MS-15W MS-25W MS-35W MS-50W MS-60W MS-100W
		S Series S-15W S-25W S-35W S-50W S-60W S-75W S-100W S-120W S-145W S-150W S-200W S-201W S-250W S-300W S-350W S-400W S-500W S-600W
		SCN Series SCN-600W SCN-800W SCN-1000W SCN-1500W
		DR Series DR-30W DR-45W DR-60W DR-75W DR-120W DR-240W
		MDR Series MDR-20W MDR-40W MDR-60W
		LPV Series LPV-15W LPV-20W LPV-30W LPV-50W LPV-60W LPV-100W LPV-150W LPV-200W LPV-250W
		NES Series NES-15W NES-25W NES-35W NES-50W NES-75W NES-100W NES-350W

Product Description

Model	MS-15-5	MS-15-12	MS-15-15	MS-15-24
DC output voltage	5V	12V	15V	24V
Output voltage range(Note:2)	±2%	±1%	±1%	±1%
Rated output current	3A	1.3A	1A	0.7A
Output current range	0-3A	0-1.3A	0-1A	0-0.7A
Wave and noise(Note:3)	70mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±1%	±0.5%	±0.5%	±0.5%
DC output power	15W	15W	15W	15W
Efficiency	70%	76%	76%	72%
Adjustable range for DC voltage	9.95	±10%	±10%	±10%
Input current	0.5A/115V 0.25A/230V
AC inrush current	Cold-start current 15A/115V 30A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
Temperature coefficient	±0.03%/°c(-10~+50°c)
Setup, rise , hold up time	200ms, 50ms, 20ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	85×58×38mm
Weight	0.15Kgs
Safety standards	Meet UL 1012 requiement (Not apply for the mark)
EMC standards	Meet FCC PART 15 J Conduction class B
