Home > Products > Rubber Hose > Four Layers Steel Wire Braided Rubber Hose
Four Layers Steel Wire Braided Rubber Hose
Negotiable
/ Meter
5000 Meters(Min.Order)
- 150000 Meter / Meters per Month
- Tianjin
- T/T
You May Like
Product Details
Place of Origin: | Hebei, China | Brand Name: | JINGDONG | Model Number: | 1166 |
Product Description
Applications
The hose is suitable to carry hydraulic fluids, such as glycol, mineral oils, lubricants, fuels, emulsion and so on.
Characteristics

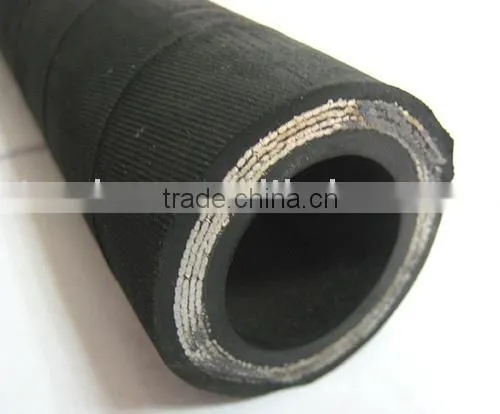

The hose consists of an inner tube of oil synthetic rubber, four spiral wire reinforcement, and an oil and weather resistant synthetic rubber cover.
Operating Temperature
Performance data is based upon use between - 40-120
Hose size | Inside Diameter mm | Reinforcement Diameter mm | Outside Diameter mm | Working Pressure Mpa | Burst Pressure Mpa | Min.Bend Radius mm | ||
MPA | Psi | MPa | Psi | |||||
4sp-6-100 | 6±0.5 | 14.4±0.8 | 19±1.0 | 100 | 14490 | 210 | 30492 | 130 |
4sp-8-80 | 8±0.5 | 16.4±0.8 | 20.5±1.0 | 80 | 11592 | 210 | 30492 | 145 |
4sp-10-70 | 10±0.5 | 19.2±0.8 | 24±1.0 | 70 | 10143 | 210 | 30492 | 160 |
4sp-13-60 | 13±0.5 | 22.2±0.8 | 27±1.0 | 60 | 8694 | 180 | 26082 | 410 |
4sp-16-55 | 16±0.5 | 26±0.8 | 30±1.0 | 55 | 7970 | 165 | 23909 | 260 |
4sp-19-46 | 19±0.5 | 30±0.8 | 35±1.5 | 46 | 6665 | 140 | 20286 | 280 |
2sp-19-28 | 19±0.5 | 27±0.8 | 31±1.0 | 28 | 4057 | 84 | 12172 | 280 |
4sp-22-40 | 22±0.8 | 33±0.8 | 37±1.5 | 40 | 5796 | 120 | 17388 | 320 |
4sp-25-35 | 25±0.8 | 36±0.8 | 41±1.5 | 35 | 5072 | 112 | 16229 | 360 |
2sp-25-21 | 25±0.8 | 33±0.8 | 38±1.5 | 21 | 3043 | 64 | 9274 | 360 |
4sp-32-32 | 32±0.8 | 44±0.8 | 49±1.5 | 32 | 4667 | 96 | 13910 | 460 |
2sp-32-20 | 32±0.8 | 41±0.8 | 46±1.5 | 20 | 2898 | 60 | 8694 | 460 |
4sp-38-25 | 38±1.0 | 50.8±1 | 56±1.5 | 25 | 3623 | 75 | 10868 | 560 |
4sp-45-23 | 45±1.0 | 57.8±1 | 61.8±1.5 | 23 | 3333 | 69 | 9998 | 650 |
4sp-51-20 | 51±1.0 | 63.8±1 | 69±1.5 | 20 | 2898 | 60 | 8694 | 720 |
2sp-51-14 | 51±1.0 | 60.8±1 | 65±1.5 | 14 | 2039 | 52 | 7535 | 720 |
