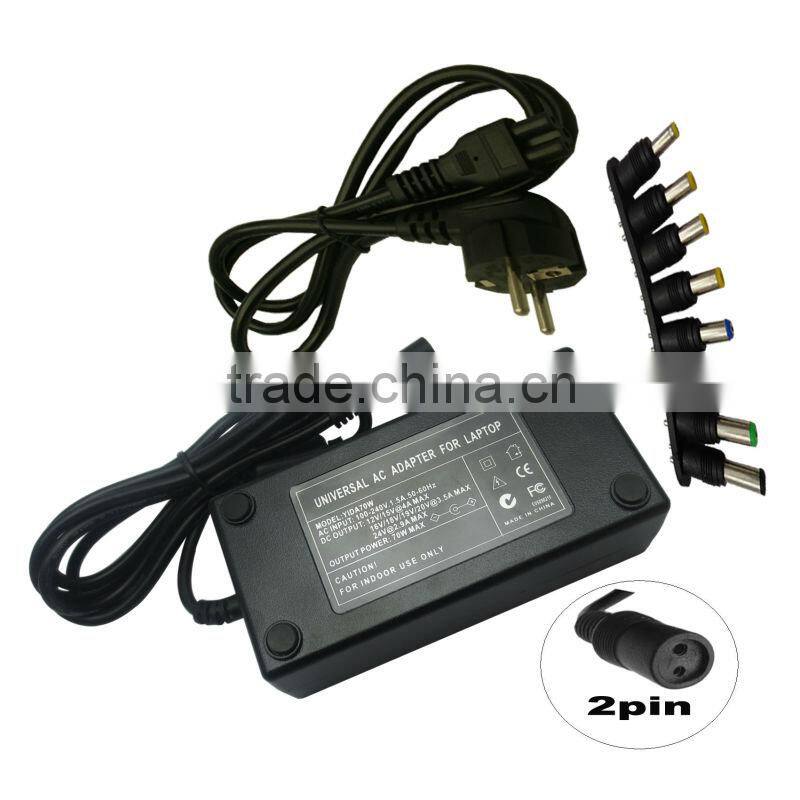

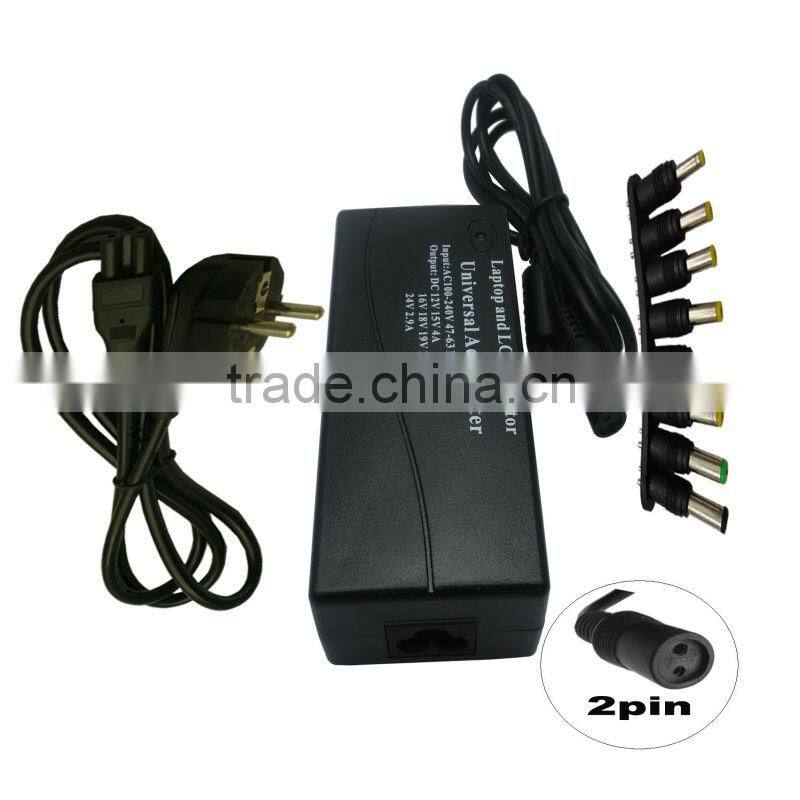

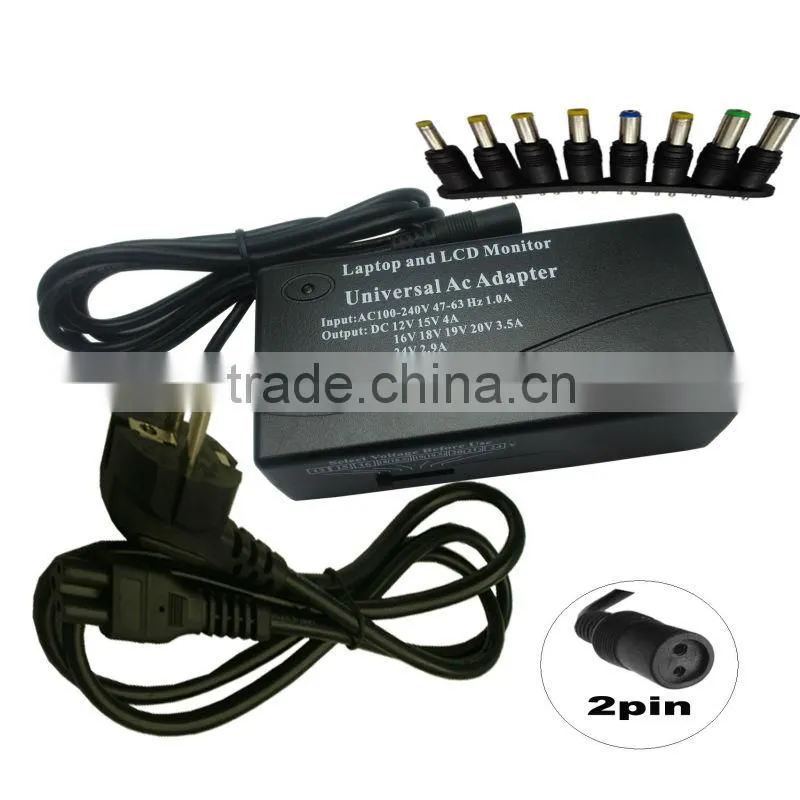

70W Universal AC Adapter 12V/15V/16V/18V/19V/20V/24V With 8 DC Tips

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CMP

Model Number:

C701

Shenzhen GeeXin Electronics Manufactory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CMP

Model Number C701

Output Type DC

Connection Plug In

Specifications

1. Universal power adapter
2. Model No: C701
3. Output: 100V-240V
4. Input: DC 12V/15V/16V/18V/19V/20V/24V
5. DC tip: 2P

AC Input
Nominal Input Voltage	AC 100V~240V
Input Voltage Range	AC 95V~265V
Input Frequency	50/60Hz
DC Output
Output Voltage	DC 12V/15V/16V/18V/19V/20V/24V(0/+0.5V NOLOAD)
Output Current	12V/15V-4A MAX / 16V/18V/19V/20V-3.5A MAX / 24V-2.9A MAX
Output Power	70W
DC Connector Size	2 pin (with 8 standard dc tips)
8 Standard DC Tips	5.52.5 / 5.52.1 /5.51.7 / 4.81.7 /4.01.7/6.33.0 with pin /6.54.4 with pin /5.53.0 with pin
Line Regulation	1%
Load Regulation	1%
Ripple Noise	180 Mvp-p
Efficiency	>85%
Output Cable Standard	0.75mm2 Pure Copper
Output Cable Length	1.5m normally or customized requirement
Environment
Operating Temperature	0°C ~40°C
Operating Humidity	5%~95%RH
Storage Temperature	-20°C ~85°C
Storage Humidity	5%~95%RH
Protection
Over Load Protection	Short Circuit Protection
Over Current Protection	Over Temperature Protection

Certificates
CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE

Dimensions
Adapter Size	1263.8CM
Adapter Weight with 8 dc tips	300G
Color Box Size	261653CM
Color Box Weight	65G
PCS/CTN	20PCS or 40PCS
Outer Carton Size	422732.5CM or 5332.542CM
Outer Carton Weight	600G or 800G
GW/CTN	7900G or 15400G
Package
Inner Box	Normally neutral color box or customized requirement
Outer Carton	Normally neutral standard carton or customized requireme
