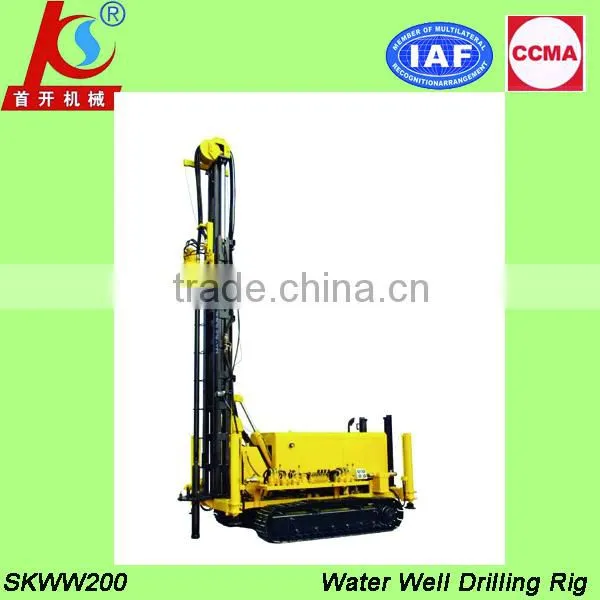

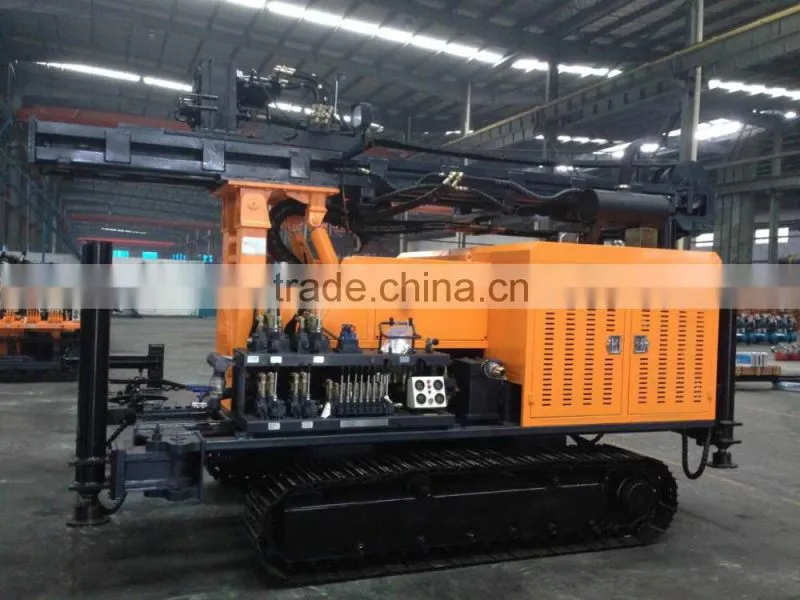

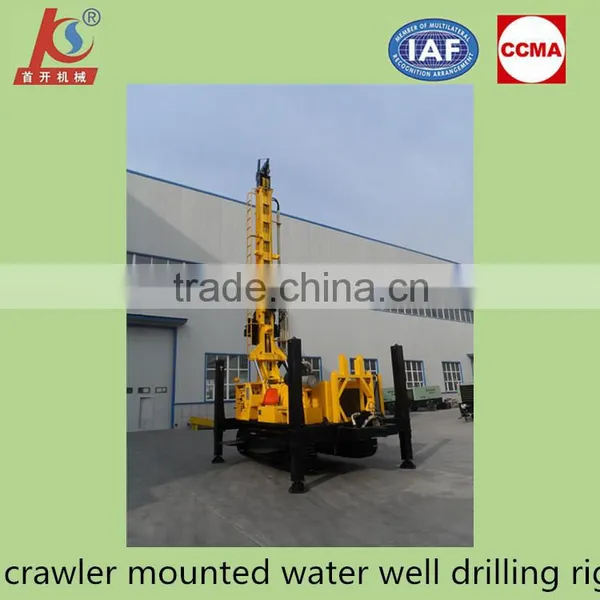

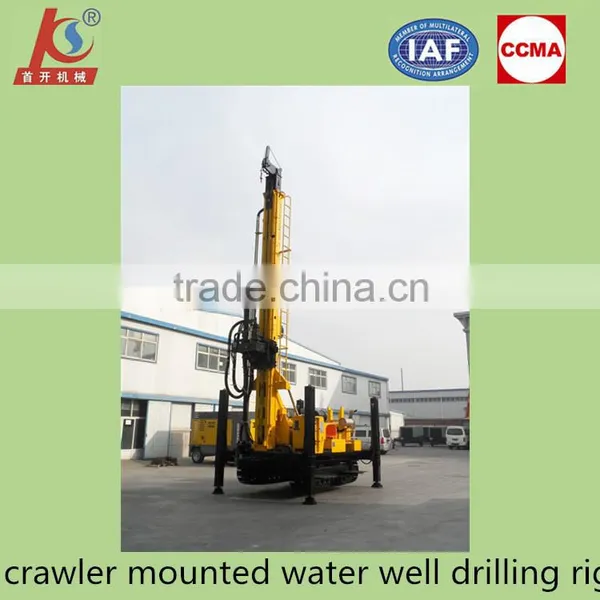

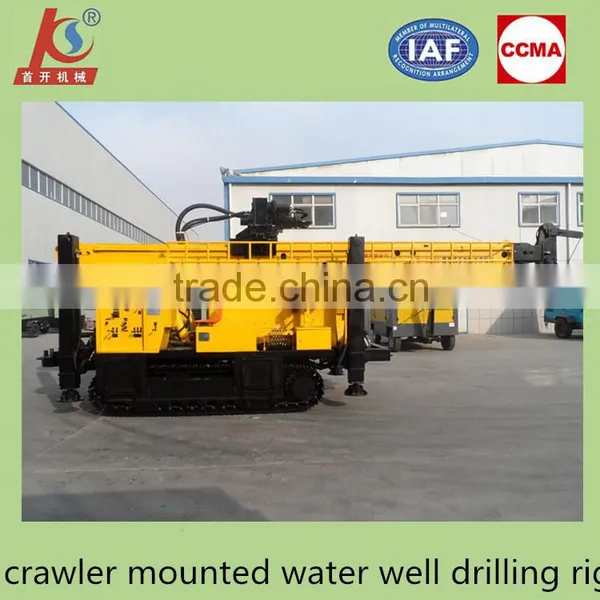

SKWW200 crawler water well drilling rig
1, SKWW200 is a high efficiency and multi-functional drilling equipment, It can be used to drill water well, agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratum water sourcing project.
2, This machine can drill in different stratum, The maximum bore diameter can be 300mm.
3, This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.
4,Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.
5,This machine adopts excavator crawler chassis and make the machine a high off-road performance, It also can be mounted on a truck to make it more maneuverability.
6, Two gears rotation and feeding speed makes it work in soil and rock layers.
7, Positioner can change different positioning plates accroding to the specification of drill pipe and DTH hammer to make positioning correct and reliable. Hoist device help to lift drill pipes and hammer to reduce labour strength.
Model |
SKWW150 |
SKWW200 |
SKWW300 |
weight |
3.4T |
5.87T |
8.7T |
dimension |
3.15*1.55*1.9m |
6*1.9*2.7m |
6*1.95*2.7m |
drill diameter |
100-219mm |
140-274mm |
180-325mm |
drill depth |
150m |
200m |
300m |
propelled stroke |
1500-2000mm |
3000mm |
3000mm |
travel speed |
2km/h |
2.5km/h |
2km/h |
climbing ability |
30Max |
30Max |
30Max |
min grand clearance |
250mm |
250mm |
250mm |
working pressure |
1.45-2.5Mpa |
1.7-2.5Mpa |
1.7-2.5Mpa |
air consumption |
21m3/min |
23m3/min |
23m3/min |
main machine power |
42Kw |
72Kw |
110Kw |
rotary speed |
55-90rpm |
62-85rpm |
55-85rpm |
rotary torque |
3000-5500N.m |
4000-7500N.m |
4500-9000N.m |
