Specifications
1,high quality, low price
2,high torque rotary power head
3,advanced hydraulic motot, less malfunction
4,hybrid engine.

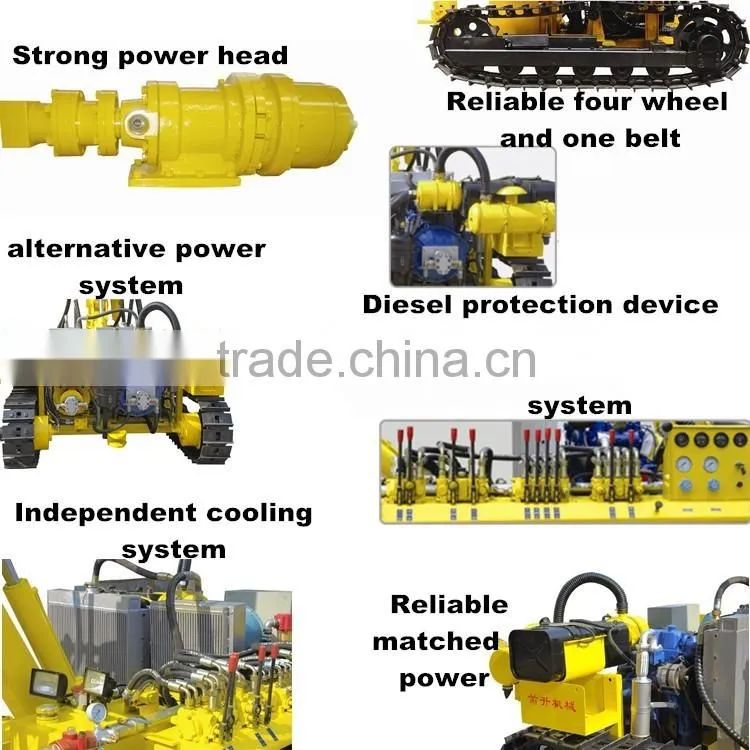

1, centralized controls system
It features advanced hydraulic system and air way system, All moves are centralized controlled, easy and convenience.
conducting hydraulic valve to realize different moves of drill arm, guarantee drilling rig stable and high efficiency for rock drilling.
The special designed unidirection throttle valve in the hydraulic system can realize stepless speed regulating for rotating, to increase applicability for various rock layers and work efficiency.
2, reliable matched power
providing YC2108 diesel engine for this drilling rig.
water tank and hydraulic oil radiator guarantees diesel and drilling rig hydraulic system operating safely and reliably.
single connected gear pump provides driving force for propulsion system and rotating system respectively via diverter valve, The hydraulic system is more stalbe and reliable.
3, alternative power system
It also provides 22 kw 3-phase asynchronous motor. This will allow customer choose one of the motors according to on site condition.
4 ,strong power head
Slewing drive adopts planetary gear reductor and oscillating motor with foreign advanced technique. It moves stably with low speed and high torque.
5, diesel protection device
natural inhaling system combines of desert air filter, second air filter and oil filter to improve the applicability for hostile environment and working life of diesel
The drilling rig uses clean air source from air compressor and disconnect the natural inhaling way of diesel.
Unidirection throttle valve can adjust and stablize air inflow of diesel.
air dryer can remove the water of air source of air compressor efficiently.
6,reliable four wheel and one belt
integrated crawler belt installs conveniently with reliable performance.
care chain wheel, tensioner spring and turgor cylinder can guarantee suitable crawler belt tensioner degree.
7, independent cooling system
Drilling diameter |
φ90-φ130mm |
Drilling depth |
30m |
||
Rock Hardness |
f=6~20 |
Travelling Speed |
2.5km/h |
||
Climbing ability |
30O |
Electric System |
24V |
||
Power type |
diesel + electric |
Diesel tank capacity |
80(L) |
||
Oil tank capacity |
109(L) |
Total machine weight |
3.7t |
||
Transport dimension (length×width×height) |
4250×1980×2260mm |
||||
|
Drive system |
Diesel engine model |
YC2108 |
|||
Diesel engine output power rating/Speed |
33kw/2400rpm |
||||
electric model |
B35-180M |
||||
electric motor power/rotary speed |
22kw/1450rpm |
||||
|
Power head |
(14MPa)output torque |
2740N·m |
|||
output rotate speed |
90rpm |
||||
|
Propeller |
feeding method |
oil cylinder to chain |
|||
once propulsion length |
2000mm |
||||
propeller length compensation |
900mm |
||||
propulsion force |
13kN |
||||
Lifting force |
18kN |
||||
propulsion speed |
0.7m/s |
||||
Fast propulsion speed |
1.2m/S |
||||
Lifting speed |
0.7m/s |
||||
Fast lifting speed |
1.2m/s |
||||
|
Hydraulic system |
Highest pressure in hydraulic system |
14MPa |
|||
Drilling rig working pressure |
14MPa |
||||
Propulsion maximum pressure |
11MPa |
||||
Lifting maximum pressure |
14MPa |
||||
Power head forward maximum pressure |
10MPa |
||||
|
Power head reverse maximum pressure |
14MPa |
||||
|
Positioning cylinder maximum working pressure |
14MPa |
||||
|
Drilling rig angle |
Highest horizontal hole |
3.2m |
|||
Lowest horizontal hole |
0.3m |
||||
Frame pitching angle |
0~90° |
||||
Drill arm pitching angle |
47°~62° |
||||
Frame swing angle |
left17°right 32° |
||||

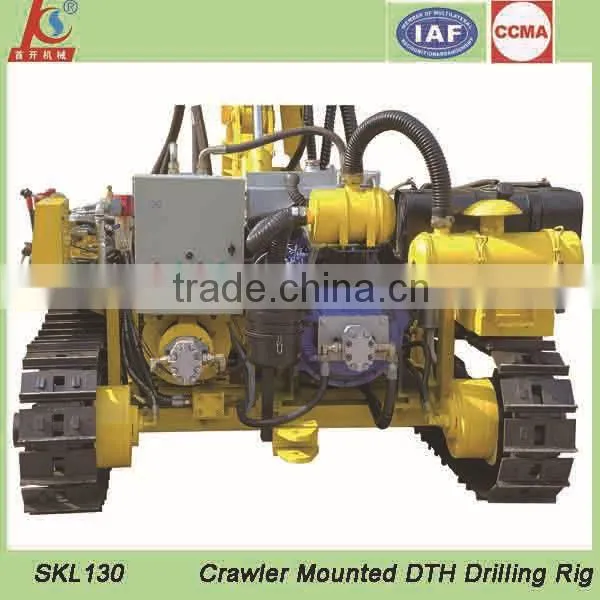

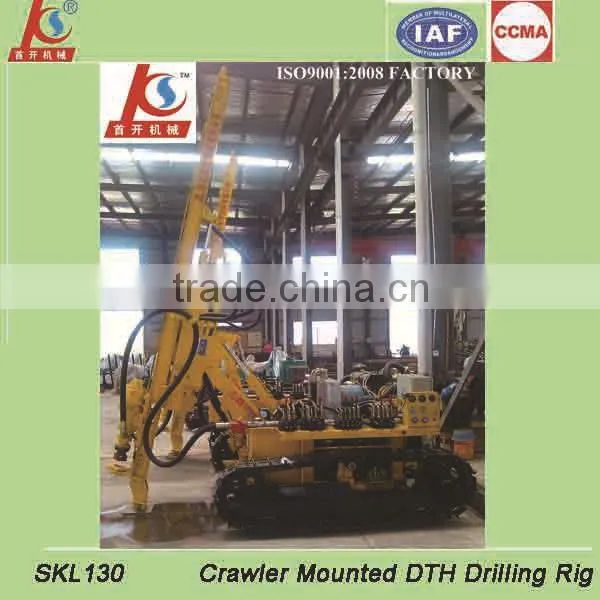

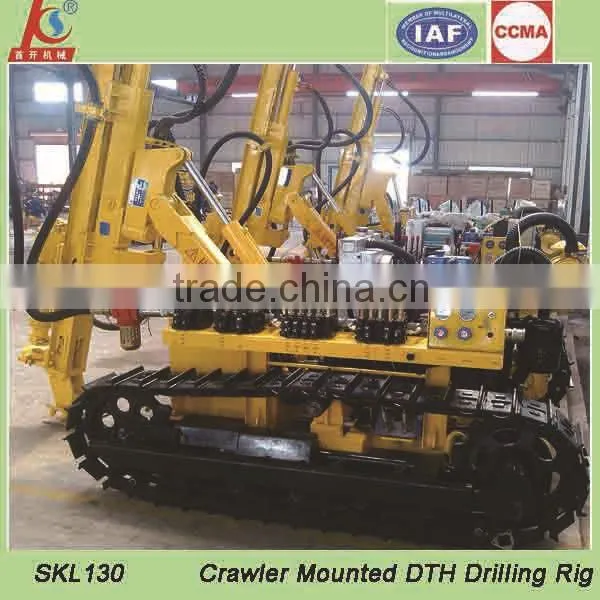

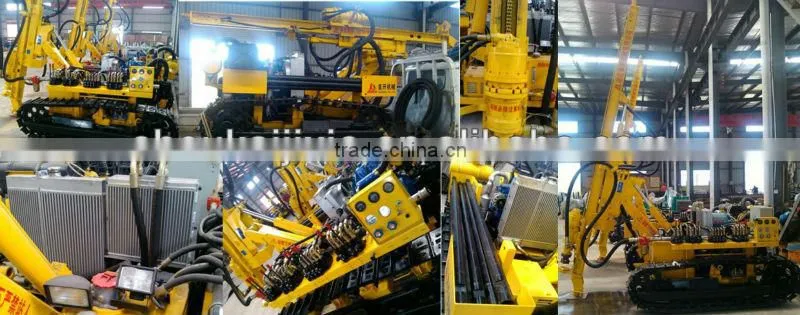

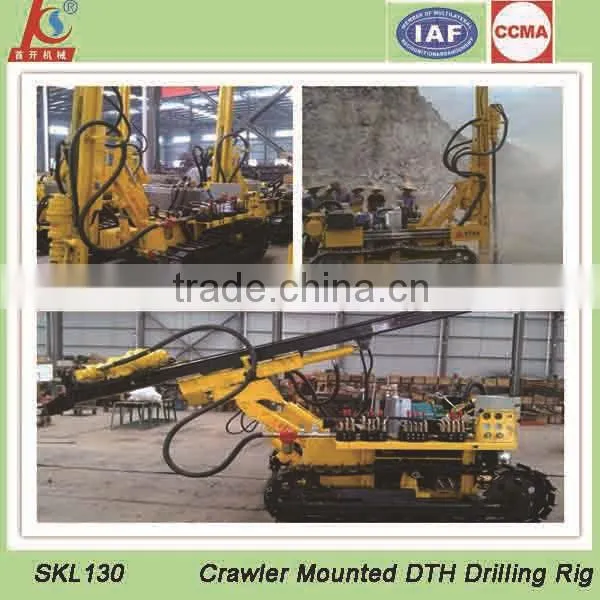

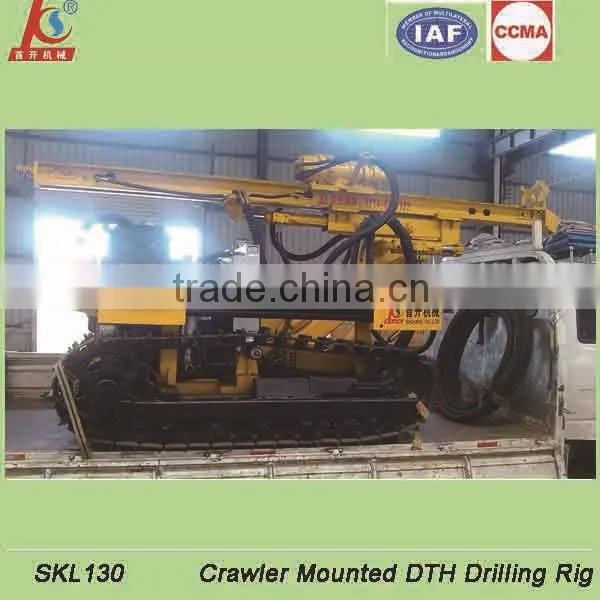

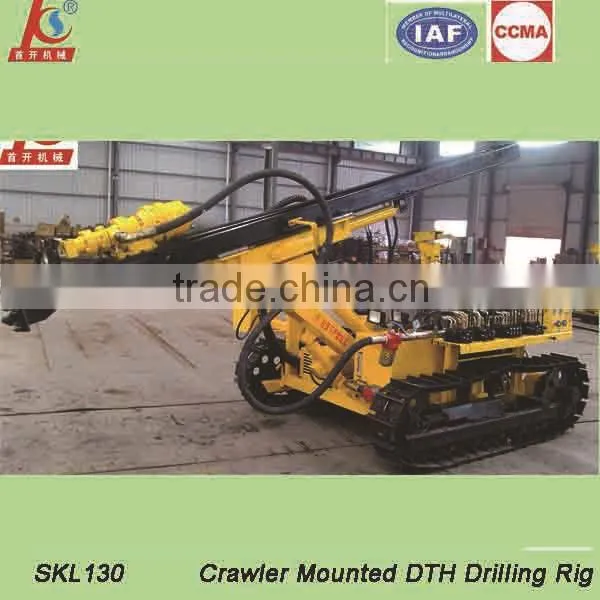

Product Picture
"Shoukai " Brand Drilling Rig exported to Australia, South Africa, Vietnam, Philippines and other countries in the world.
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park,Huangshi city Hubei province, covering an area of over 40,000 square meters,our company has grown into a set of welding product ,machiningand assembly for the integration of large-scale ,professional drilling equipment manufacturing enterprises .Now we have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use.Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. Our company has CNC cutting machine, CNC boring machine, CNC machine tools and various manufacturing equipment, has strong ability of new product development and manufacturing.
6.We focus on development and earn several Utility Model Patent Certificates.
7. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
