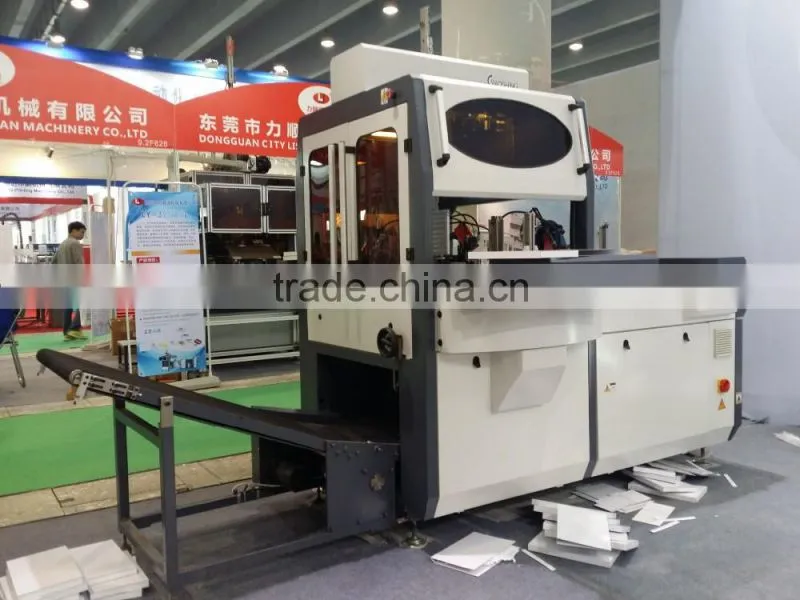

GS-230 Most Competitive Intelligent Fully Automatic Rigid Box Making Machine

GS-230 Most Competitive Intelligent Fully Automatic Rigid Box Making Machine thumbnail-1
GS-230 Most Competitive Intelligent Fully Automatic Rigid Box Making Machine thumbnail-2
GS-230 Most Competitive Intelligent Fully Automatic Rigid Box Making Machine thumbnail-3
GS-230 Most Competitive Intelligent Fully Automatic Rigid Box Making Machine thumbnail-4
GS-230 Most Competitive Intelligent Fully Automatic Rigid Box Making Machine thumbnail-5
GS-230 Most Competitive Intelligent Fully Automatic Rigid Box Making Machine thumbnail-6
GS-230 Most Competitive Intelligent Fully Automatic Rigid Box Making Machine photo-1
GS-230 Most Competitive Intelligent Fully Automatic Rigid Box Making Machine photo-2
GS-230 Most Competitive Intelligent Fully Automatic Rigid Box Making Machine photo-3
GS-230 Most Competitive Intelligent Fully Automatic Rigid Box Making Machine photo-4
GS-230 Most Competitive Intelligent Fully Automatic Rigid Box Making Machine photo-5
GS-230 Most Competitive Intelligent Fully Automatic Rigid Box Making Machine photo-6
US$ 48000.00 - 48000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, box forming machine
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
Wenzhou Gaosheng Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, box forming machine
Automatic Grade Automatic
Place of Origin Zhejiang, China
Brand Name gaosheng
Model Number GS-230
Voltage 380V/50Hz
Power(W) 7kw
Dimension(L*W*H) 2.3*2.0*2.1m
Weight 1200kg
Certification CE Certificate
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

GS-230  Most Competitive Intelligent Fully Automatic Rigid Box Making Machine (economic type)

Product Application

I. Function :
1.GS - 230 automatic makeup type box making machine is specially develop to solve the problem of raw paper materials waste, quadrilateral Stick glue mark after printing and same problems.

2.This equipment is widely used in the production of mobile phone box, shoes box, tea box, wine box, moon cake box, gift boxes and other luxury box.

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR

Engine
Mode
GS-230
produce speed：
20～30pcs/min
Glue loader capacity：
6L

Main performance parameters
Air supply requirements：
300L/min 0.8Mpa
Glue type：
Hot-melt glue
Power ：
7KW/380v

Hydraulic system
Paper thickness：
1.5—5MM
Max box size：(L*W*H)
400*300*200mm
Min box size：(L*W*H)
100*60*20mm
Machine size:
2150MM*2300MM*2160MM
Machine size:
About 1200Kg

Main Features


1, This machine adopts the most advanced technology of three boards box making in China. it use microcomputer to control the bottom plate and sides plate to make up the box, which greatly saves the cost of raw materials.

2.The machine adopts automatic Omron PLC touching screen which display data, operate and control system cleanly, and also display fault detection and alarm.

3、This machine uses the hot melt glue to make up box replace of use tape to make box, which adjust the spray adhesive length, width, starting point and ending point according to the product requirements. it is easy operate.

4、The machine adopts the unique downdraught feeding, which can feed baseboard and side plate with non-stop machine and achieve continuous production.

Certifications
Detailed Images

Machine Parts

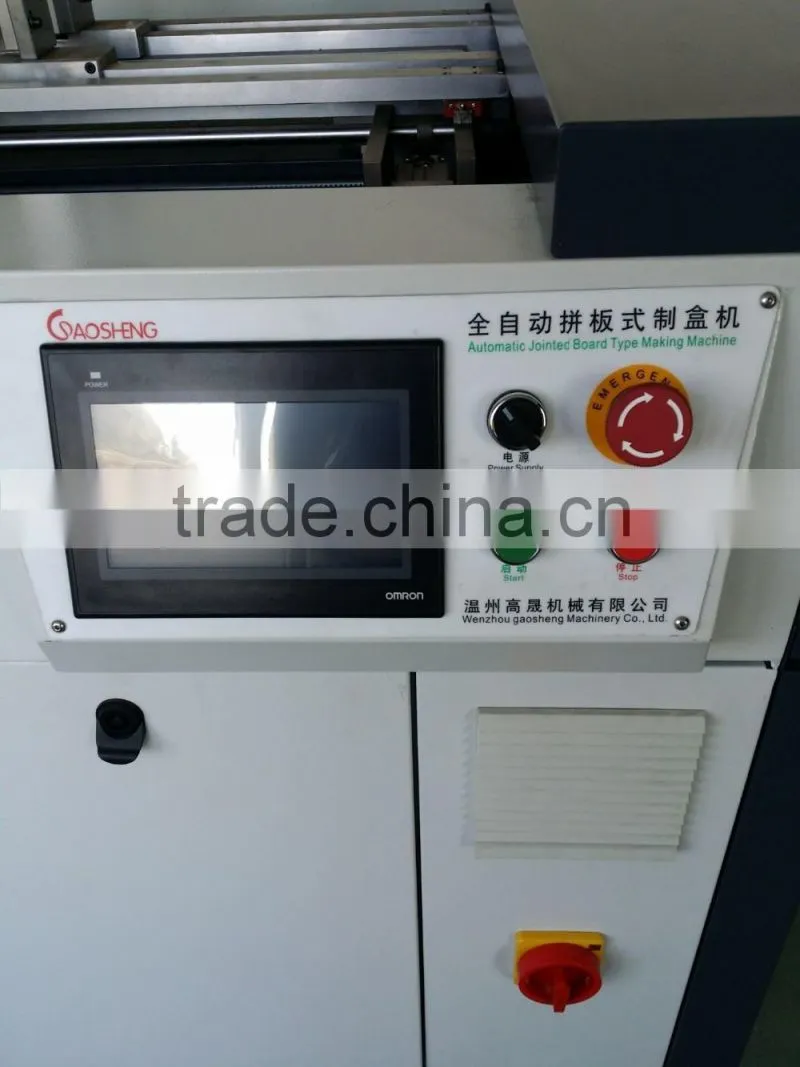

Name: PLc touching screen

Brand:Omron (Japan)

Main Features

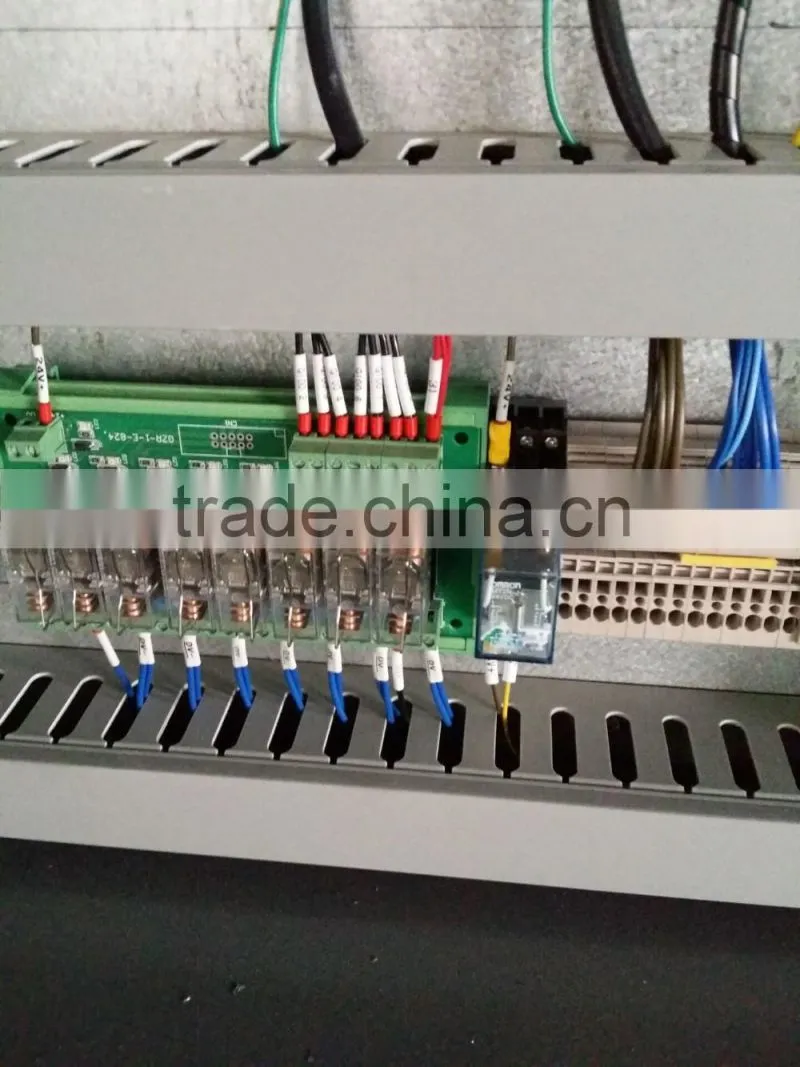

Name: Electrical components
Brand: Omron (Japan)/SCHNEIDER(France)

Machine Parts

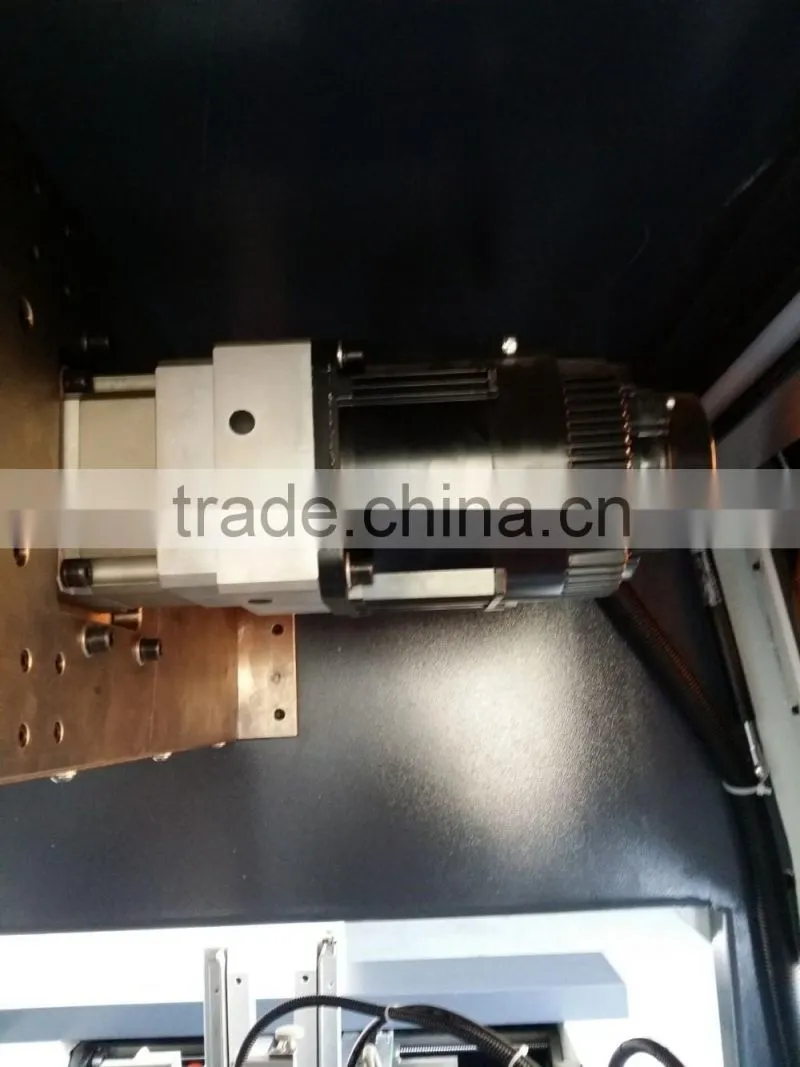

Name: Servo motor
Brand: Omron (Japan)

Main Features

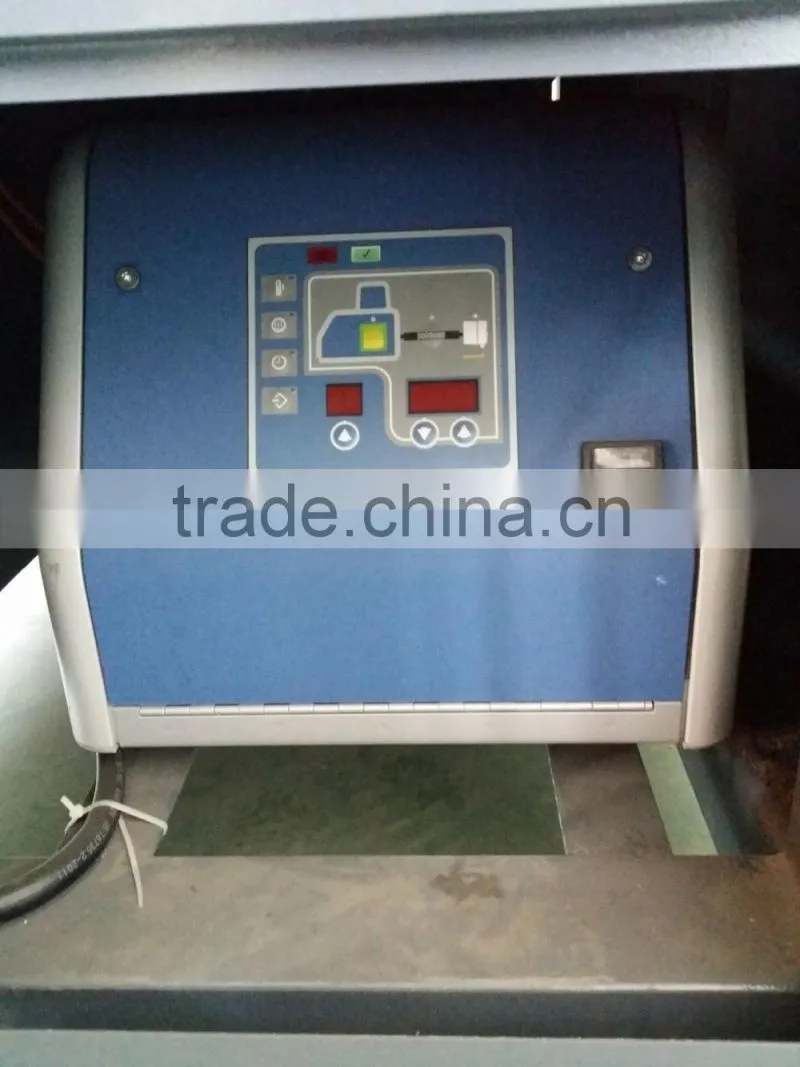

Name: glue device
Brand:Nordson (USA)

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2.3*2.0*2.1m
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
