Factory Directly Supply 3-Wheeled Motorcycle/Cabin Cargo Tricycle
1. Details & Main Features
2. Technical Data
| Specification | |
| 1) Vehicle Info. | |
| Product Name: |
Three wheel motorcycle/ Cargo Tricycle/ 3 wheeler/ Tricycles Cargo/China tricycle /Adult tricycles |
| Dimension (mm): | Length:3100--3700; Width: 1050--1400; Height: 1430-1850 (optional) |
| Loading (kg): | 500~2000 |
| Max. Speed (km/h): | ≥60 |
| Kurb Weight(kg) | 350-550kg |
| Start Mode: | Electric/Foot |
| Color | Red, Blue, Green, Yellow or Others |
| 2) Engine | |
| Brand | Loncin, Lifan, Huajun, Zongshen Heavy duty works engines |
| Engine Type: | Single Cylinder, 4 Stroke, Air-cooled/Water-cooled |
| Displacement: | 150cc/175cc/200cc/250cc |
| Bore×Stroke (mm): | 62×49.5 / 62×58 / 63×62 / 70×64.8 |
| Max. Power &Corresponding RPM: | 9.0kw/7000rpm; 10.5kw/7000rpm; 11kw/7000rpm; 12kw/6500rpm etc. |
| Max.Torque &Corresponding RPM: | 10.5N.m/5500rpm; 13.5N.m/5500rpm; 15N.m/5500rpm; 18.8N.m/5500rpm |
| Ignition System: | C.D.I. |
| Kind of Fuel: | Gasoline |
| Fuel Tank: | 12/22L |
| Min. Fuel Consumption (kw.h): | ≤ 354g/kw.h |
| 3) Chassis (Frame) | |
| keel(mm): | 40*60---50*100strong chasiss |
| Wheel Span (mm): | 980~1180 |
| Wheel Base (mm): | 2100~2500 |
| Ground Clearance (mm): | 160~220 |
| Tyre: | 4.00-12 / 4.50-12 / 5.00-12 / 5.50-13/6.00-13/tractor tire |
| Wheel Base (mm): | 2100~2500 |
| 4) Suspension&Brake System | |
| Front suspension: | Front shock absorber |
| Rear suspension: | Spring Leaf (similiar to truck suspension) |
| Broke Mode (F/R): | Drum brake/ hydraulic brake/disc brake |
| Broke Operation Mode (F/R): | F: Manual-hand R: Foot |
| Transmission Mode: | Shaft drive |
| 5) Rear Axle, Brake & Cargo Box | |
| Rear axle: | Normal car rear axle/ booster rear axle/heavy duty rear axle |
| Application | Heavy duty works |
| Transmission Mode: | Shaft drive |
| Cargo box dimension | L: 1500-2500; W: 1050-1400; Height: 500-900 |
| * All details are approximate, any other dimension available on customers' special requests. | |
| * For more details and information, please contact Huajun Motor Tricycle Manufacturing Co., Ltd. | |

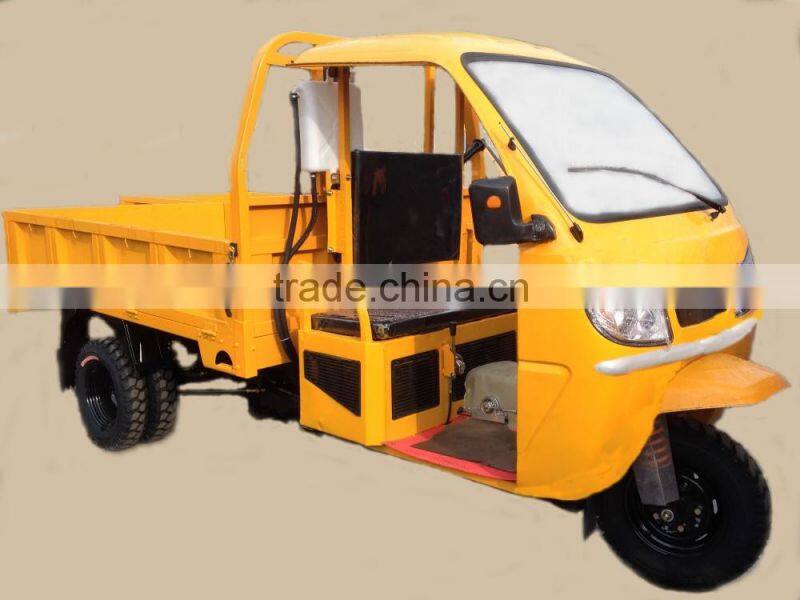

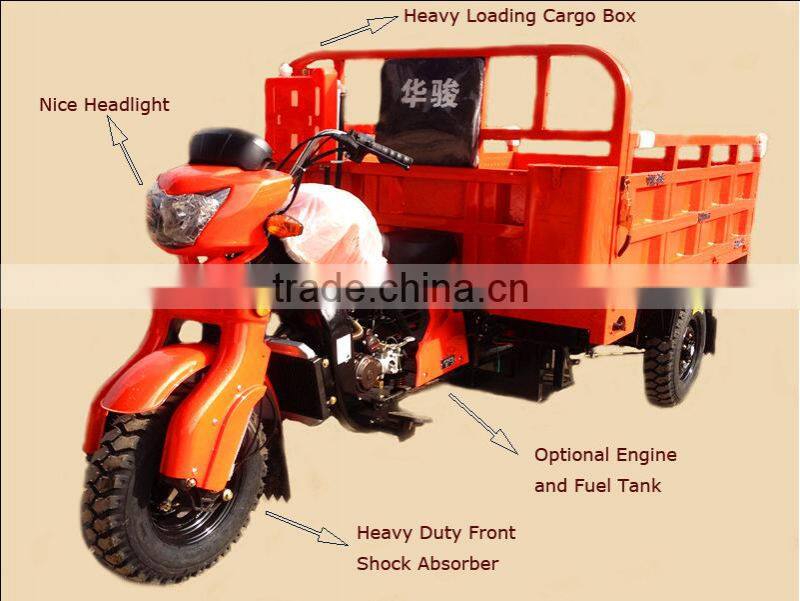

3 Model Pictures Show
4. Certification
5. Our Factory & Manufacture
6. Packing and Delivery
7. Contact Us
