China L1 Used Military Axles With High Quality

China L1 Used Military Axles With High Quality thumbnail-1
China L1 Used Military Axles With High Quality thumbnail-2
China L1 Used Military Axles With High Quality thumbnail-3
China L1 Used Military Axles With High Quality thumbnail-4
China L1 Used Military Axles With High Quality thumbnail-5
China L1 Used Military Axles With High Quality thumbnail-6
China L1 Used Military Axles With High Quality photo-1
China L1 Used Military Axles With High Quality photo-2
China L1 Used Military Axles With High Quality photo-3

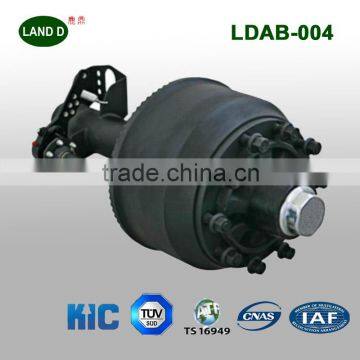

China L1 Used Military Axles With High Quality photo-4
China L1 Used Military Axles With High Quality photo-5

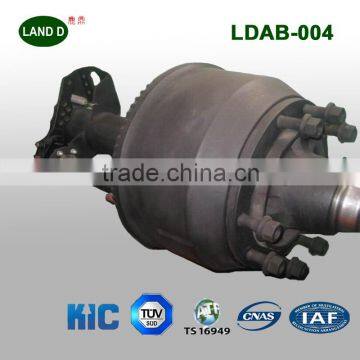

China L1 Used Military Axles With High Quality photo-6
US$ 50.00 - 50.00 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
LAND
Contact Supplier Request Quote Chat Now
Land Transport Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name LAND

Specifications

1. Trailer parts manufacturer American Type 10 studs small semi trailer axle;
2. Max. Capacity: 16T;
3. ISO 16949.

 Product Description

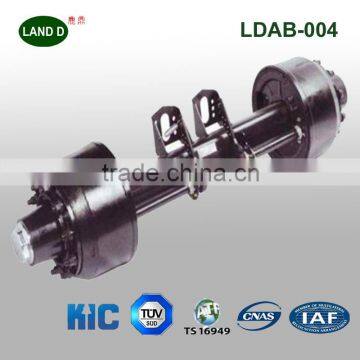

Trailer parts manufacturer American Type 10 studs small semi trailer axle :

1. American semi trailer axle;

2. Small trailer axle;

3. Easy for ABS installation;

4. ISO:16949 manufacturer;

5. American KIC authorized factory.

You may also interested in:

China L1 used military axles with high quality  or China L1 used military axles with high quality

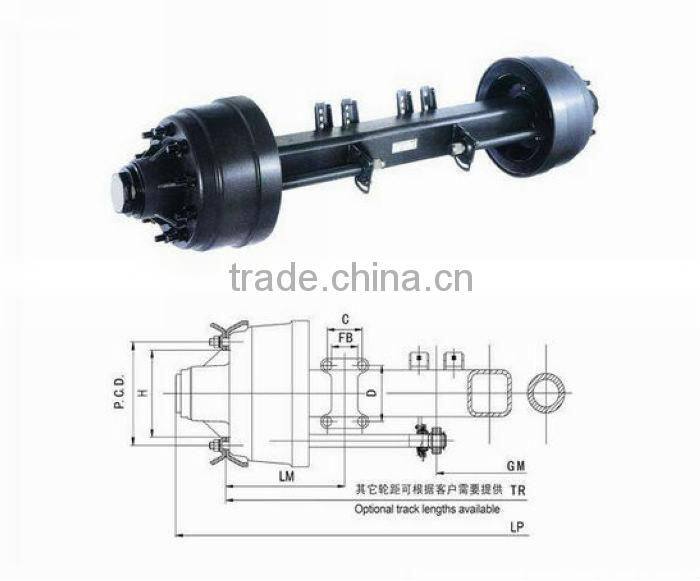

 Semi trailer axle's technical data:

China L1 used military axles with high quality

Model

Max.capacity(kg)

"S" Cam brake (mm)

Track TR(mm)

Spring seat installation(mm)

Center distance of chamber(mm)

Studs(mm)

P.C.D.(mm)

Total length(mm)

Weight(kg)

Note

LDAF-031

10500

S420*180

1820

≤ 435

368

10*7/8“-11 BSF

335

~2165

~358

Outer HM518410/45

Inner HM518410/45

LDAF-036

13000

S420*180

1840

≤ 455

388

10*7/8“-11 BSF

335

~2185

~362

Outer HM518410/45

Inner HM518410/45

LDAF-063

16000

S420*180

1850

≤ 455

396

10*M22*1.5 ISO

335

~2185

~382

Outer HM518410/45

Inner HM220110/49



Model

Beam rating

Axle track(mm)

Air chamber(mm)

Tube size(mm)

Brake size(mm)

Stub

Recommended wheel

PR-11

11000KG

1816

400

127*16

420*180

BSF 10-5/8"-11

20"/22.5"

PR-11

11000KG

1816

400

127*16

420*180

ISO 10-M22*1.5

20"/22.5"

PR-12

12000KG

1840

376

127*18

420*220

ISO 10-M22*1.5

20"/22.5"

PR-12

12000KG

1840

376

127*18

420*220

JIS 8-M20*1.5

M30*1.5

20"/22.5"

 NOTE: Optional track lengths avaliable.

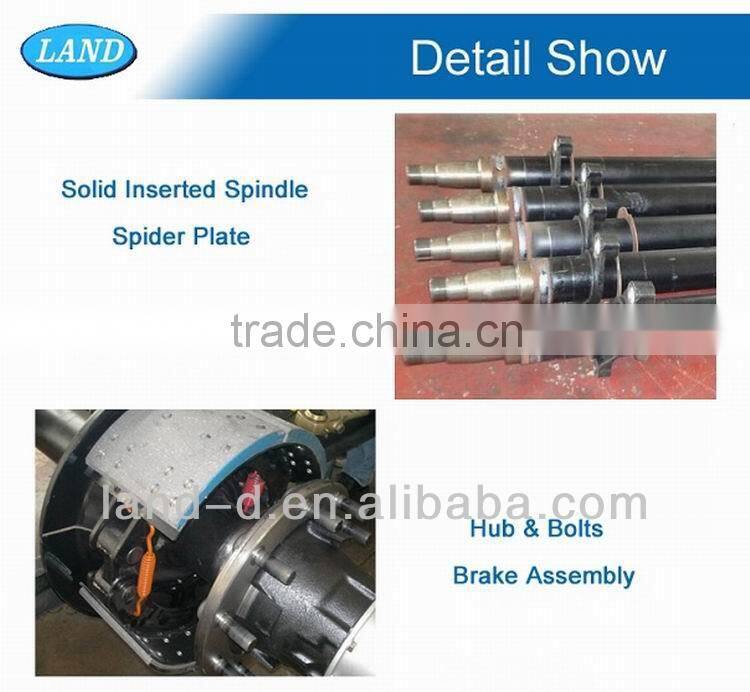

Features:

1. 5"(127mm) round tube, Lowbed Axle.

2. Forged camshafts with hardended wear surface.

3. Solid inserted spindle and bearing journals induction heat treated.

4. Breake components interchange with North America style fast change brakes.

5. Easy for ABS installation.

6. Imported grease from U.S.A.

7.Axles meet Australian ADR and meet U.S.A.FMVSS-121 requirements.

Company Information

LAND-D AXLE ADVANTAGES:

1, The products have already achieved ISOTS16949 and meet U.S.A. FMVSS-121 requirements.

2, Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.

3, Hardened wear surface.

4, Solid inserted spindle, provide superior anti-fatigue capability.

5, High performance premium non-asbestos brake linings, extend service life.

6, Easy for ABS installation.

7, Grease lubricant is supplied by Exxon Mobil.

8, New 100% tight fit hub cap provide optimum.

9, Improved seals at camshafts more safety.

About us:

1. LAND is the biggest professional and experienced manufacture of semi-trailer parts in China. We can supply axle, fifth wheel, suspension, kingpin, container twist lock, etc.



2.Superior quality and good after-sale service is our forever pursuit.

3. Moreover,Land has been authorized to product the American KIC axle, and the only manufacture in China which can produce German type casting fifth wheel .

4. We are expect to having long coorperation with you.

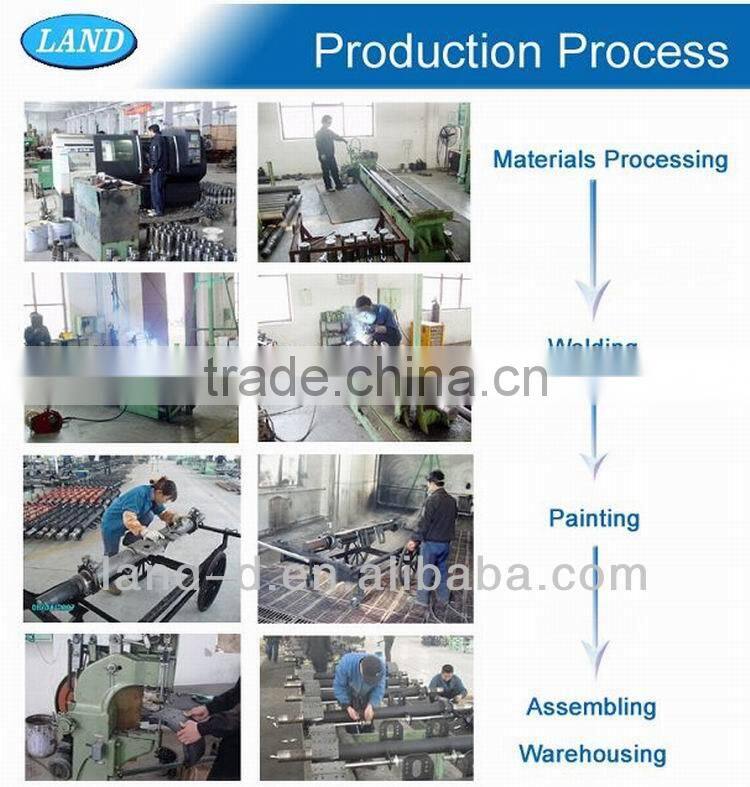

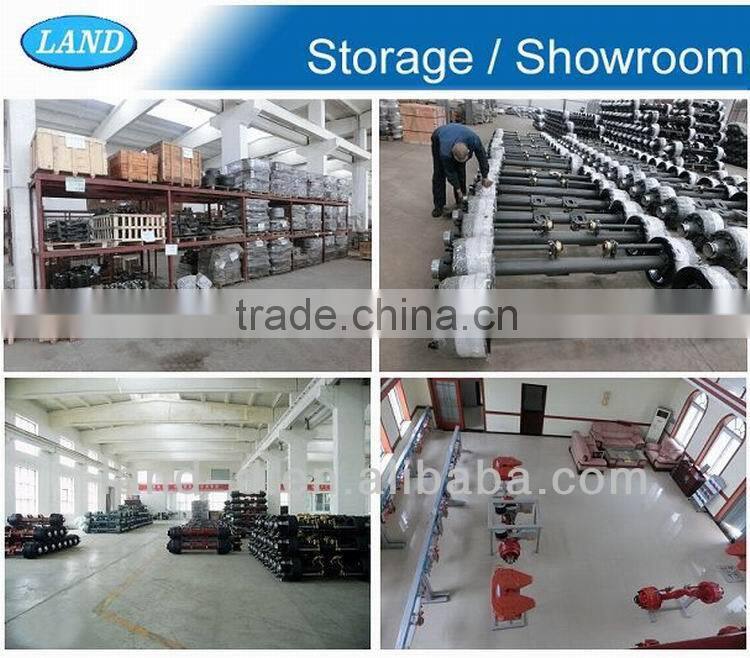

 Our factory:







China L1 used military axles with high qualityChina L1 used military axles with high qualityChina L1 used military axles with high qualityChina L1 used military axles with high quality

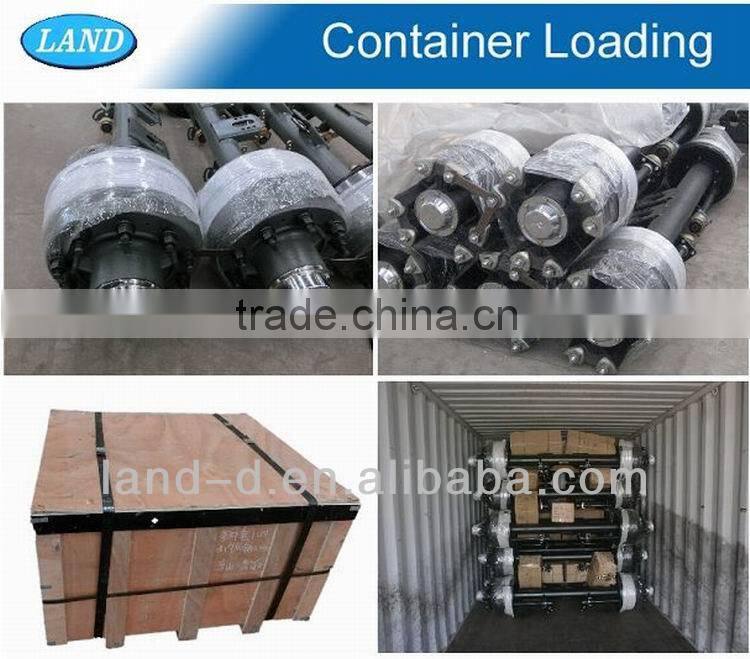

Packaging & Shipping



Packing:

1. One wooden box with a big plastic film inside

2. Put the Suspension Parts orderly in the plastic film

3. Tight the plastic film

4. Packed well with the wooden box

Or according to customers' requests



China L1 used military axles with high qualityChina L1 used military axles with high quality



Our Services









China L1 used military axles with high quality

 Contact us:

Tell:+86-311-67508178 ext:809/Fax:+86-311-67508179 ext:816

Cell:+86-18232171877

Skype:Amy Zhang

Web:/www.land-d.en.china.cn

 Stability you trust,

 Dedication you demand,

 Service you deserve

 Run with the best.

 Feel free to call or email me for any questions you may have.China L1 used military axles with high quality
