Specifications
carbon black briquette machine1.energy-saving,low price
2.easy maintenace
3.long working life
4.high output

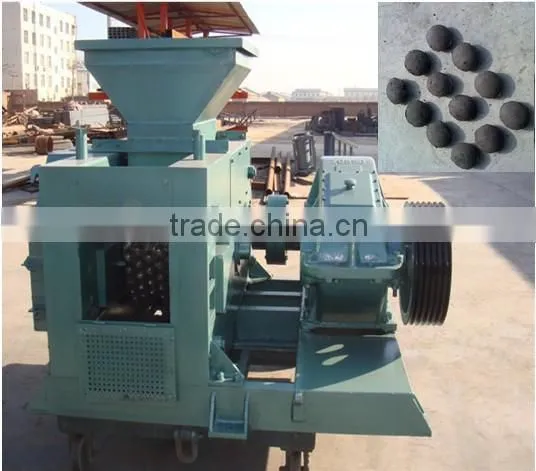

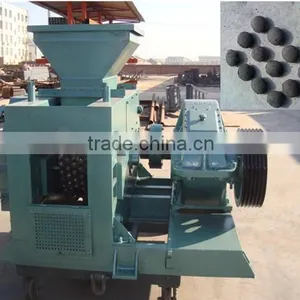

Top quality High capacity pillow shape carbon black briquette machine
Brief introduction of carbon black briquette machine :
Ball press machine is mainly used for pressing hard molding powder material, the feature is big molding
pressure, host revolution is adjustable, equipped with screw conveying device.
The ball press machine is suitable for light materials like coke powder, oxidation iron sheet, dust, coal slime,
all kinds of metallurgy powder, Sponge iron carbon products , has obvious press effect.
Main usage of carbon black briquette machine :
1. Mainly used for : pulverized coal molding, dry powder molding, Desulfurization gypsum molding, coke powder
molding, Scrap iron and various metal mineral powder molding etc.
2. Suitable material: coal powder, coking coal , aluminite powder, scrap iron, oxidation iron sheet, carbon powder,
mineral waste residue, gypsum, tailings, sludge, kaoline, activated carbon, coke breeze and all kinds of powder,
powder lot, waste material ,waste residue. Widely used in refractory material, power plants, metallurgy, chemical
industry, energy, transportation, heating, etc. The material after pressing is energy-saving and environmental protection, easy to transport, increase the using ratio of waste materials, has good
economic benefits and social benefits.
Parameter of carbon black briquette machine :
Model |
TYYQ300 |
TYYQ400 |
TYYQ500 |
TYYQ600 |
TYYQ700 |
TYYQ800 |
TYYQ900 |
Main Power(kw) |
7.5 |
15 |
22 |
30 |
45 |
75 |
95 |
Expression Roll Diameter(mm) |
290 |
360 |
450 |
500 |
650 |
750 |
850 |
Expression Roll Span(mm) |
200 |
240 |
300 |
300 |
300 |
360 |
360 |
Output(t/h) |
2 |
3 |
5 |
10 |
15 |
20 |
25 |
Finished size(mm) |
10-30 |
10-30 |
10-40 |
10-50 |
10-50 |
10-50 |
10-50 |
Dimension(m) |
1.8*1.2*1.6 |
1.8*1.5*1.8 |
2.1*1.5*1.9 |
3*2.2*2.4 |
3*2.5*2.1 |
3*2.7*2.3 |
3*2.8*2.5 |
Note: The above electricity is 3 phase, 380V 50HZ, Special requirement can be customed. | |||||||
Using Area: Coal, charcoal powder, FGD gypsum, Fluorite powder, Iron ore, Wet bulb aluminum ash powder. (8-12% moisture requirement) | |||||||
Final products:
Usage:
Zhengzhou Tianyuan Environmental Protection Machinery Co., Ltd.
Tel/Fax: 86-371-67103029
Skype: olivia910402
Professional manufacturer of woodworking machine, including wood powder machine, wood crusher, dryer machine, wood chipper, wood shaving machine, wood pellet machine, briquette press machine , ball briquette press machine etc. Contact us freely when you need.
