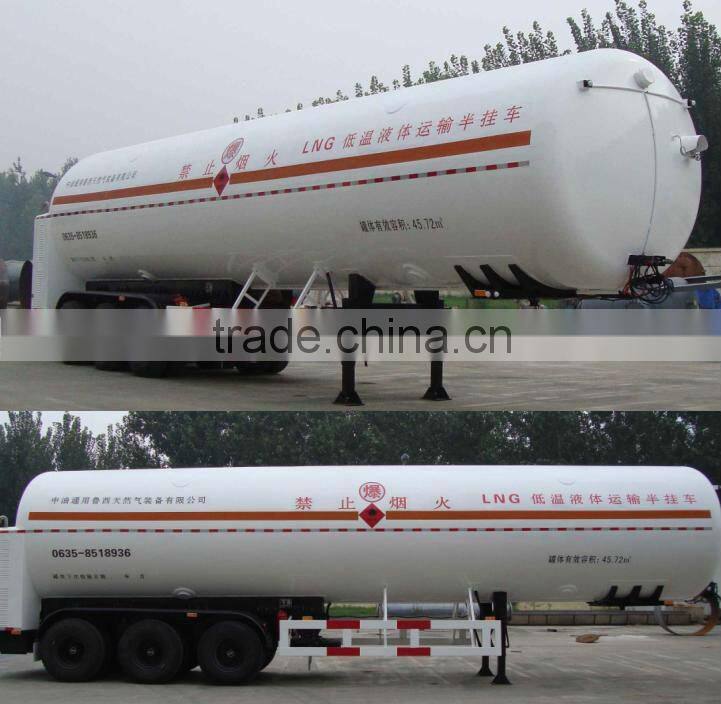

Help Center173 High Capacity Vacuum Insulated Cryogenic Semi Trailer, 50.8CBM, BV Certified
Related Products
-
4 Cryogenic LNG Tanker,BV CertifiedUS$ 60,000 - 150,000MOQ: 1 Set -
LNG Dispenser/LNG Filling GunUS$ 15,000 - 35,000MOQ: 1 Piece
-
Tank for Vessel/pressure Vessel/full Volume DesignUS$ 80,000 - 100,000MOQ: 1 Set
-
LNG Skid-mounted Device/Double Pump Skid-mounted Device/2000m3 per DayUS$ 10,000 - 50,000MOQ: 1 Piece
-
LNG Skid-mounted Device/Single Pump Skid-mounted Device/2000m3 per DayUS$ 10,000 - 50,000MOQ: 1 Piece
Specifications
1.High capacity vacuum insulated cryogenic semi trailer;2.50.8CBM, -162 centigrade;
3.Stainless steel;
4. ISO BV
High capacity vacuum insulated cryogenic semi trailer designed by Zhongyou Tongyong Luxi Natural Gas Equipment Co.,Ltd possess the features as follow:
Large capacity, easy to operation, high safety;
High vacuum insulated;
Inner vessel material: 06Cr19Ni10;
Outer vessel material: Q345R
Self steering axles available;
Various specification, tailored design welcomed;
Rated filling rate no less than 90%;
BV certificate will be provided.
Application:
Cryogenic semi trailer for LNG is suitable for large-scale and long-distance transportation, and can provide natural gas to the areas without gas network transport as well, thus meeting the industrial and civil demand.
Geometric volume(m3) of LNG semi trailer:
- 45.72, 50.8, 53 etc;
- Customer’s specification is welcomed.
Specification:
Cryogenic LNG semi trailer | |
Dimensions |
12985x2490x3990MM |
Filling medium |
LNGLiquefied Natural Gas |
Working pressure |
0.7MPa |
Working temperature |
-162°C |
Geometric capacity |
50.8L |
Opening pressure of safety valve |
0.74MPa |
Rated load |
19477KG |
Type of insulation |
High-vacuum insulation |
Material of inner container |
06Cr19Ni10 |
Material of cover |
Q345R |
Corporation:
Zhongyou Tongyong Luxi Natural Gas Equipment Co.,Ltd is one of the largest CNG & LNG trailer manufacturer founded in 2008. We are a professional manufacturer of pressure vessels, a joint venture between Sinogas General Group (public listed company) & Luxi Chemical Co., Ltd (public listed company). We value our reputation, pay special attention to the quality of products and adopt flexible management and operation system.Corporation occupys more than 200,000 square meters. There are more than 200 workers including 30 technicians. Corporation has passed ISO9000 AND BV inspection.
