Help CenterH6 CNG Tube Trailers for Mobile Gas Containment Needs, High Pressure 250bar
Related Products
-
H5 CNG Containment Products Made of Jumbo Tube Trailers, Storing 8000m3, High Pressure 250barUS$ 60,000 - 200,000MOQ: 1 Set -
H4 CNG Containment Equipment, 12 Tubes Trailer, Large Storage Capacity, Super Light-weighted, 3 AxlesUS$ 80,000 - 200,000MOQ: 1 Set
-
H3 Gas Containment Equipment for High Pressure CNG,steel, Mobile, 12 Tubes,US$ 80,000 - 200,000MOQ: 1 Set
-
H2 Gas Containment for High Pressure CNG, Mobile, Storing 4000 to 8000m3US$ 80,000 - 200,000MOQ: 1 Set
-
H1 Mobile Gas Containment Products for CNG, 12 TubesUS$ 80,000 - 300,000MOQ: 1 Set
Specifications
1.Mobile gas containment trailers2.WP 250bar, TP 375BAR
3.seamless steel,12tubes
4.8700CBM,3 axles
5.ISO11120

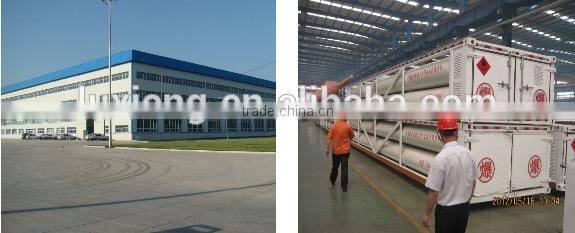

Zhongyou Tongyong Luxi Natural Gas Equipment Co.,Ltd. is a manufacturer of gas containment products manufacturer and a pioneer in this field in China, which ensures that we supply not only
present products, but also update products, most suitable solution and in-time technical support.Any inquiry or comment from our clients is highly appreciated.
Manufacturer’s recommendation!
A new product from LUXI Co.
Lighter weight, larger capacity, CNG tube trailer!
For example:
12tubes, 8700CBM, only weight:31MT!
Much lower price than composite trailer!
You are free to worry about weight limit in your country, and reduce transporting cost!
Part A:

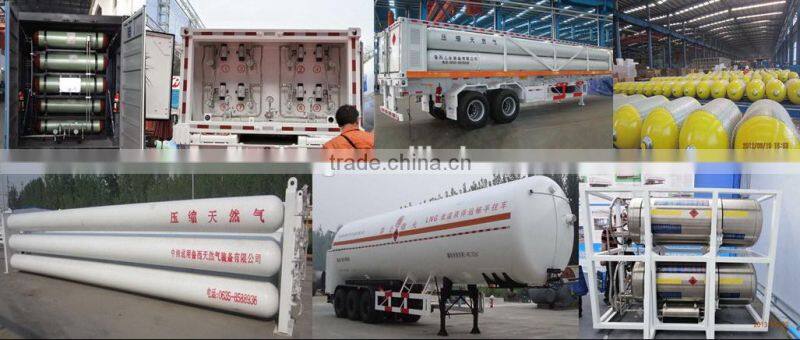

The tube trailer is designed specially for bulk-transportation of compressed natural gas(CNG).
Advantage:
1.Payload:8700CBM of compressed natural gas, equivalent to 6200kg of gas.
2.OD559 seamless steel tubes are selected, less tube quantity,less joints, and safer;
3.Seamless tubes are selected, close-spinning technology is adopted, no leakage and safety operation can be ensured;
4.Parker valves and other top class parts are selected to strengthen the quality;
5.Manufacturing and exporting experience since 2008, annually 800 sets production experience to ensure mature and steady products quality;
6.Quality insurance:from Shandong Special Equipment Inspection Institute, to manufacturer self inspection, to third party inspection companies(BV,SGS etc).
7.One-stop purchasing experience, quality tractors and chasses can be sourced by us.
Our attitude:
Help you to transport green energy affordably!
Part B:
Specification:
Item |
Cylinder Qty |
CNG Filling Volume |
CNG Filling Weight |
Total Water Volume |
Tube Skid Container Net Weight (without chassis) |
Working Pressure |
Hydraulic Test Pressure |
8tube-5100NM3 |
8pcs x OD559mm |
5100/NM3 |
3670KG |
16.16NM3 |
23310KG |
|
|
9tube-6210NM3 |
9pcs x OD559mm |
6210NM3 |
4510KG |
19.89NM3 |
28721KG |
250Bar/3600PSI |
375Bar/5400PSI |
10tube-6900NM3 |
10pcs x OD559mm |
6900NM3 |
4970KG |
22.1NM3 |
31800KG |
|
|
11tube-8000NM3 |
11pcs x OD559mm |
8000NM3 |
5700KG |
25.52NM3 |
28800KG |
|
|
12tube-8700NM3 |
12pcs x OD559mm |
8700NM3 |
6240KG |
27.78NM3 |
31016KG |
|
|
Please contact us for further details
Part C:
Product family:
Jumbo CNG cylinders
CNG tube trailer
CNG cylinder for vehicle , CNG-1 , CNG- 2
CNG storage banks
LNG cylinders
LNG TANK
......
