Specifications
Victory nanometer welding wire ER50-61. stable arc
2. low splashing
3. high deposited efficiency
4.CE/IS9001/CCC
Victory nanometer welding wire ER50-6
ER50-6 is similar with AWS ER70s-6 is used for welding 500 MPa low alloy steel single and muti-pass welding; also for high speed thin plates,pipe line steel welding.Suitable for manual welding, automatic welding and robot welding,such as oil machinery, heavy crane machinery, pressure vessels,oil-chemical vessels, ship body, bridge, constrction steel structure,ect.
VICTORY new material is short for VICTORY environment protection activity of copper coated wire. It is our new high technology product. On the basis of independent research and development, joint scientific research institution. By Experiment Research breakthrough several Technical problems, our company eventually Developed environment protection activity of copper coated wire, consistent with development trend of welding material at present. Had pass through the national welding materials for quality supervision. Reach at International standard GB/T8110-2008.New type welding product performance exceed traditional welding products.
Envi-protection Non-copper activity welding apply to manual welding, auto-welding, robot welding. it can improve the user production efficiency, reduce production cost, It is worth mentioning that it can create more cleanly environment of the workshop.
2.Main Characteristics:
1, No copper and less harm to the operator,environmental protection;
2, ARC stability and reliable
3, Good ARC
4, Less spatter,and less smoke
5, Feeding stability
6, High strength and forming better
7, Antirust and conductivity
8, Less abrasion to the conductive nozzle.
3.Max Chemical composition(%):
C |
Mn |
Si |
S |
P |
Cu |
Max Other |
0.08 |
1.50 |
0.92 |
0.016 |
0.020 |
0.20 |
0.50 |
Physical Characteristics:
AWS |
Min Tensile strength |
Min Yield strengrh |
Min Elongation |
Akv |
ER50-6 |
540Mpa |
420Mpa |
29% |
90 |
Uses:The welding consumable in use process is higher than common welding voltage 1 to 2 volts, current constant.

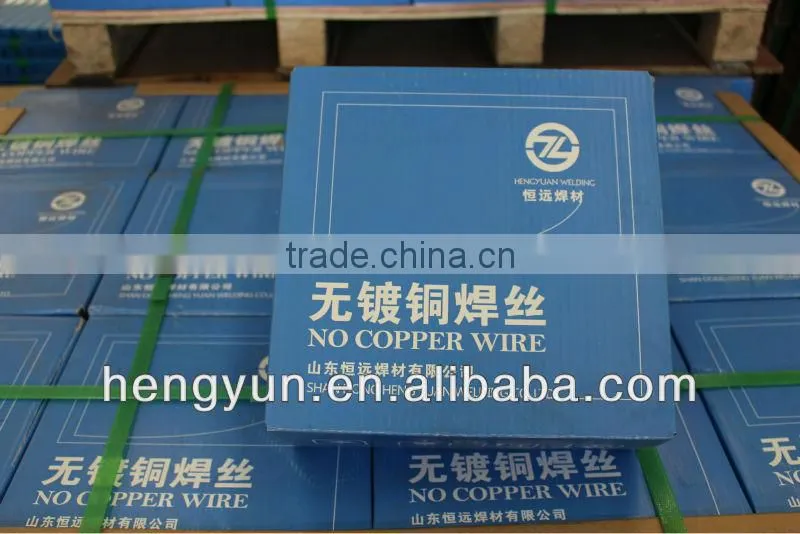

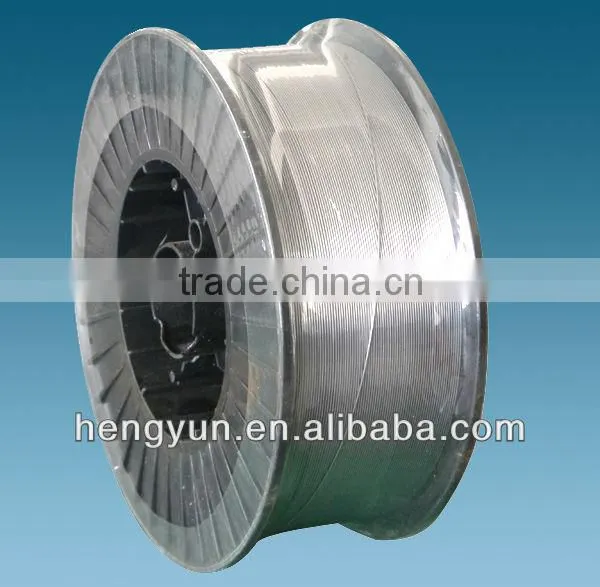

4.Product show:

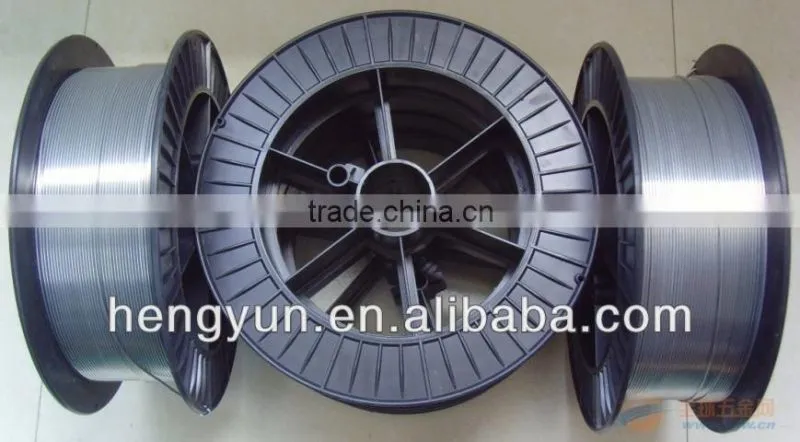

Comparison of copper wire and no copper wire
