American Lifting Capacity Type Truck Landing Gear With ISO Standard

American Lifting Capacity Type Truck Landing Gear With ISO Standard thumbnail-1
American Lifting Capacity Type Truck Landing Gear With ISO Standard photo-1
US$ 130 - 200 MOQ: 10 Pairs
Key Specifications
Get Latest Price
Parts:
Trailer Axles
OEM No.:
LD30T landing gear-1
Max Payload:
30T
Contact Supplier Request Quote Chat Now
Land Transport Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai or any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Parts Trailer Axles
OEM No. LD30T landing gear-1
Max Payload 30T

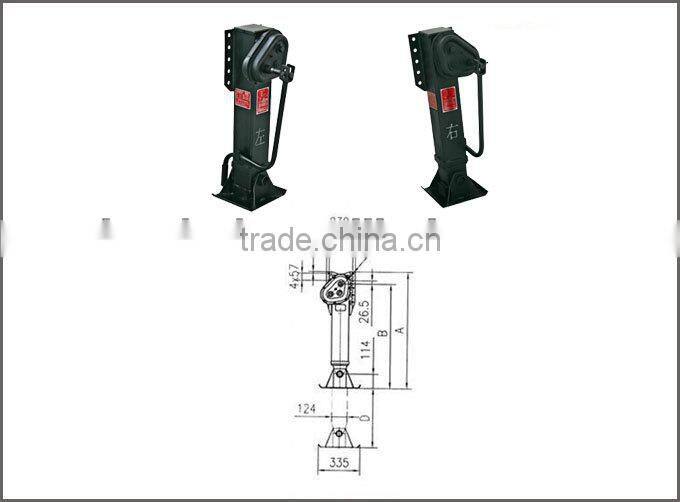

Size See the following drawing
Place of Origin Hebei, China
Brand Name Land-d landing gear
Model Number LD30T landing gear-1

Specifications

land-d landing gear
1.Static load capacity: 80 T
2.Lifting capacity:25/28/30 T
3.Standard weight: 100/102/108 kg

American Lifting Capacity Type Truck Landing Gear With ISO Standard

FAQ

  Our products are cheap and quality. We can produce according to customer product requirements.

Company Information



Our factory which is also our "second home"

American Lifting Capacity Type Truck Landing Gear With ISO Standard



American Lifting Capacity Type Truck Landing Gear With ISO Standard

Our Services

Our other products for your choice

American Lifting Capacity Type Truck Landing Gear With ISO Standard

Packaging & Shipping

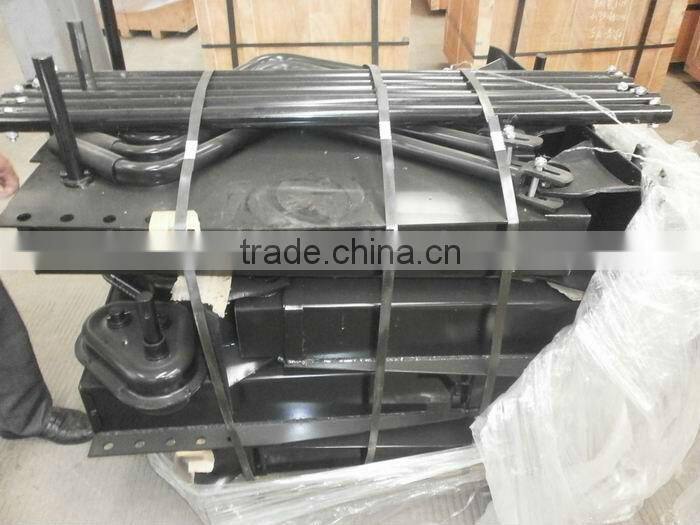

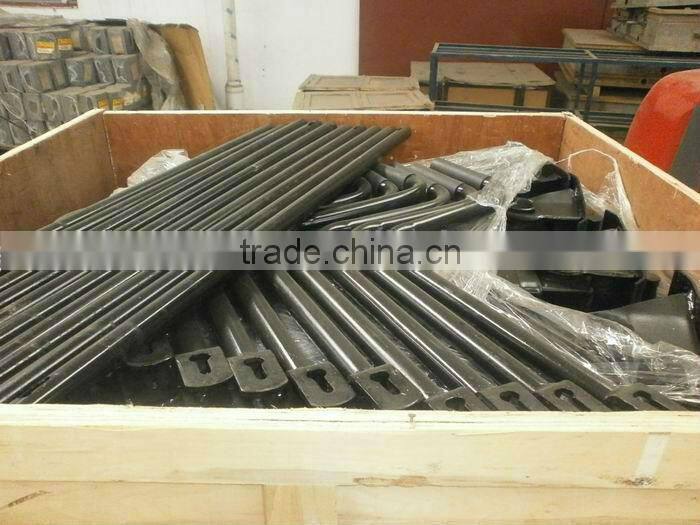

Packaging of our landing gear

American Lifting Capacity Type Truck Landing Gear With ISO Standard



American Lifting Capacity Type Truck Landing Gear With ISO Standard



Product Description



♦ Dimensions of connection meet TTMA.AAR specification

♦ Lead screw roll forming extra-duty feature, gears are high grade forging steel

♦ Lead screw unt applies floating construction, easire for lifting and longre persistence for use

♦ Static load test, lift capacity test and drop test accord with ABS specification.

♦ Lead screw and unt are entirely obturated in the grease room. Screw will be covered with new grease while it works.

American Lifting Capacity Type Truck Landing Gear With ISO Standard

Model LD30T
Static load capacity(T) 80
Lifting capacity(T) 30
Travel max.(mm) 14 17 19
High gear(mm) 7.5
Low gear(mm) 0.71
Assembly height(mm) 990
Standard weight(kg) 108





 American Lifting Capacity Type Truck Landing Gear With ISO Standard
