High quality 1325 china cnc wood carving machine
cnc router Advantages:
1.Heavy duty body.Casted structure.
2. Italy HSD 6kw air cooling spindle, more powerful, longer life time with higher precision
3.XYZ guide rail use 25mm HIWIN linear round guide rail, it is more stable and has longer life than the normal round one or hinese one.
4.High-performance driven motor to ensure the machine’s high speed and accuracy
5. Z axis uses 25mm high precision ball screw and can avoid spindle suddenly up and down.
6.CE certification, quality guarantee
7.Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
8.Vacuum with aluminum t-slot,7.5kw vacuum pump provide strong suck.
Detailed parameters as following.
Model |
1300*2500mm |
Structure |
heavy duty |
Table |
vacuum table 6 zones with aluminum t-slot |
X Y Z working size |
1300*2500*300mm |
X Y Z rail |
HIWIN Linear 20 square guide rail |
X Y transmission |
Rack & pinion |
Z transmission |
Ball screw |
Max. speed |
60m/min |
Max. working speed |
50m/min |
Spindle |
HSD 6kw air cooling spindle |
Spindle speed |
18000rpm |
Collets |
ER20 3.175-16mm |
Precision |
0.01mm |
Repeat reposition accuracy |
0.025mm |
Inverter |
Fuling 5.5KW |
Motor |
servo motor |
Driver |
servo driver |
Voltage |
380v 50hz/60hz |
Transformer |
Yes |
Lubrication |
include |
Dust collector |
include |
Control system |
4 axis DSP |
Software |
Artcam |
Command language |
G-code, plt, uoo, mmg |

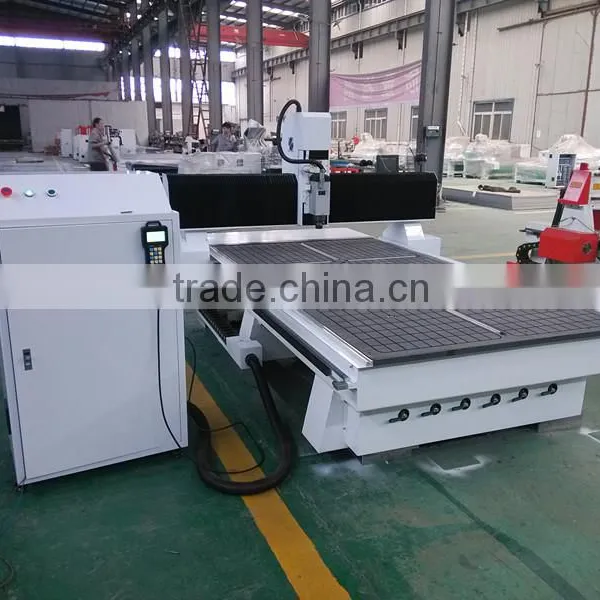

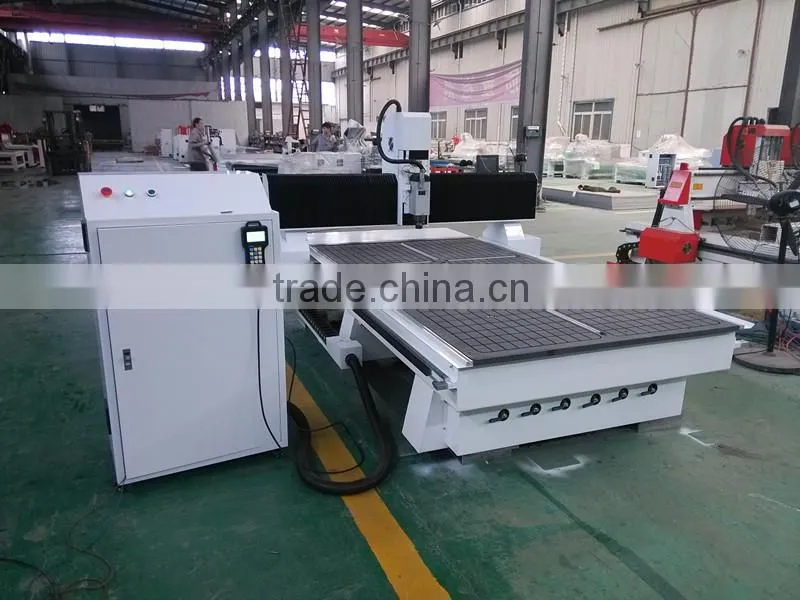

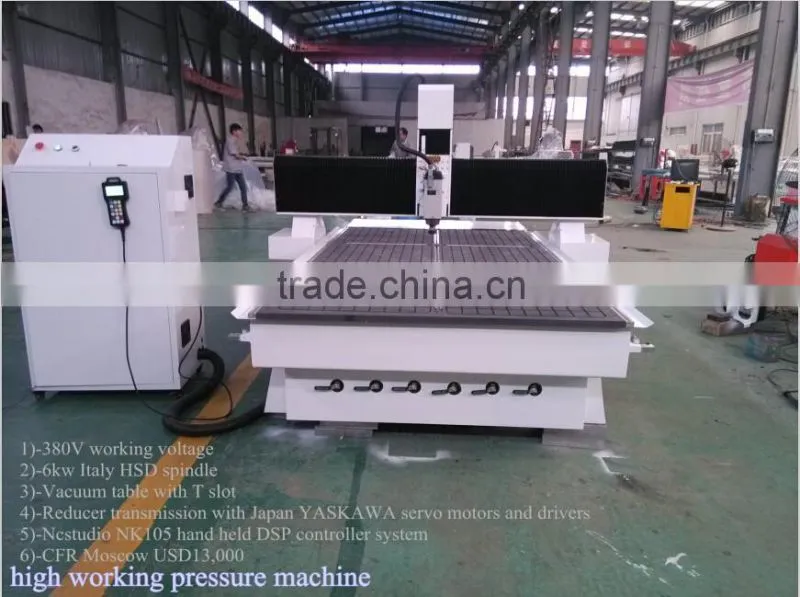

Machine picture:

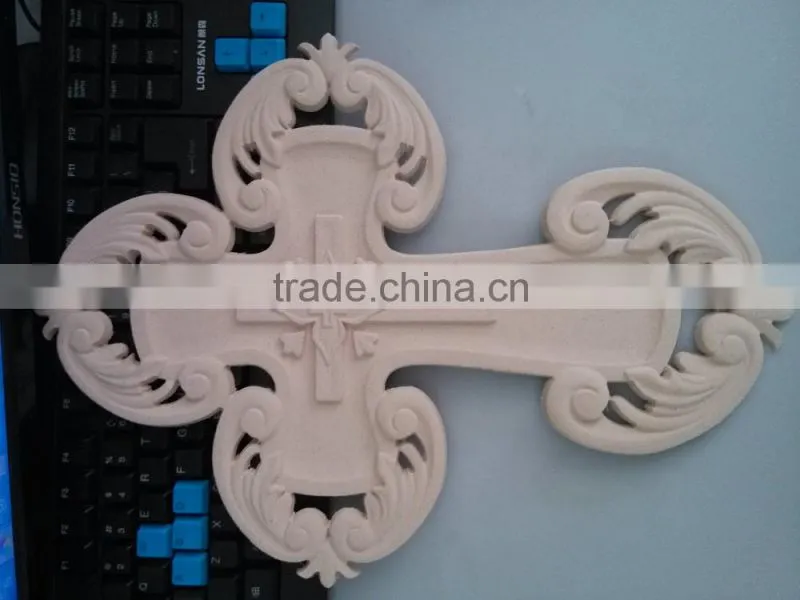

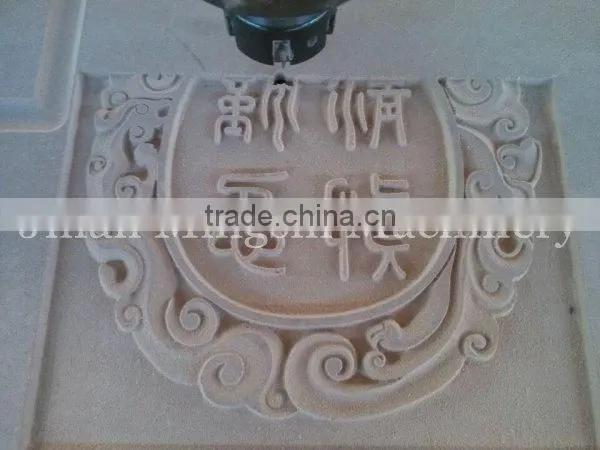

The finished picture :
Payment and other item:
1.payment terms:30% T/T for deposit,70%T/T paid before shipping. FOB terms
2.30%T/T for deposit, 70%T/T paid against copy of B/L. CIF terms. or CNF
3.The whole cnc router is one year warranty.
4.24hours online service or tel or email.
5.If partsbroken because of quality problem,we supply for free.but not include express fees.

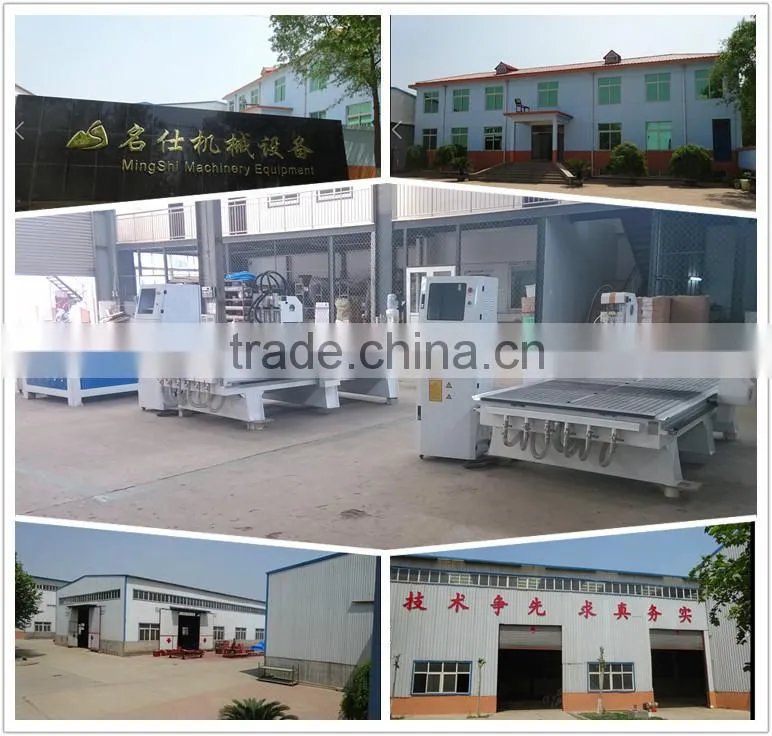

Jinan Mingshi Machinery Equipment Co,LTD
Jinan Mingshi Machinery Equipment CO.,Ltd is located in the national industrial park of Jinan Licheng district, which covers an area of 10000 square meters and has moden workshop.machines are exported to the USA, Germary, Canada,Australia, Russia, Southeast Asia and more than 70 countries and region. High quality is our company's eternal pursuit, so our machine is of high precision, fast speed, more stable performance and can meet the needs of different industries users. We can also make special models on your request.
Company Culture:
Machine CERTIFICATE:
Q1.how to get the most suitable machine and best price ?
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
Q2.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freel
and if you are busy ,we will send you a CD to get the use of our machine.
If you have any questions about our machine ,please feel
free to contect us!
