Home > Products > New Products > 50L factory body cream manufacturing mixer
50L factory body cream manufacturing mixer
- 30 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Mixer Type: | Homogenizer | Product Type: | Other, coametic |
Application: | Liquid with Suspended Solids | Additional Capabilities: | Milling | Place of Origin: | Jiangsu, China |
Brand Name: | DZAE | Model Number: | ZJR-50L | Max. Loading Capacity: | 50L |
Voltage: | 110v-480v | Power(W): | 3kw | Dimension(L*W*H): | 1400*600*(1950-2500)mm |
Certification: | CE,ISO9001 | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

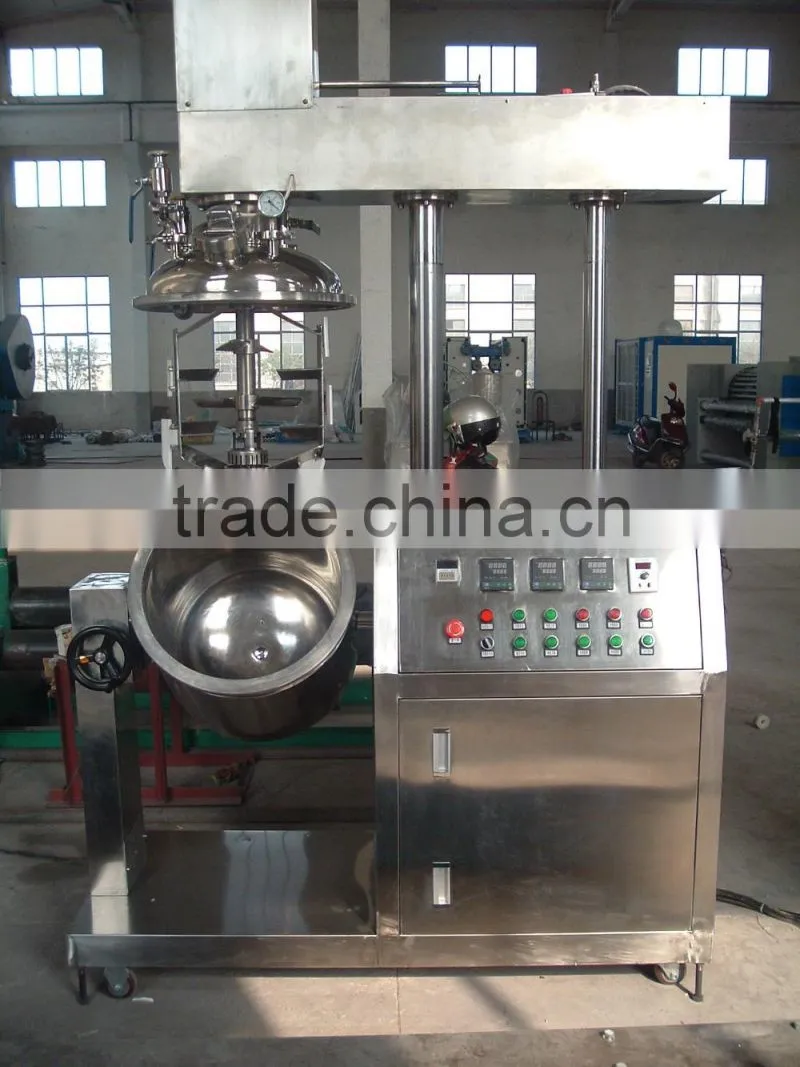

ZJR-50L Factory body cream manufacturing mixer
Technical parameters
Emulsifying pot | Design volume(L) | 68 |
Capacity(L) | 50 | |
Scraper stirring power(kw) | 1.1 | |
Scraper stirring Speed(rpm) | 0-80 | |
Homogenizer power(kw) | 2.2 | |
Electrical heating power(kw) | 3 | |
Homogenizer speed(rpm) | 0-3500 | |
Water pot | Design volume(L) | 38 |
Capacity(L) | 30 | |
Stirring power(kw) | 0.55 | |
Stirring speed(rpm) | 1440 | |
Electrical heating power(kw) | 2 | |
Oil pot | Design volume(L) | 25 |
Capacity(L) | 20 | |
Stirring power(kw) | 0.55 | |
Stirring speed(rpm) | 1440 | |
Electrical heating power(kw) | 2 | |
Dimension(L*W*H): | 1400*600*(1950-2500)mm |
1. Mixing oil and water phases materials in high speed to get perfect emulsion product of good quality.
2. Machine consists of vacuum-resistant vessel with jacket for heating and cooling. Equipped with high speed homogenizer, scraping agitator, vacuum pump, and hydraulic pump for lifting, heating & cooling system.
3. With vacuum pump to take the air bubbles out of mixed product, and extend the time of storage.

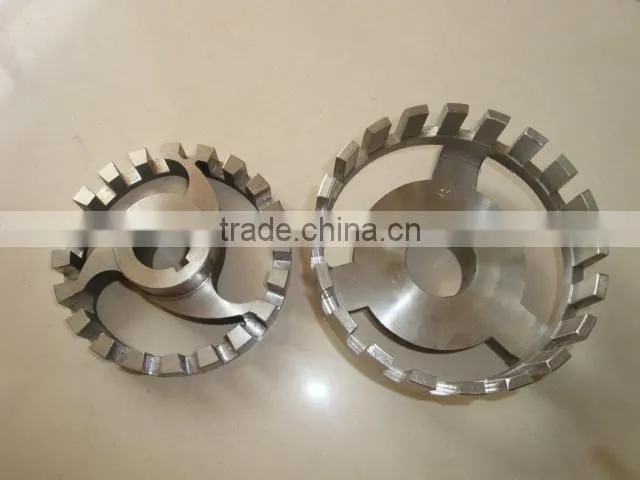

4. Scraping unit is with moveable teflon scrapers to scrape off the materials on the tank wall and the anchor to move the materials to the center area to get better blending and mixing. The teflon scrapers are maintained manually and easily without any tool.
5. Our vacuum emulsifying equipment equipped with heating & cooling system which simplifies the processing. Within this same equipment, you can do from heating-melting-emulsifying-air bubble reduction(by vacuum)-cooling without changing vessels, it saves lot of labor and time for your production.
6. All contacted parts of equipments are SUS316L,the product homogenized in vacuum and close vessel can be sanitary and high quality.

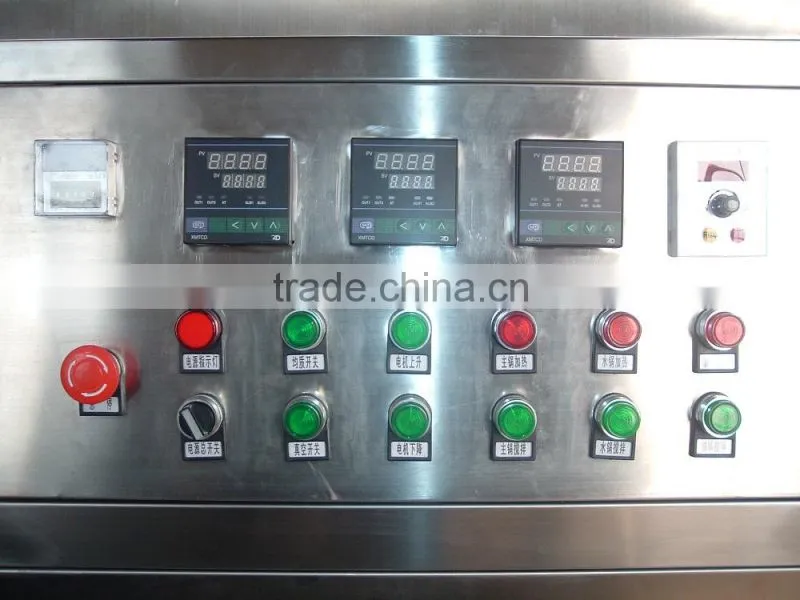

7. The measuring of raw materials, the recording of temperature for heating, melting, emulsifying, cooling, and the change of mixing speed, and the vacuum suction can be controlled.
Lifting,Mixing,Homogenizing,Dispersing,Heating,Cooling,Dosing,Vacuum,Pressure,Filter,Condensation,Distillation,Constant temperature control and so on.
Cosmetic: face cream, hand cream, sunscreen cream, eyelash to cream, hair gel, lotion, bath shampoo,hair gel, nail polish, hair conditioner etc.
Pharmaceutical industry: ointments, syrup, nutrition, bio-products, paste of pharmaceutical etc.
Daily use industry: toothpaste, detergents, shoes polish, soap, fragrance etc
Food industry: sauces, jam, chocolate, butter, vegetable proteins, animal proteins etc.
Chemical industry: Painting, pigment, dyes, paints, adhesives detergents.
Vacuum Emulsifying Mixer Series that is include: emulsification boiler(fluctuating nanhead, overturn boiler), water boiler, oil water, vacuum set, heating and temperature control systems, cooling systems, electric machinery control systems, ect.
Packing: wooden cases or container for sea freight or accoding to the clients requirements.
Shipping: European Countries: 22-28 days
United States: East --13-16 days, West--21-28 days
Brazil: 30-40 days
Russia: 36 days
Asia Countries: 3-5days
1:Warranty time: 1year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
2:Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3:Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
4:Maintenance services: any malfunction happened, once you contact us, we will reply you within 24 hours except the special reasons.
5:Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
6:Certificate services: we can provide related certificates to customers freely according to the request of customers.
7:Inspection services: you can ask the third party inspection company or your inspector to inspect the products before shipment.
Warmly welcome to our factory to get more informations about our machines!
Factory address: Changdong Industrial Park, Chang'an Community, Yanqiao Street, Huishan Dist., Wuxi, Jiangsu, China (Mainland)
