Work Principle
Suspensions will be put into the hermetic straining chamber by pump, at the function of the pressure, Susprnsion will flow through the filter layer, filter memrane and other filter materials, flow out through the filter membrane then, the filter residue will be left and become filter cake in the sheet frame, so Purpose for the solid-liquid separation will be come true.
Application
—— Use for solid-liquid separation of various floats, it is widely used in many industries, as Medical, Chemical industry, foodstuff, environmental protection, Water treatment, Electronics, Textile, Electroplate and other relative industries.
Technical Data
| Model | Plate Number |
Filtration Area (m2) |
Dimension (mm) |
Membrane Aperture |
Pressure (Mpa) |
Water Flow (T/H) |
Motor Power (kw) |
Outline Dimension (mm) |
Import (φmm) |
Export (φmm) |
| CR100-10 | 10 | 0.078 | φ100 | 0.8 | 0.15 | 0.8 | 0.55 | 600*300*600 | 15 | 16 |
| CR150-10 | 10 | 0.170 | φ150 | 0.15 | 1.5 | 0.55 | 650*380*650 | 20 | 15 | |
| CR200-10 | 10 | 0.34 | φ200 | 0.15 | 2.0 | 0.55 | 650*400*700 | 20 | 15 | |
| CR300-10 | 10 | 0.700 | φ300 | 0.2 | 4.0 | 1.10 | 700*500*800 | 25 | 20 | |
| CR300-20 | 20 | 1.4 | φ300 | 0.2 | 8.0 | 1.10 | 800*500*800 | 38 | 25 | |
| CR300-30 | 30 | 2.1 | φ400 | 0.2 | 10.0 | 1.10 | 900*500*800 | 38 | 25 | |
| CR400-10 | 10 | 1.250 | φ400 | 0.2 | 6.0 | 1.10 | 900*600*1000 | 38 | 25 | |
| CR400-16 | 16 | 2 | φ400 | 0.2 | 9.0 | 1.50 | 1000*600*1000 | 38 | 25 | |
| CR400-20 | 20 | 2.5 | φ400 | 0.2 | 10 | 1.50 | 1100*600*1000 | 38 | 25 | |
| CR400-24 | 24 | 3 | φ400 | 0.3 | 12.0 | 2.20 | 1200*600*1000 | 38 | 25 | |
| CR400-30 | 30 | 3.8 | φ400 | 0.3 | 16 | 2.2 | 1300*600*1000 | 45 | 25 | |
| CR400-32 | 32 | 4 | φ400 | 0.3 | 18 | 2.2 | 1320*600*1000 | 45 | 25 | |
| BAS200-10 | 10 | 0.4 | 200*200 | 0.15 | 3 | 1.1 | 650*380*650 | 15 | 15 | |
| BAS300-10 | 10 | 0.9 | 300*300 | 0.15 | 6 | 1.1 | 700*500*800 | 20 | 15 | |
| BAS400-10 | 10 | 2 | 400*400 | 0.15 | 10 | 1.5 | 900*600*1000 | 20 | 15 | |
| BAS400-20 | 20 | 3 | 400*400 | 0.15 | 12 | 2.2 | 1100*600*1000 | 25 | 20 | |
| BAS400-26 | 26 | 4 | 400*400 | 0.2 | 15 | 2.2 | 1150*600*1000 | 38 | 25 | |
| BAS400-32 | 32 | 5 | 400*400 | 0.2 | 18 | 2.2 | 1200*600*1000 | 38 | 25 | |
| BAS400-38 | 38 | 6 | 400*400 | 0.3 | 21 | 2.2 | 1300*600*1000 | 38 | 25 | |
| BAS400-44 | 44 | 7 | 400*400 | 0.3 | 24 | 3.0 | 1360*600*1000 | 38 | 25 |

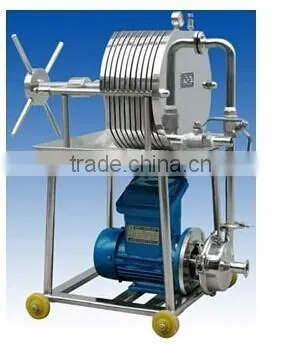

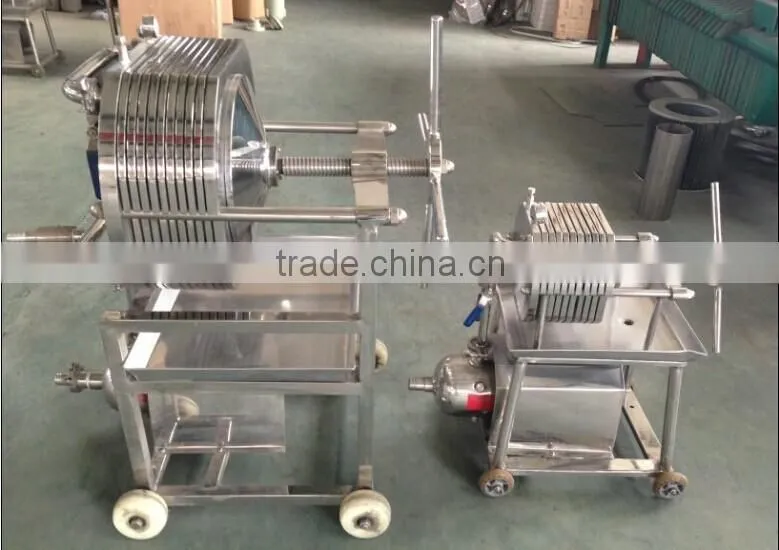

Product Detail Show

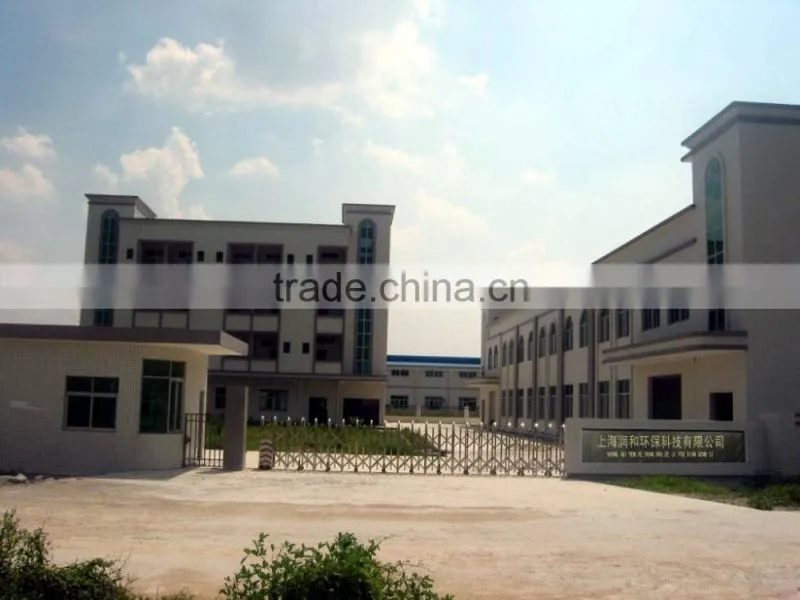

About Our Company
Shanghai Runlan Filtration Equipment Ltd. is a professional engaged in research, design, manufacture and sales of filtration equipment for the integration of Science&Technology entities of private joint-stock enterprise which founded in 2008. Registered capital 50 million, the existing 120 employees, annual turnover 50 million. Our trade-mark " Run-Lan" has become well-known brand in the industry.
Leading Products:
Bag Filter.
Candle Filter.
Automatic Filter.
Diatomaceous Earth Filter.
Centrifuges .
Cartridge Filter Precision Filter.
Filter Press.
And Other Filtration Equipment.

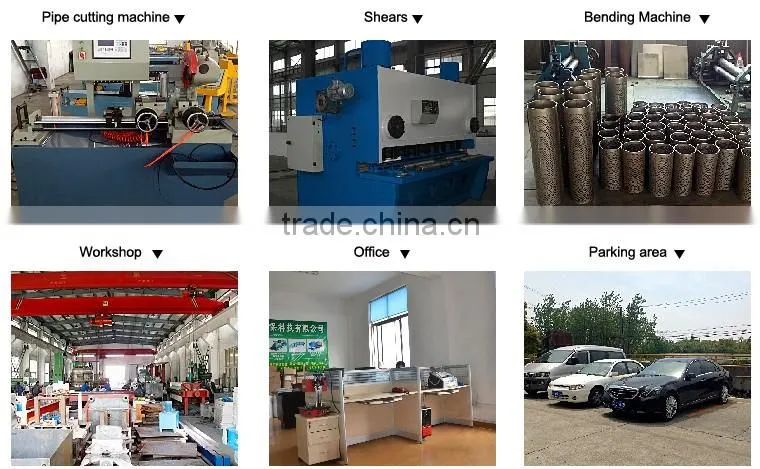

Factory Tour
Packing & Shipping
FAQ
1.Are you a factory?
Yes . We are a factory. And our factory is located in Shanghai,China.
2.Do you accept OEM?
Yes. We can manufacture ccording to your requirement.
3.What your MOQ?
One piece sample is OK, and more quantities ,more favorite price.
4.Warranty
For one year. In addition to artifical damage.
5.Terms and service
Trade terms: FOB,CIF, CNF.
Payment term: TT/LC at sight.
Loading port: Shanghai.
