Top Recommand Filter Element For Wholesale

Top Recommand Filter Element For Wholesale photo-1
Top Recommand Filter Element For Wholesale photo-2
Top Recommand Filter Element For Wholesale photo-3
US$ 0.01 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Efficiency:
99.99%
Construction:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Efficiency 99.99%
Construction Other
Place of Origin Shanghai, China
Brand Name Shanghai Runlan
Model Number Customer Request, 009
Certification ISO9001:2008
Our Company


Shanghai Runlan filtration equipment Co,Ltd. is a professional engaged in research, design, manufacture and sales of filtration equipment for the integration of Science & Technology entities of private joint-stock enterprise which founded in 2008. And, our trademark " Run-Lan " has become well-known brand in the industry.

Enterprises leading products are:

Bag filter, Cartridge filter precision filter, Candle filter, Automatic filter, Filter press, Diatomaceous earth filter, Centrifuges, and other filtration equipment.

For the convenience of the new and old customers, the company also design and customized non-standard filtration equipment, and with the most preferential prices to provide filter cloth, filter bag, filter cartridge, membrance filtration and other consumables, etc.

Main Filter Elements

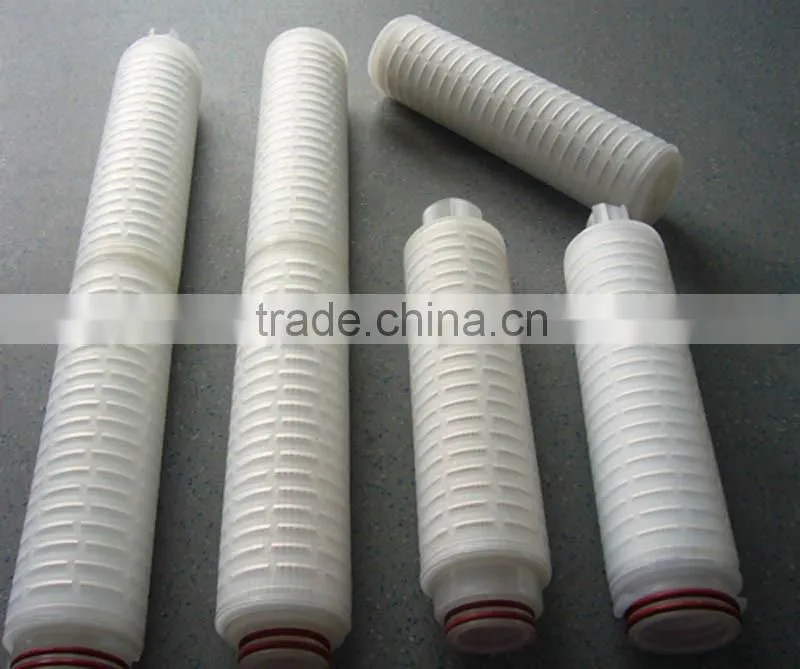

Folded Filter

Precision: 0.1-20um

Length: 10'',20'',30'',40''

Outer diameter: Ø70mm

Connector: plane, 222Plug-in, 226Plug-in

Material: PP, PES, MO, PEFE, BQ, FH

Filtration area: ≥0.65㎡

Maximum differential pressure: 25℃,at 0.40 Mpa

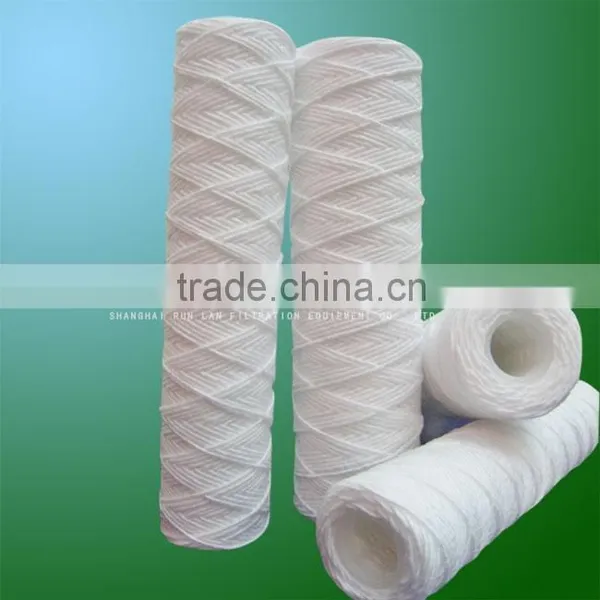

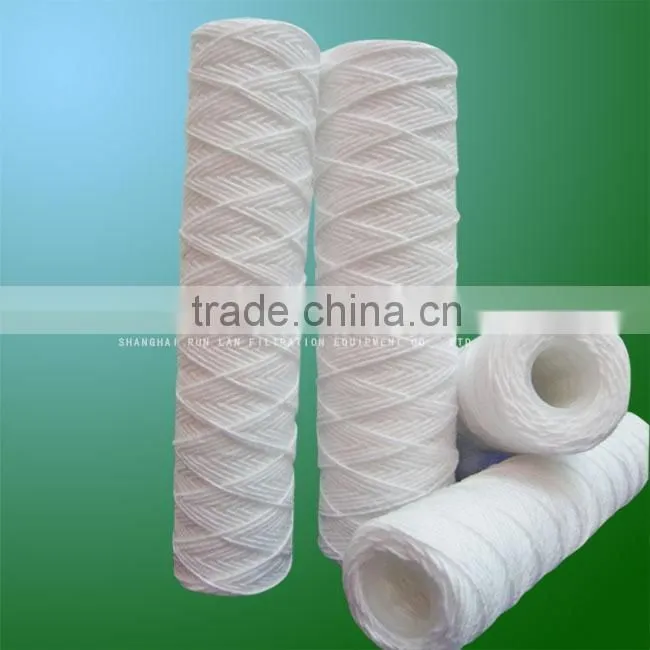

Wirewound  Filter
Precision: 0.22um-20um
Length: 5'',10'',20'',30'',40''
Outer diamater:  about Ø63.5mm
Inner diameter: Ø30mm,Ø28mm
Connector: plane, 222Plug-in, 226Plug-in
Max temperature: 180℃
Maximum differential pressure: 0.4Mpa
PH value: 1-13
Design flow: >600L/H (10'')


Meltblown Filter

Precision: 0.22um-20um

Length: 5'',10'',20'',30'',40''

Outer diameter: about Ø63.5

Inner diamater: Ø30mm Ø28mm

Connector: plane, 222Plug-in, 226Plug-in

Max temperature: 80℃

Maximum differential pressure: 0.4Mpa

PH value: 1-13

Design flow: >500L/H (10'')

Material: PP,MO, PE

Large Flow Filter

Precision: 0.2um-150um

Length: 20'',40'',60''

Outer diameter: Ø152.4mm

Connector: plane, 222Plug-in, 226Plug-in

Maximum differential pressure: 0.245Mpa

Max temperature: 80℃

Design flow: >18m³/H (20'')

More details
Our filter material and accessories
1. Options Easy operation, high economic efficiency bag filter.
2.Each bag has a separate locking device ensure good seal between the bags and filter.
3.Positive sealing arrangement to avoid leakage.
4.ASME Designs standard.
5.Multiple bag filter is from 3 bags to24 bags.
6.Applicant: Large flow rate and large particle field.

JIS/DIN/ANSI flange connection
- Heating jacket for high viscosity liquid
-Flexible inlet/ outlet orientation
-SS304/ SS316L material available
Design Advantages
Floating ball makes bag changing easy.

Magnetic bar adsorb metallic particle.

Mesh basket can replace the filter bag .
Applications
Chemical / Pharmaceutical / Food & Beverage / Paint / Automotive Coating / Oil Refinery / Marine / Water Treatment.
Product Packing
Our Certifications



Related Products

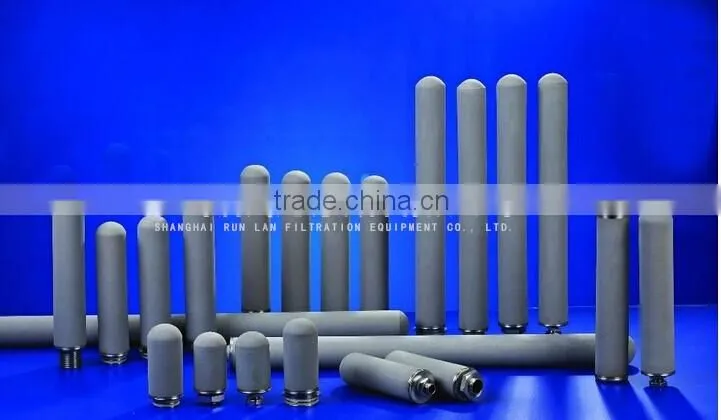

Hot Titanium Rod Filter

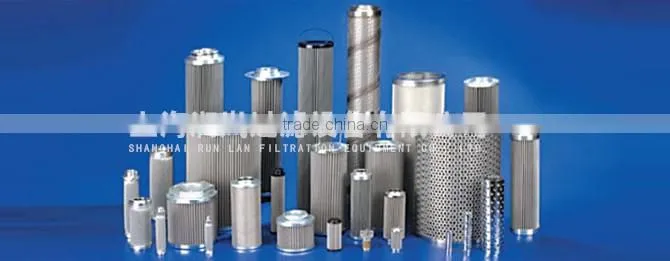

 High Quality Stainless Steel Filter

        PE &PA  Pipe Filter
If you are interested in our products, please contact us at your convenience.
Tel: 021-37595596  37595597  37595598
Fax: 021-51686627

Warmly welcome new and old cusomers and friends to visit the enterprise and guidance of business community here!
